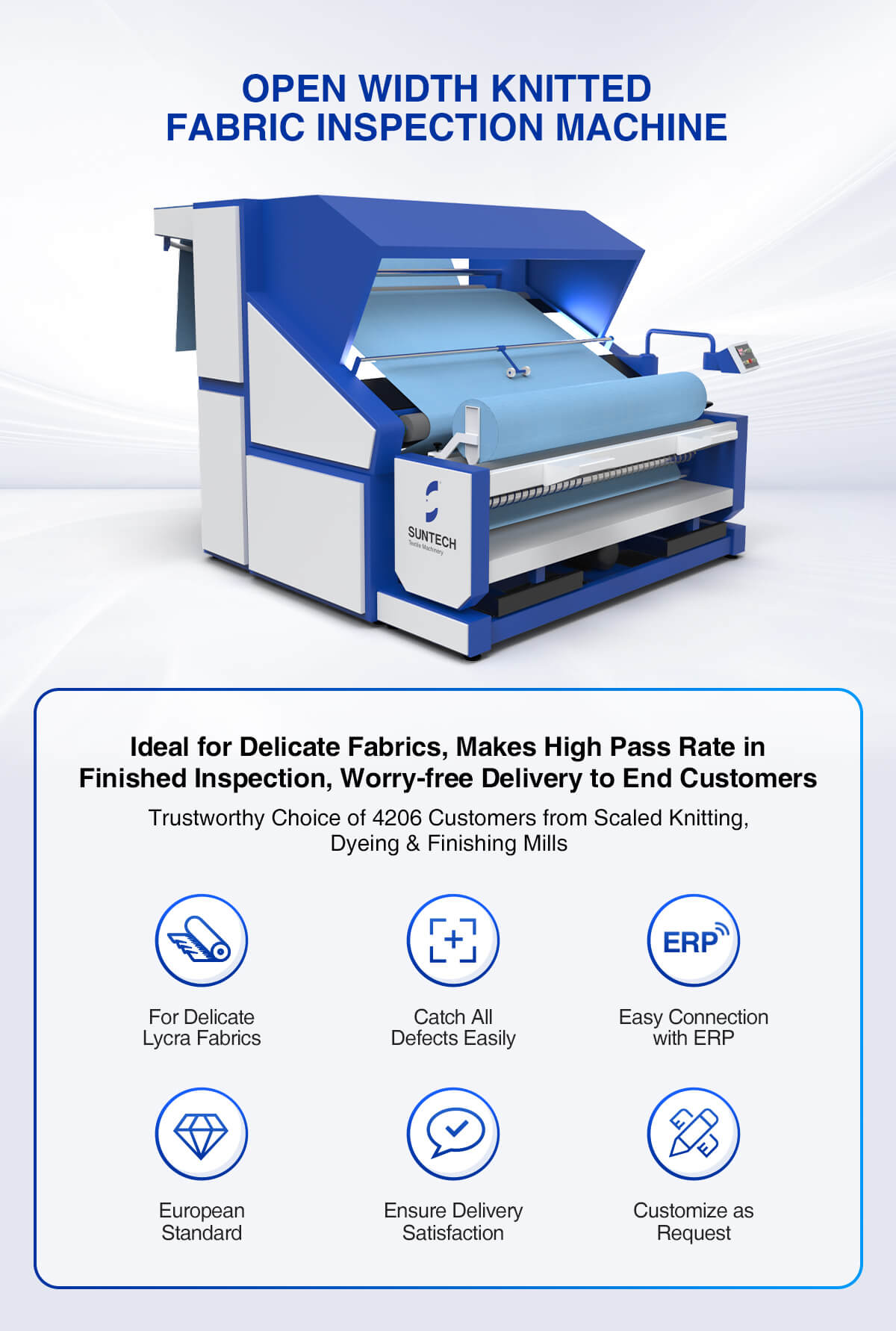

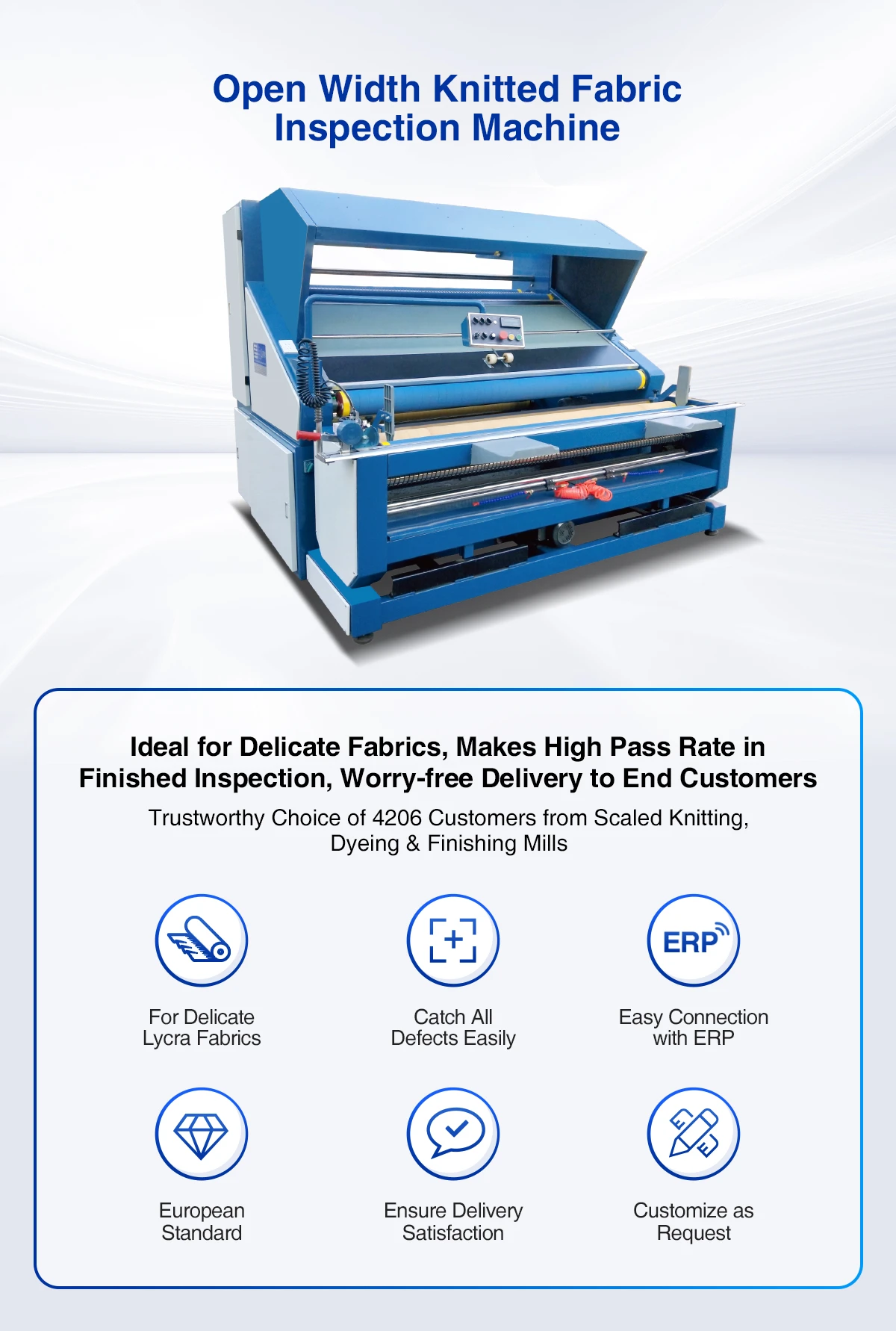

ST-KFIM-01/02/03/04

FABRIC INSPECTION TABLE FOR KNITS
( IDEAL FOR TENSIONLESS CHECKING )
Fabric Inspection Table with optional data collection and analysis system(4-point system) to handle a wide range of fabrics, from tension-sensitive elastomericand lycra fabrics to stable woven

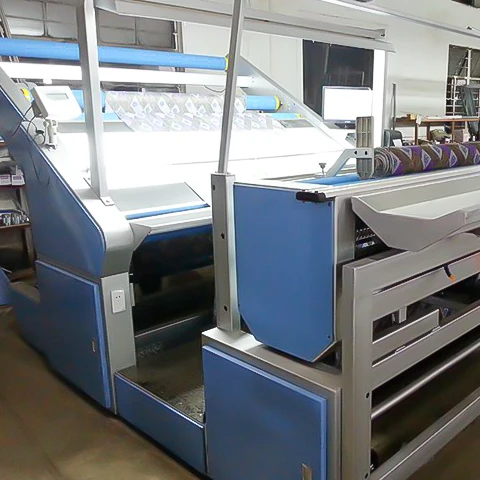

ST-KFIM Fabric Inspection Table for Knits with optional data collection and analysis system(4-point system) to handle a wide range of fabrics, from tension-sensitive elastomeric and lycra fabrics to stable woven, technical and upholstery materials. This machine can be supplied to operate fromplait/loose fabrics to roll, or with various other fabric inletand outlet options.

● Ergonomically designed
● Fast and easily handled, requiring for one operator only
● Improve fabric quality
● Synchronize production process
● Provide objective quality reporting
● Reduce administration

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

AUTOMATIC CAMERA INSPECTION SYSTEM COULD BE INSTALLAED ON FABRIC INSPECTION MACHINES.

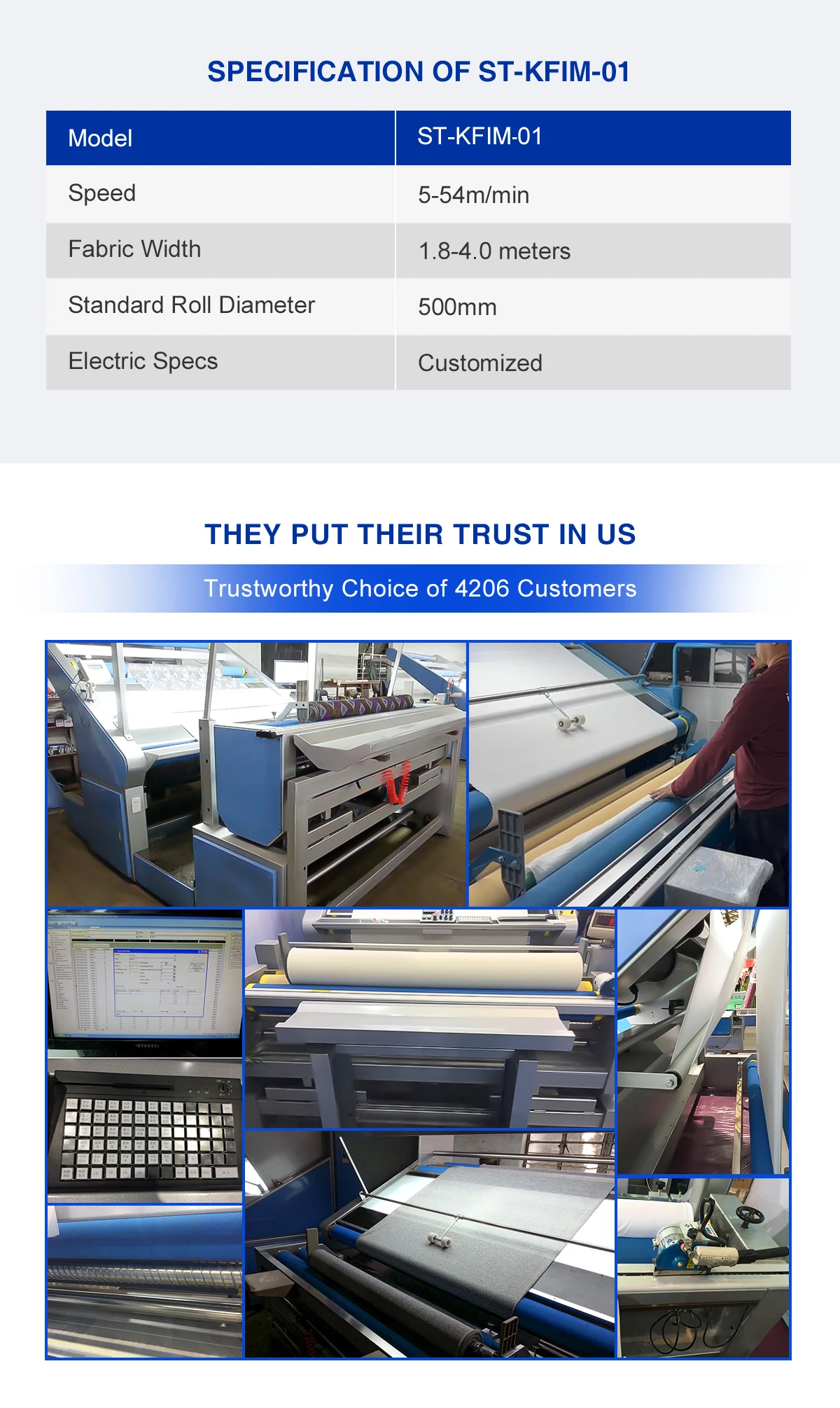

Speed: 5 - 54 m/min
Fabric Width: 1.8 - 4.0 meters
Standard Roll Diameter: 500mm
Dimensions(LXWXH): 3300X3100X2000mm (for model ST-KFIM-260 only)
Weight: 1550kgs (for model ST-KFIM-260 only)
Electric Specs: 3Phase - 380V; 50HZ (can be adjusted to suit for different countries)
Remark: Variable working width is possible and can be tailor-made to your requirements of processing needs.

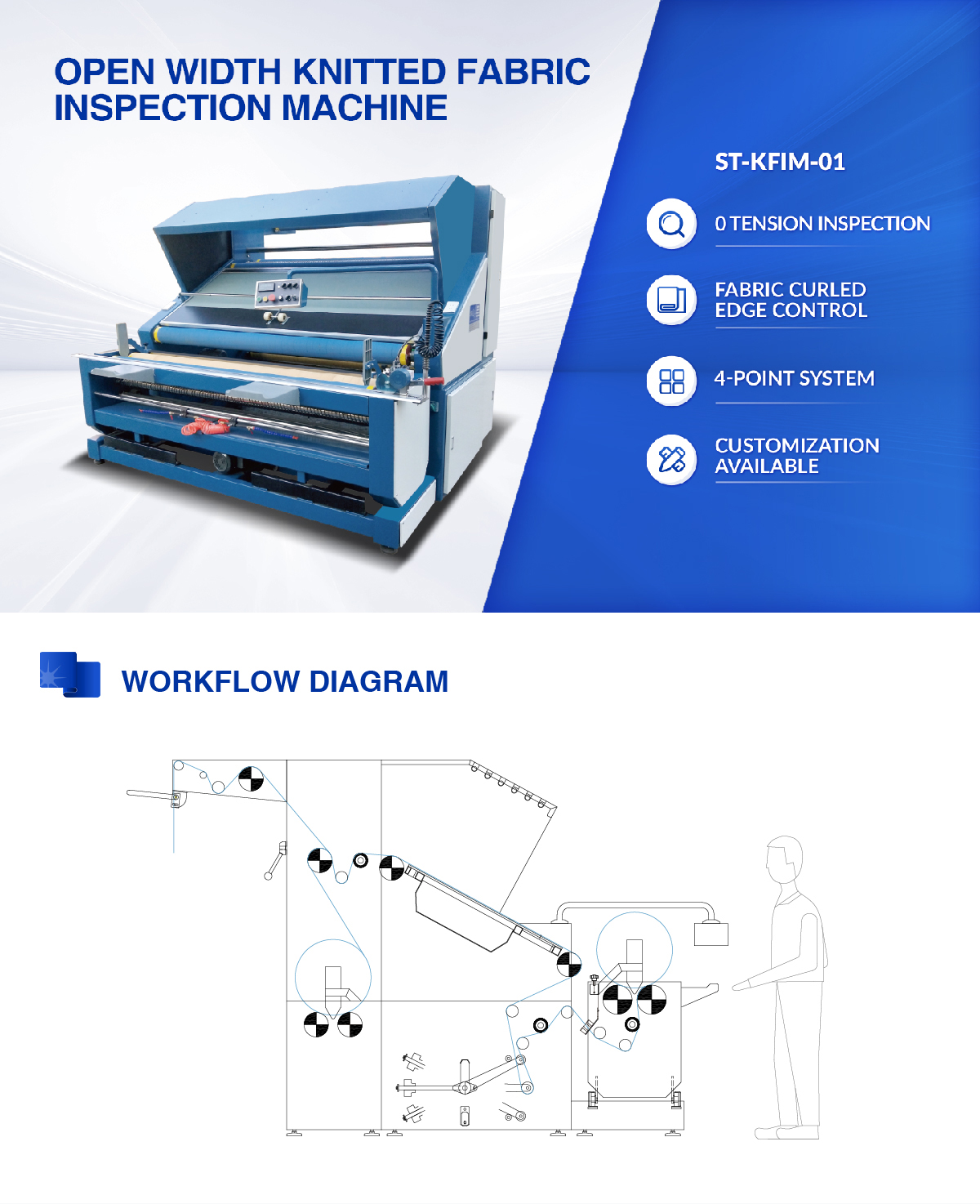

ST-KFIM-01 Fabric Inspection Table for Knits



ST-KFIM-02 Grey Fabric Slitting & Inspection Table

Suitable for Knitted Fabrics, Input from Tubular Fabrics and Output from Open Width Knitted Fabric in Rolls.



ST-KFIM-03 Fabric Inspection Table for Knits

Suitable for Knitted Fabrics with Versatile Fabric Input and Output forms,especially for tensionlessly checking Fabrics from Roll/Plait to Roll/Plait.



ST-KFIM-04 Fabric Inspection Table for Knits

Suitable for continuous fabric checking. Big Batches are driven by Center Drive System with no contact to output in small rolls.

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

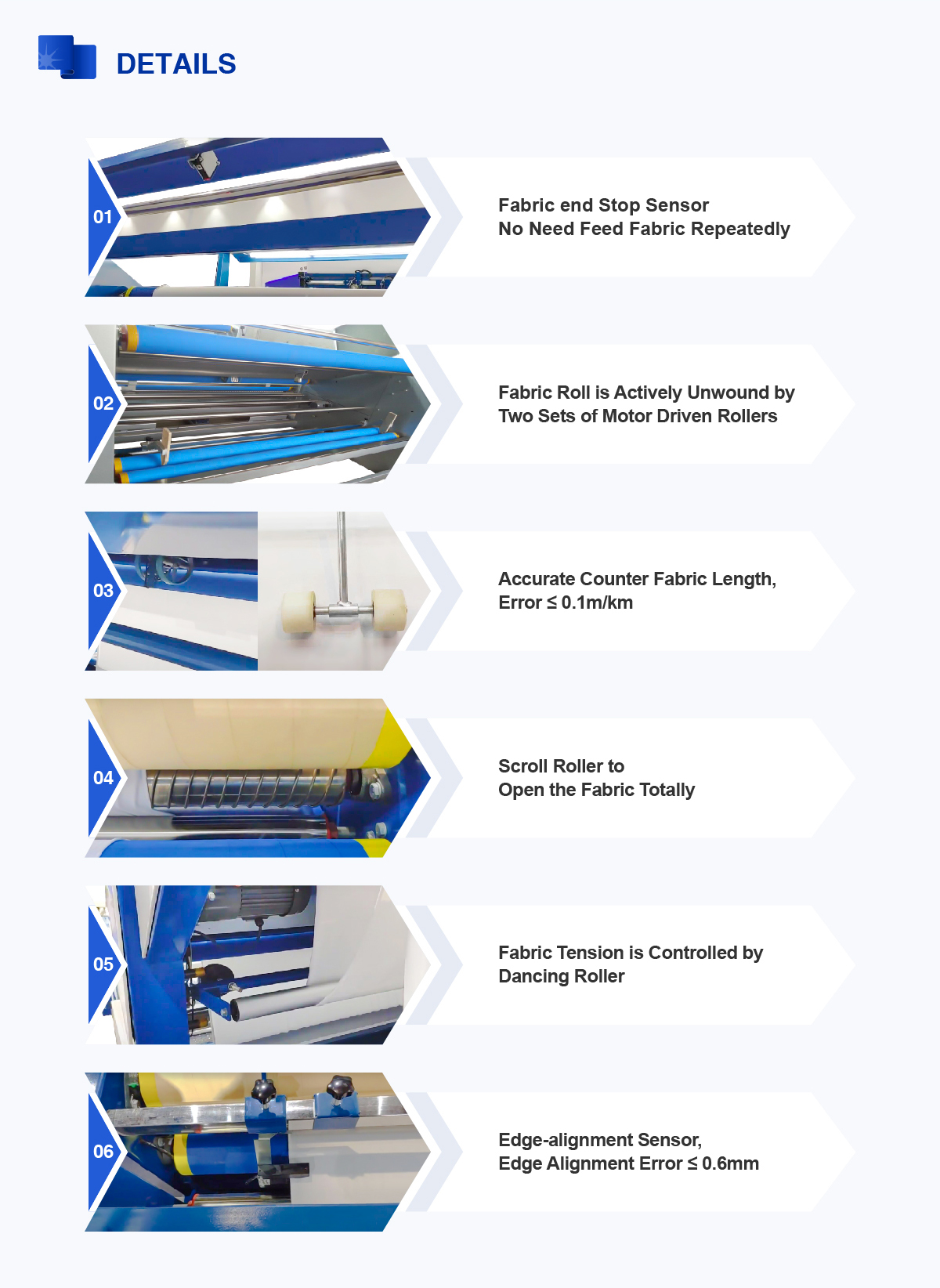

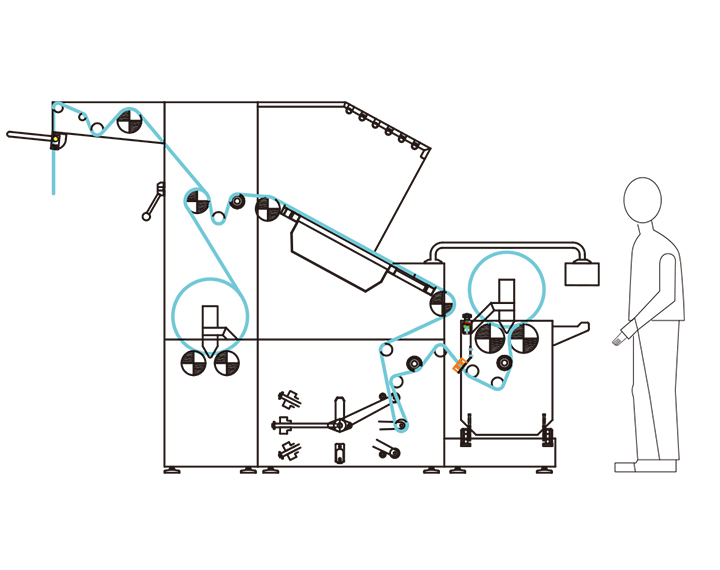

1). Low Tension Fabric Delivery and Speed Synchronization
Unique mechanical and electric device combination for making fabric feeding, delivering and re-winding synchronous.

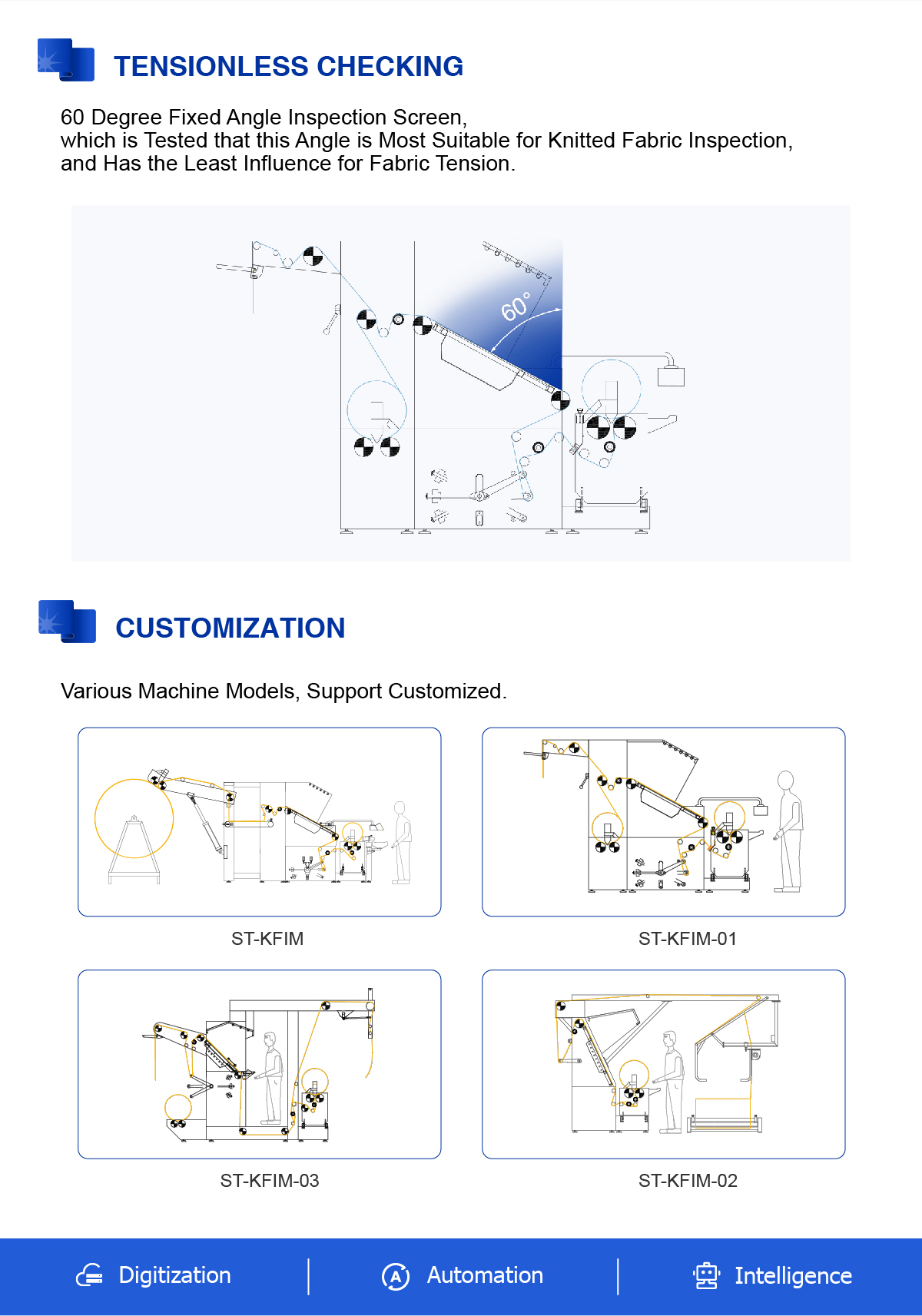

2). Full Width Fabric Inspection - with 60 Degree Fixed Angle Inspection Screen
Fabric can be checked under the aid of different viewing and lighting options.



3). Accurate Fabric Length and Optional Weighing Machine
Fabric roll length and weight can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments.

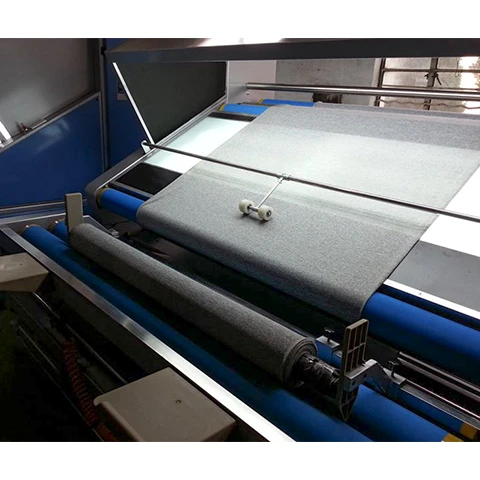

4). Stretch Fabric Control - with Scroll Roller System and De-curling System
Fabric controlled from input to electro/pneumatic edge guilding system for perfect roll generation.



5). Consistent Roll Output - with Twin Rewinding Roller and Roll Hardness Adjustment
Processed rolls are rewound with the minimum amount of tension and are consistent from roll to roll.

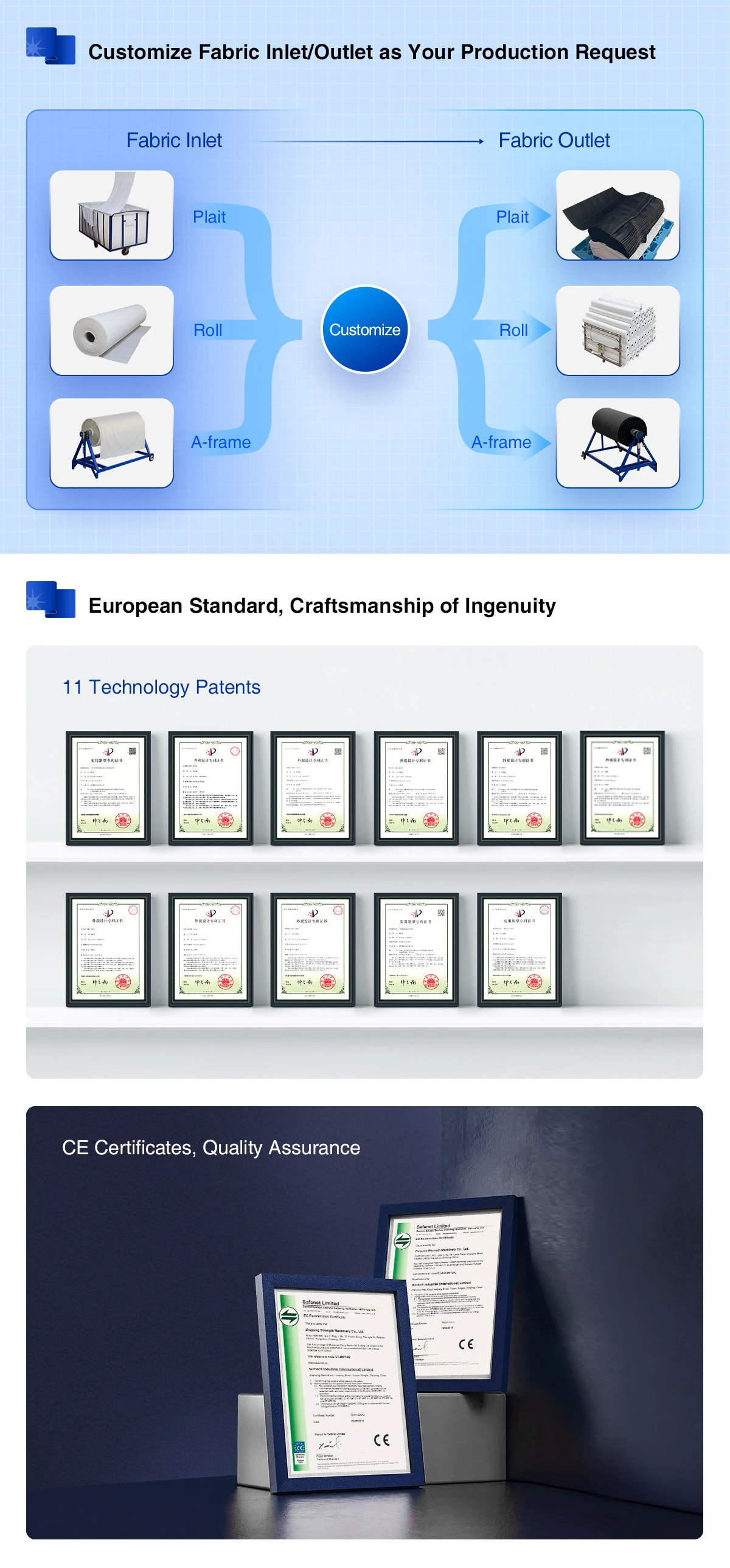

6). Versatile Fabric Input and Output Options - Synchronize with Other Production Operations
Optional systems are available for different fabric input and output presentations, roll to roll, continuous fabric input and plait input and output.



7). Pneumatic Roll Ejection Device - Optional
Heavy produced rolls can be pushed by the pneumatic cylinder arms so as to save labour power.



8). Data Collection and Analysis System (4-point System) - Optional
100% fabric inspection with software for accurate fabric roll analysis and printout.



9). Linear Fabric Roll End Cutter - Optional
Full width cutting at the end of processed roll, fast and accurate.
