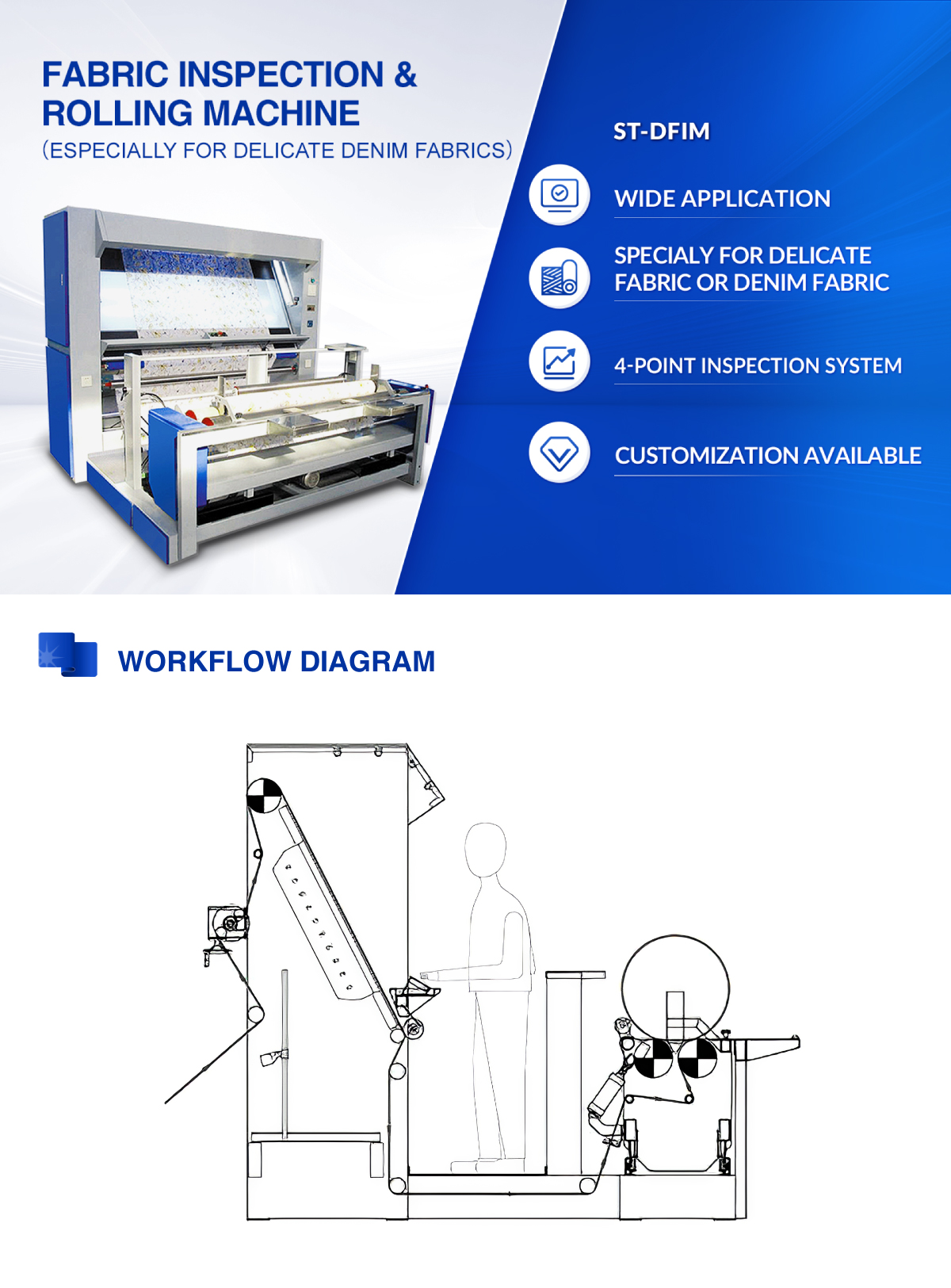

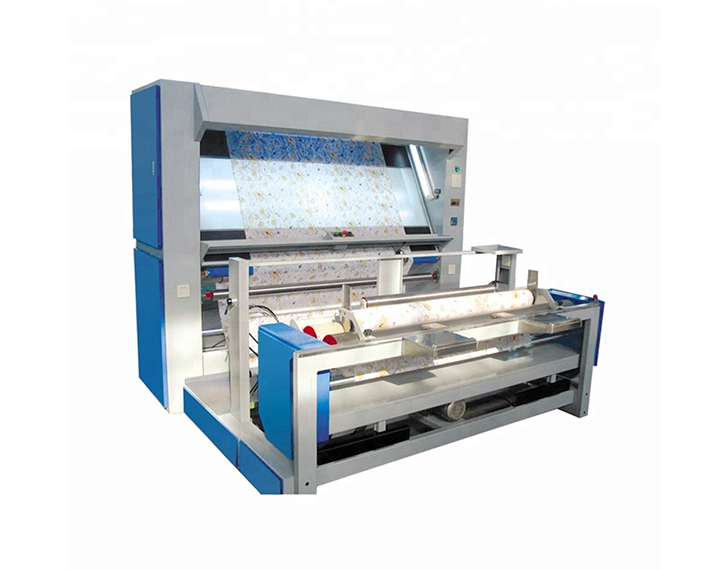

ST-DFIM Fabric Inspection & Rolling Machine


Fabric Inspection & Rolling Machine

( Especially for Delicate Denim Fabrics )

Fabric Inspection & Rolling Machine with optional datacollection and analysis system (4-point system) to handle a wide range of fabrics

ST-DFIM Fabric Inspection & Rolling Machine with optional data collection and analysis system (4-point system) to handle a wide range of fabrics, especially for denim fabrics. This machine can be supplied to operate from plait/loose fabrics to roll, or with various other fabric inlet and outlet options.


● Ergonomically designed
● Fast and easily handled, requiring for one operator only
● Improve fabric quality
● Synchronize production process
● Provide objective quality reporting
● Reduce administration


Automated Camera Inspection System.Could Be Installed on Fabric Inspection Machines.

Newly Developed Automatic Fabric Inspection (camera), Labeling, Cutting, Taping & Packing M/c.

Continuously Online Automatic Fabric Inspection and Packing Machine with Coveryors;





0 - 60m/min

Fabric Width

1.8 - 4.0 meters

Standard Roll Diameter





(for model ST-DFIM-200 only)



(for model ST-DFIM-200 only)

Electric Specs

3Phase - 380V; 50HZ

(can be adjusted to suit for different countries)


Remark:Variable working width is possible and can be tailor-made to your requirements of processing needs.


ST-DFIM Fabric Inspection & Rolling Machine:

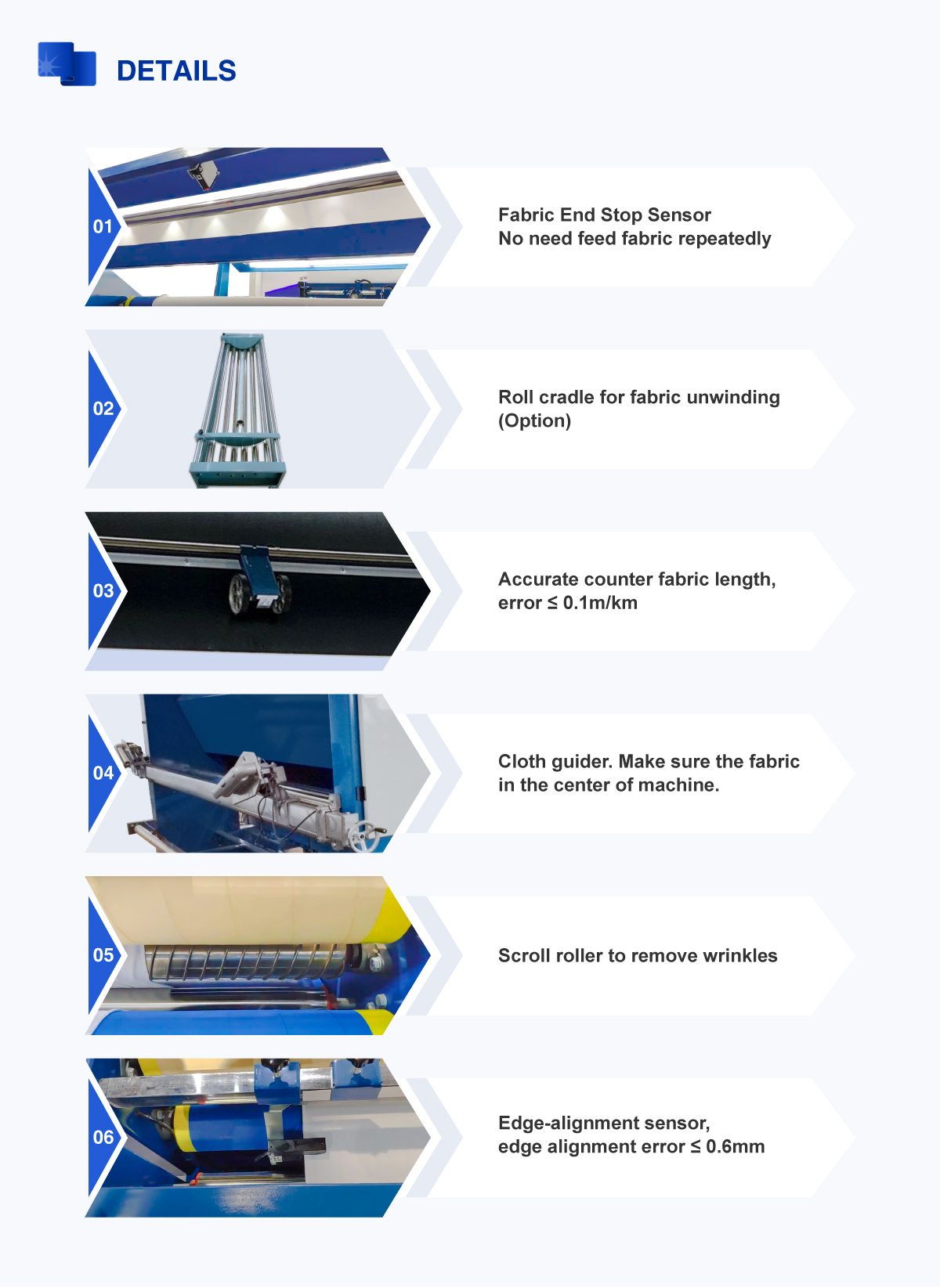

 1). End of Fabric Roll Automatic Stop Sensor - for Next Roll Joining

This will allow for continuous fabric inspection, from one piece of roll to next.


2). Full Width Fabric Inspection - with 30 Degree Fixed Angle Inspection Screen
Fabric can be checked under the aid of different viewing and lighting options.


3). Accurate Fabric Length and Optional Weighing Machine
Fabric roll length and weight can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments.


4). Accurate Fabric Edge Controlling
Edge alignment photo-sensor for perfect roll generation.


5). Consistent Roll Output - with Twin Rewinding Roller and Roll Hardness Adjustment
Tight rolls are rewound on first quality Rubber Roller & Stainless Steel Roller, especially ideal for Denim Fabircs.


6). Auto Adjustable Tension
Automatic adjustable tension of fabrics when inspecting and rewinding.


7). Pneumatic Roll Ejection Device
Heavy produced rolls can be pushed by the pneumatic cylinder arms so as to save labour power.

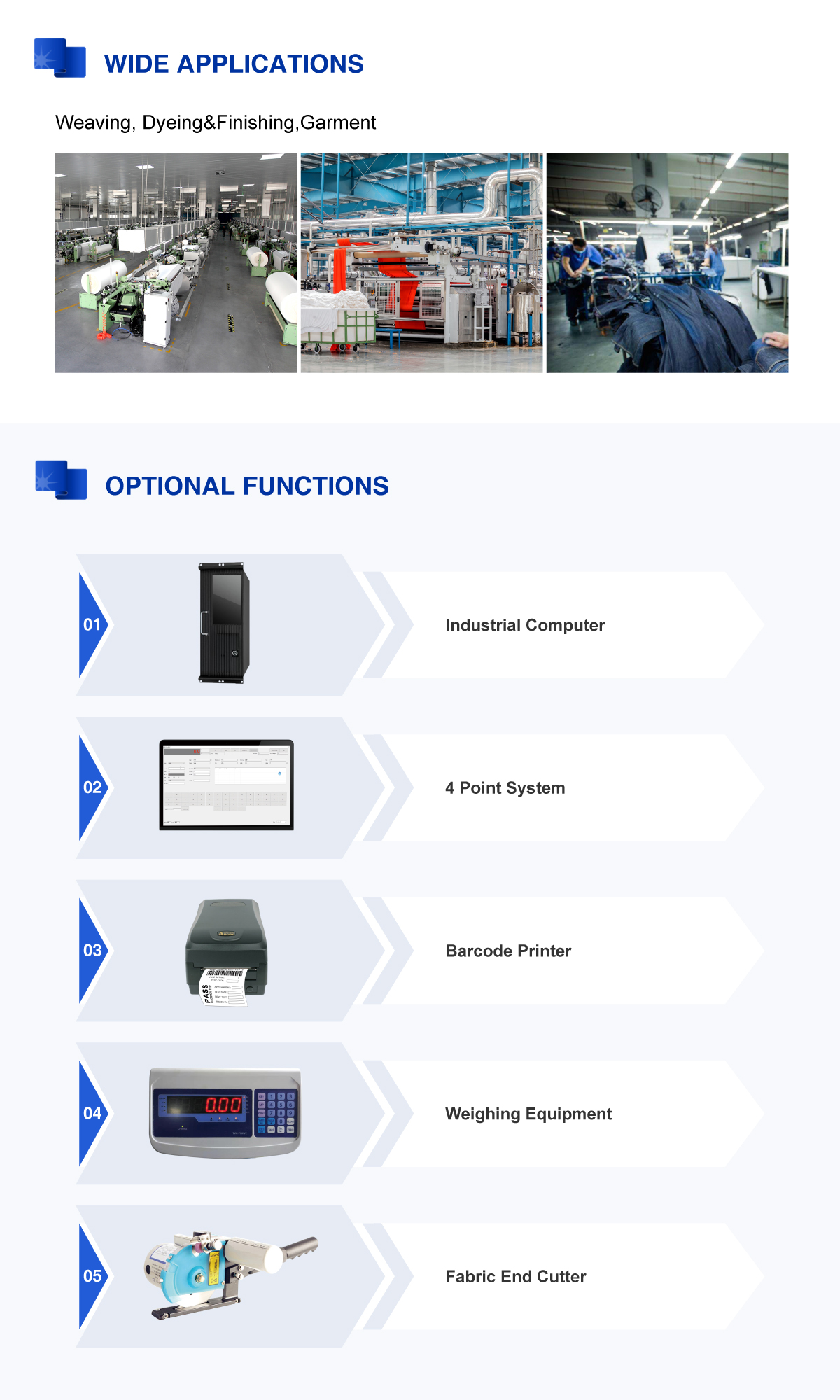

8). Data Collection and Analysis System (4-point System) - Optional
100% fabric inspection with software for accurate fabric roll analysis and printout.


9). Linear Fabric Roll End Cutter - Optional
Full width cutting at the end of processed roll, fast and accurate.
