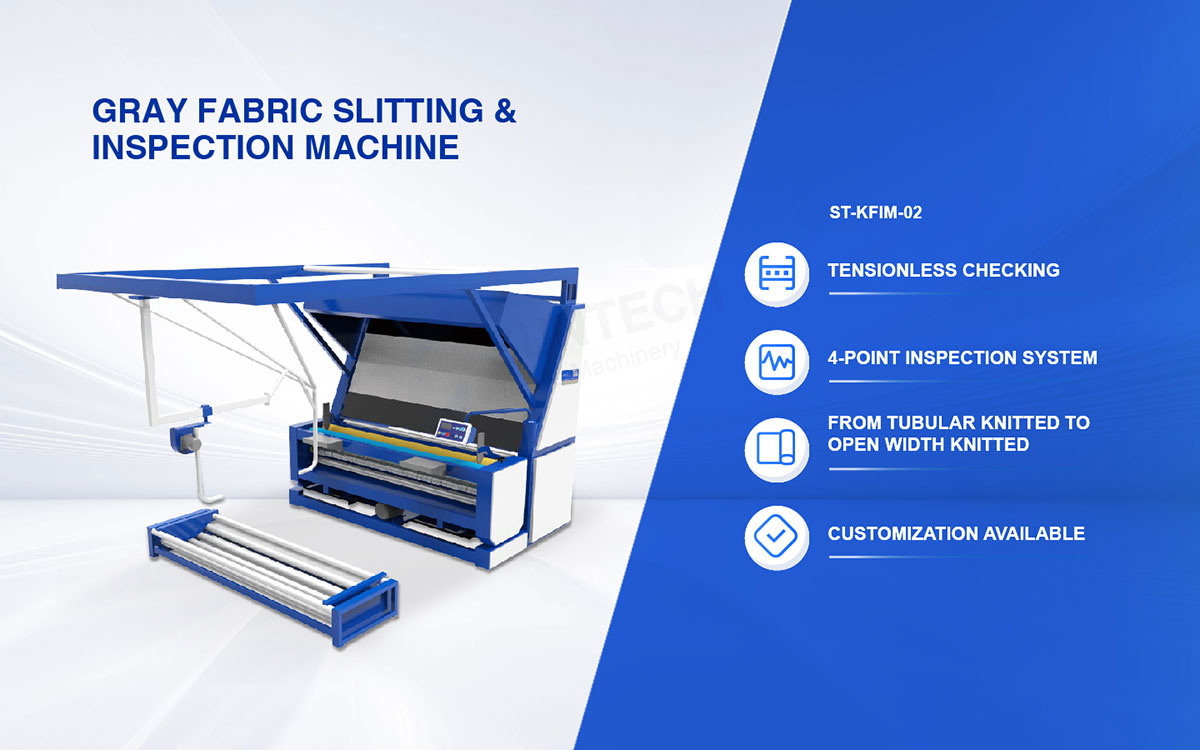

Gray Fabric Slitting & Inspection Machine

ST-KFIM-02

Tubular Gray Fabric Slitting & Inspection Machine

( For Tubular Grey Fabrics )

Auto Tensionless Checking!
Curled Edges Controlling!
0 Tension for Gray Fabric!
Slit & Inspect in One Machine!
Customization as Your Demands!

Tubular Gray Fabric Slitting & Inspection Machine features

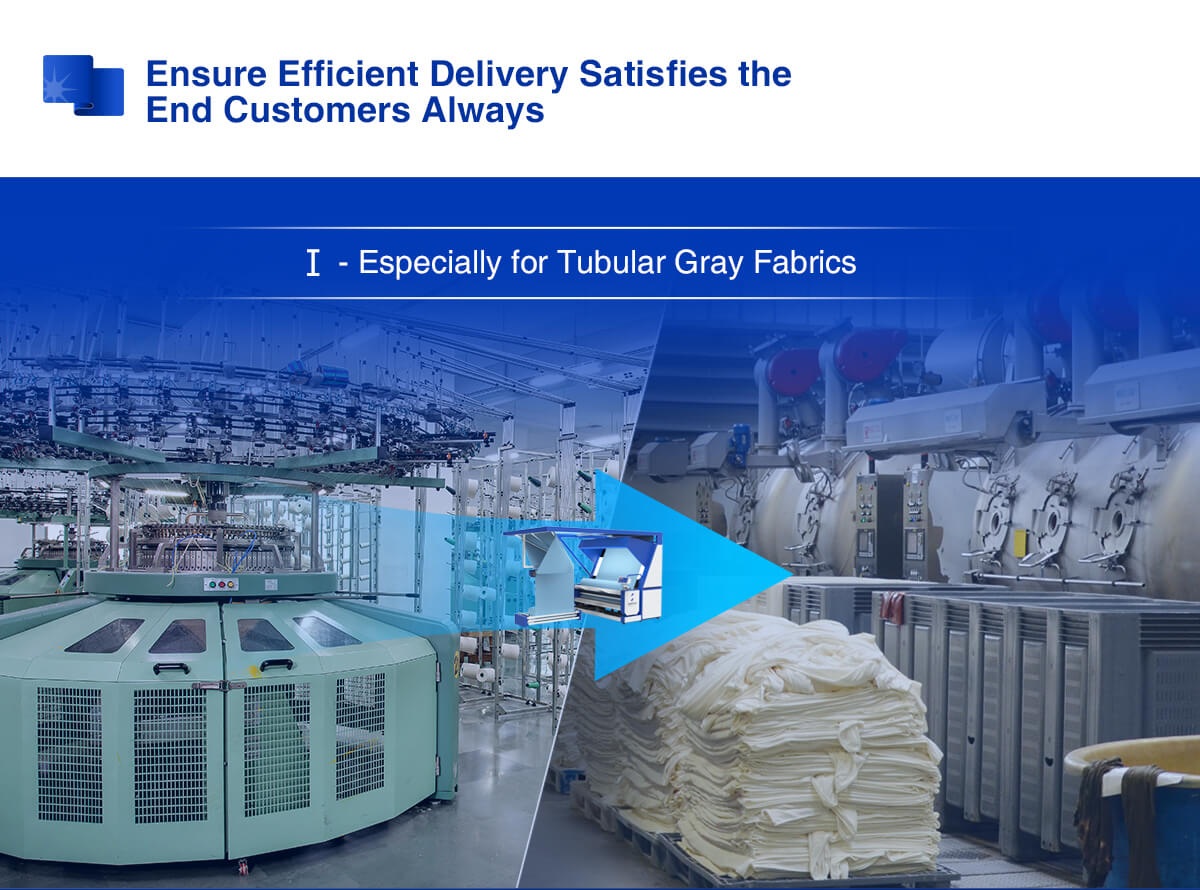

Inspection Machine especially for tubular gray fabric

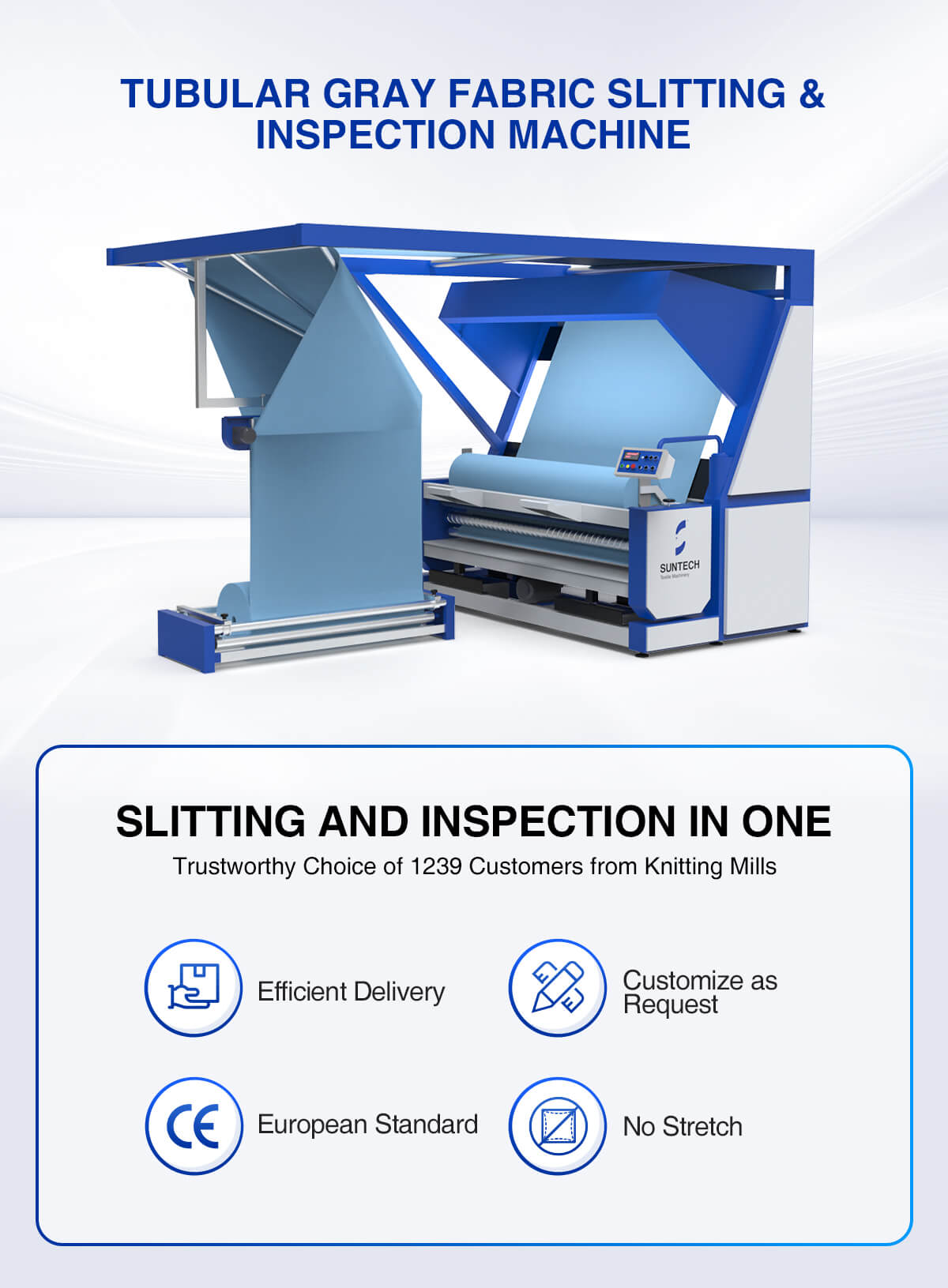

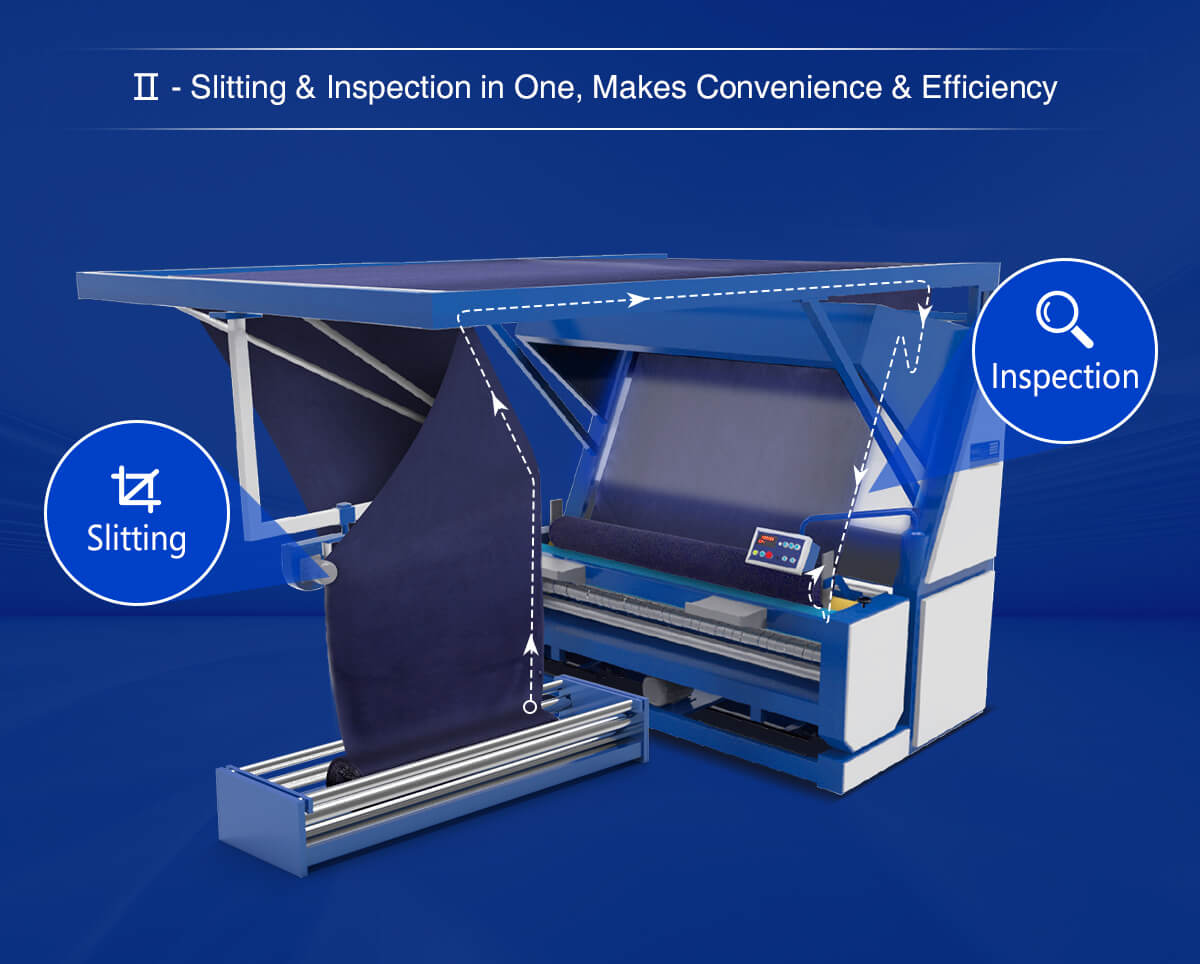

Tubular Gray Fabric Slitting & Inspection in one

Tubular Gray Fabric Slitting & Inspection Machine no curled edges/no edge untidy/no stretch

Tubular Gray Fabric Slitting & Inspection Machine customized fabric width

Tubular Gray Fabric Slitting & Inspection Machine specification

SPECIFICATIONS


Model

ST-KFIM


Speed

5 - 40m/min


Fabric Width

1.8 - 4.0 meters


Weight

1350kgs

(for model ST-KFIM-220 only)


Standard Roll Diameter

500mm


Dimensions(L*W*H)

4300*2700*2000mm

(for model ST-KFIM-220 only)

Remark:Variable working width is possible and can be tailor-made to your requirements of processing needs.

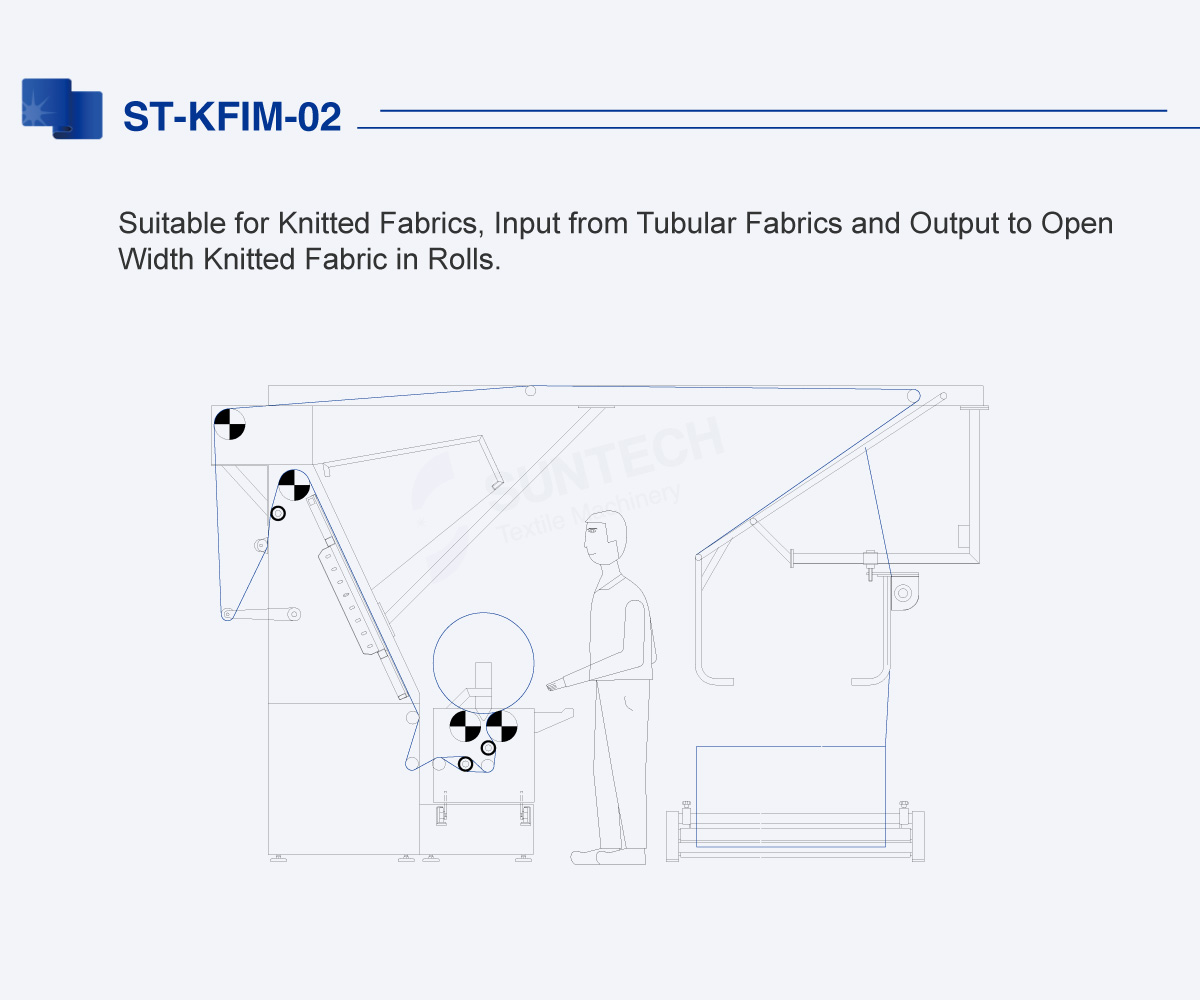

ST-KFIM-02 is Suitable for Knitted Fabrics, Input from Tubular Fabrics and Output to Open Width Knitted Fabric in Rolls.

Main Functions of ST-KFIM-02

1. Auto Tensionless Checking

The Unique Mechanical and Electrical Device Combination, Making Fabric Feeding, Delivery and Rewinding Synchronous;

2. Full Width Fabric Inspection

60 Degree Fixed Angle Inspection Screen Design Provide You with Multi-vision of Fabric Checking;

3. Curled Edges Controlling

The Scroll Roller System and De-curling System for Perfect Roll Generation;

4. Accurate Length Counting(Y/M) & Fabric Edge Controlling

Counting Error ≤0.1m/km, Edge Alignment Error ≤6mm;

5. Consistent Roll Output

Roll hardness adjustable.

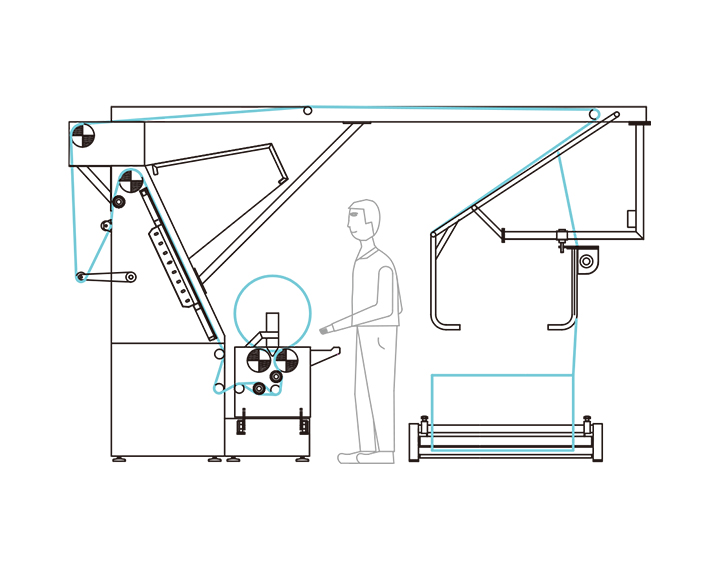

gray fabric slitting inspection machine

Contact Us Now to Get Your Custom Solution!
Call Our Expert Sales Directly 0086-571-86597552
