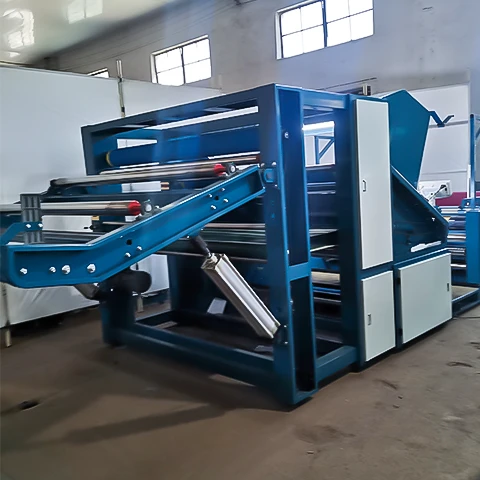

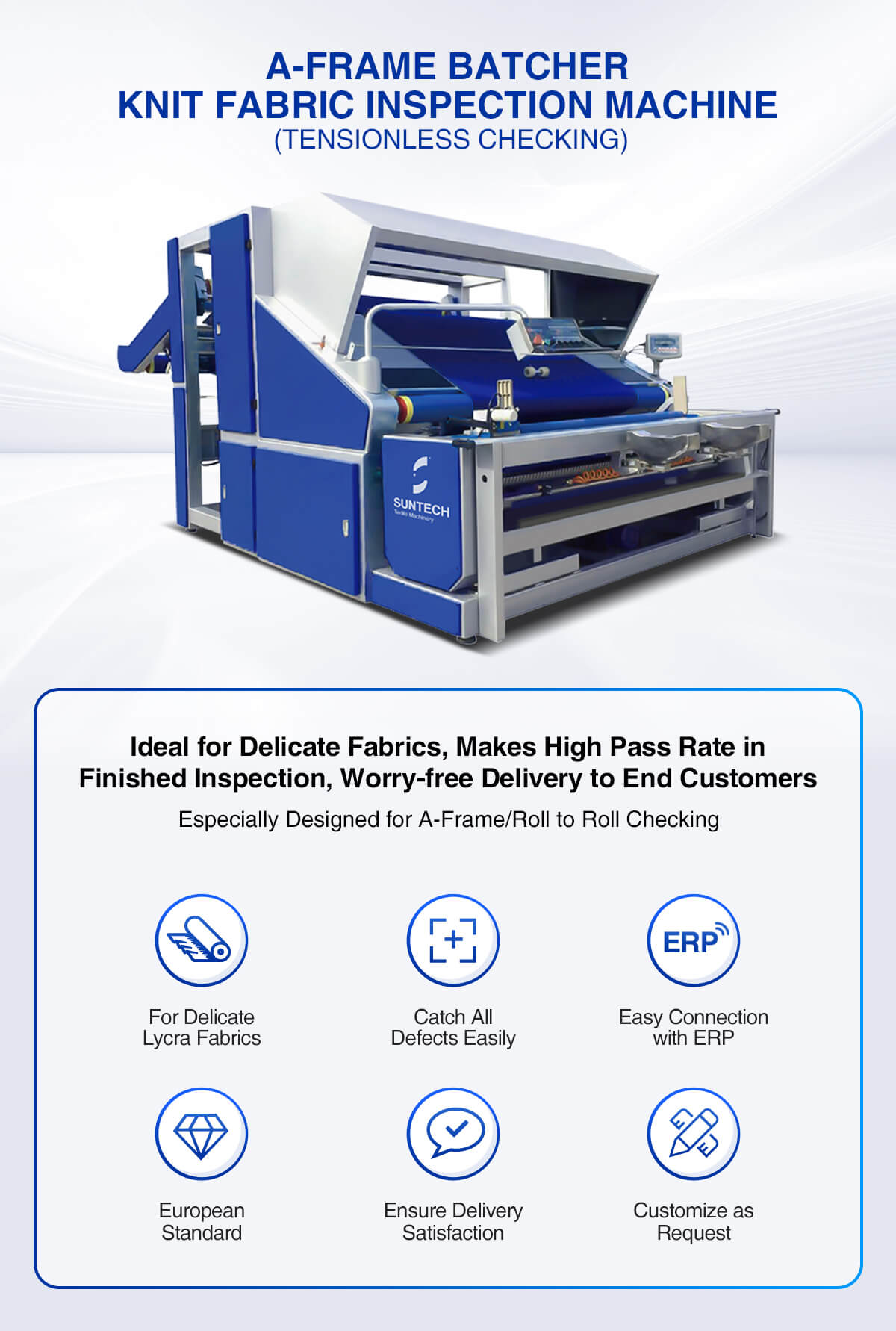

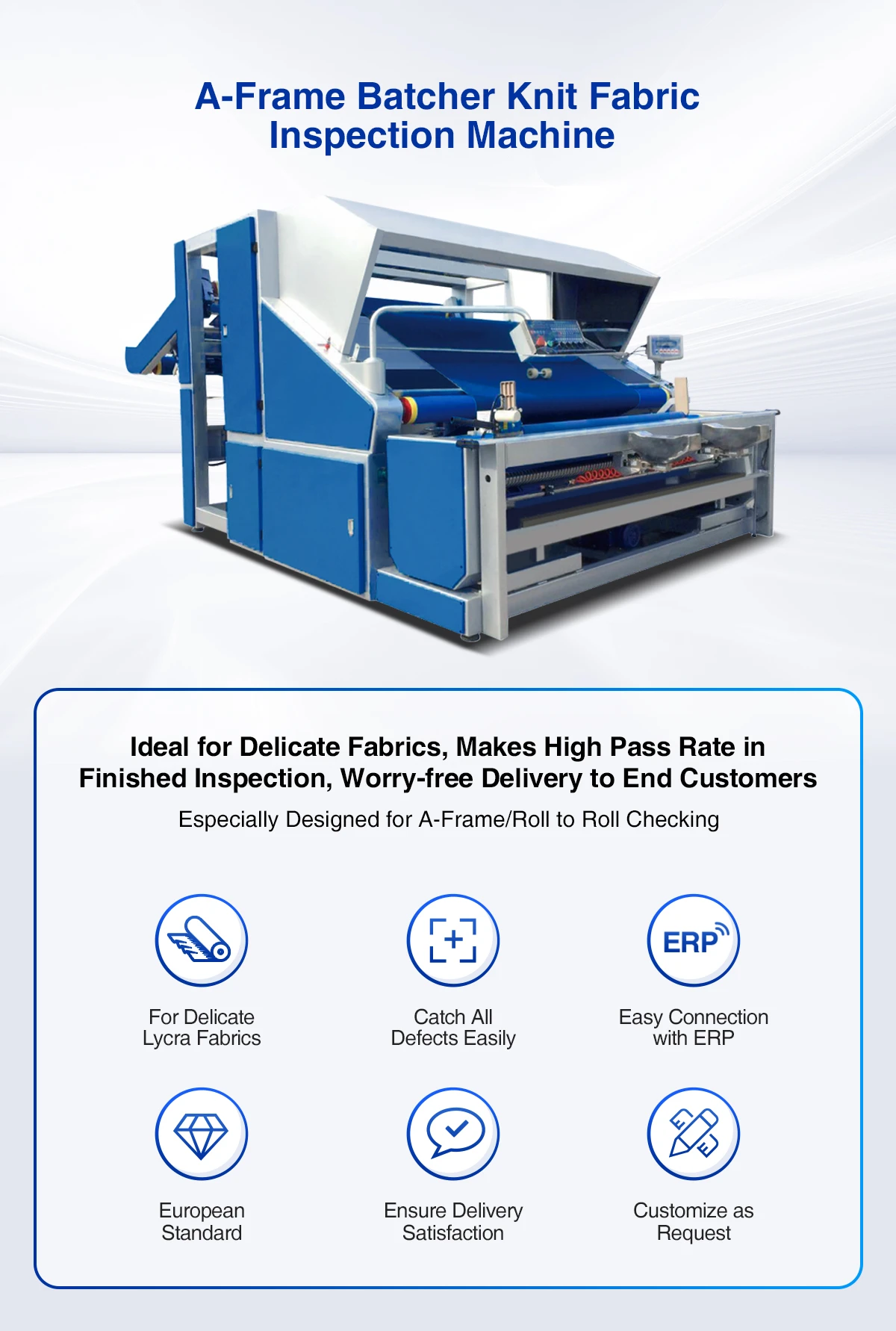

KNITTED FABRIC INSPECTION MACHINE

ST-KFIM

KNITTED FABRIC INSPECTION MACHINE

( TENSION-LESS CHECKING )

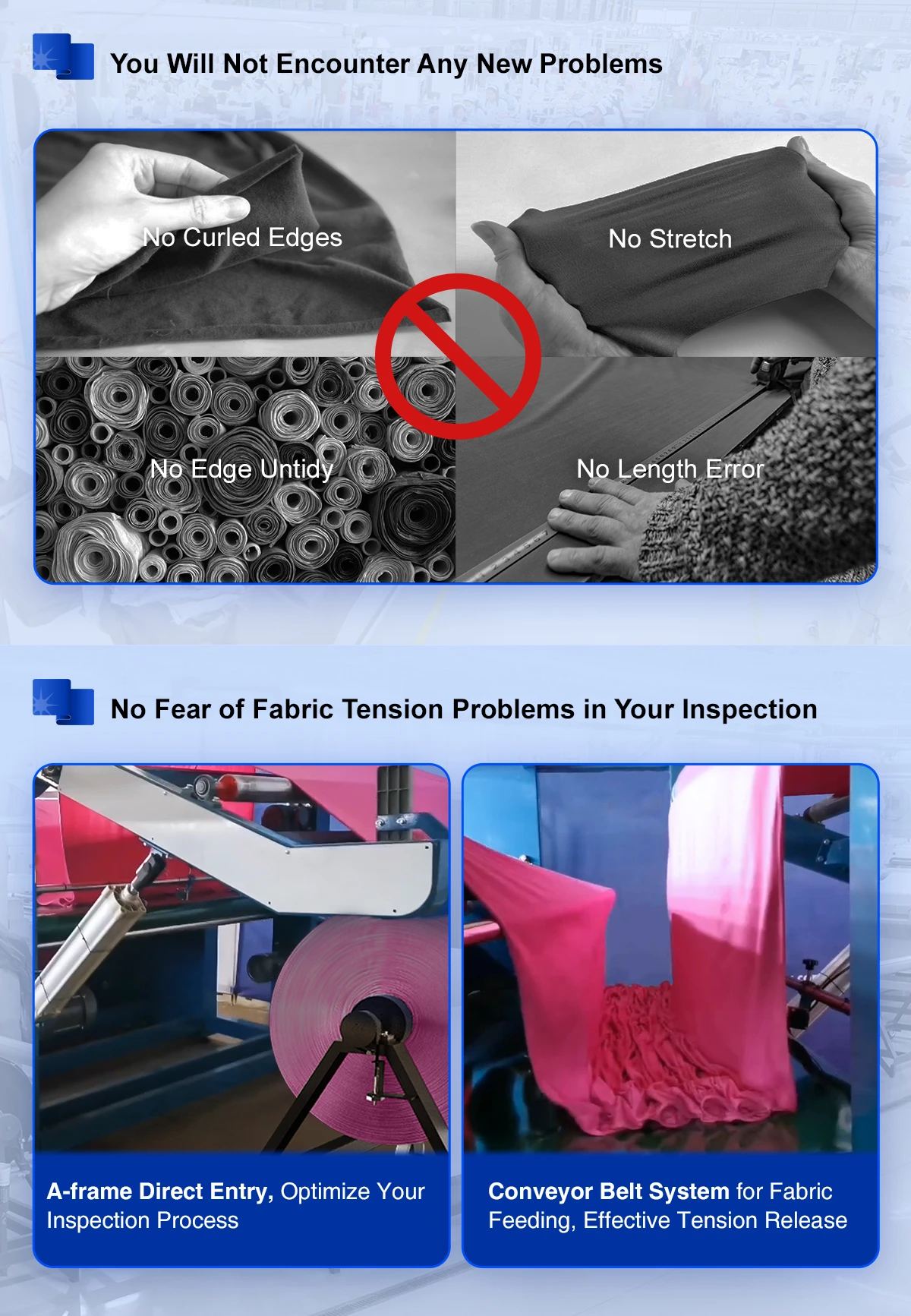

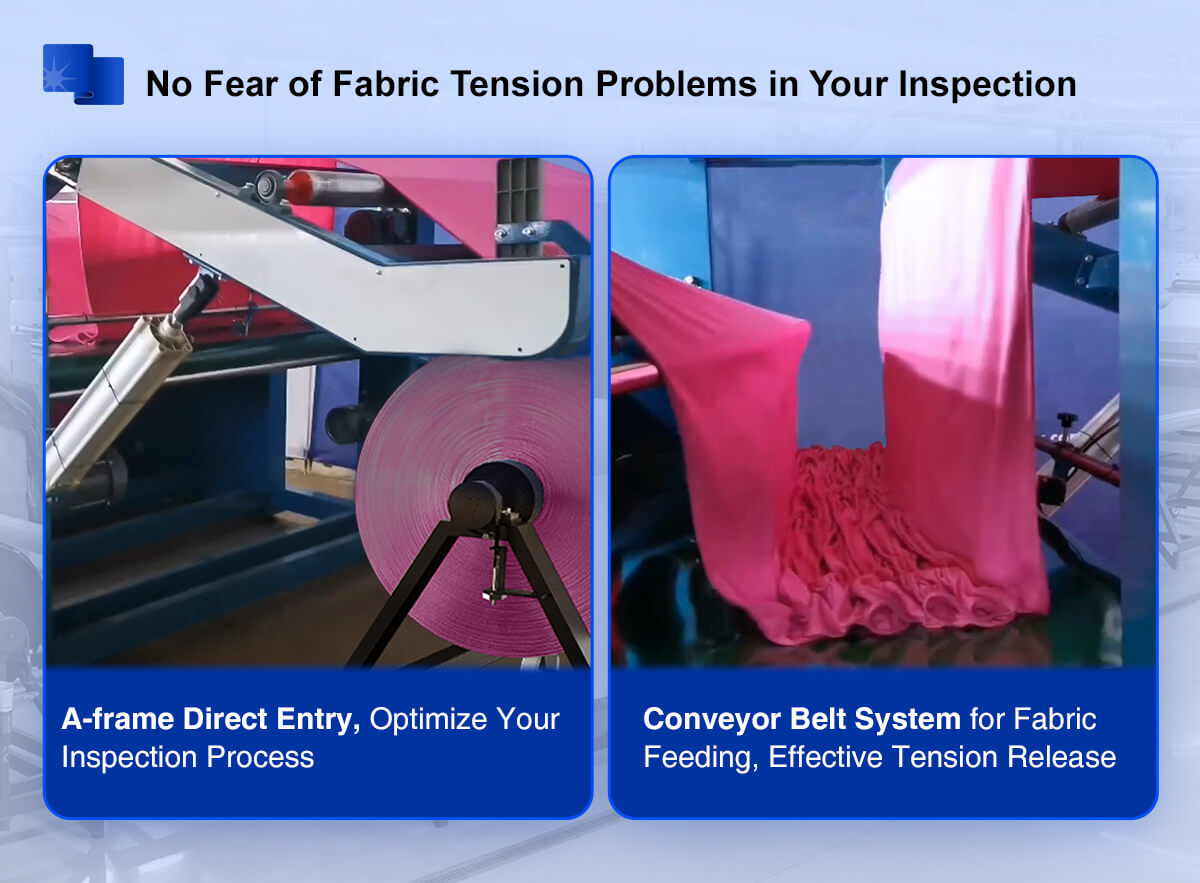

ST-KFIM Knitted Fabric Inspection Machine is suitable for a wide range of fabrics, from tension-sensitive elastomeric and lycra fabrics to stable woven,technical and upholstery materials; especially designed for A-frame entry with Conveyor Belt System.

ST-KFIM Knitted Fabric Inspection Machine is suitable for a wide range of fabrics, from tension-sensitive elastomeric and lycra fabrics to stable woven,technical and upholstery materials; especially designed for A-frame entry with Conveyor Belt System.



● Fast and easily handled, requiring for one operator only
● Improve fabric quality
● Synchronize production process
● Provide objective quality reporting
● Reduce administration



AUTOMATED CAMERA INSPECTION SYSTEM COULD BE INSTALLED ON FABRIC INSPECTION MACHINES.

NEWLY DEVELOPED AUTOMATIC FABRIC INSPECTION (CAMERA), LABELING, CUTTING, TAPING AND PACKING MACHINE IS AVAILABLE.

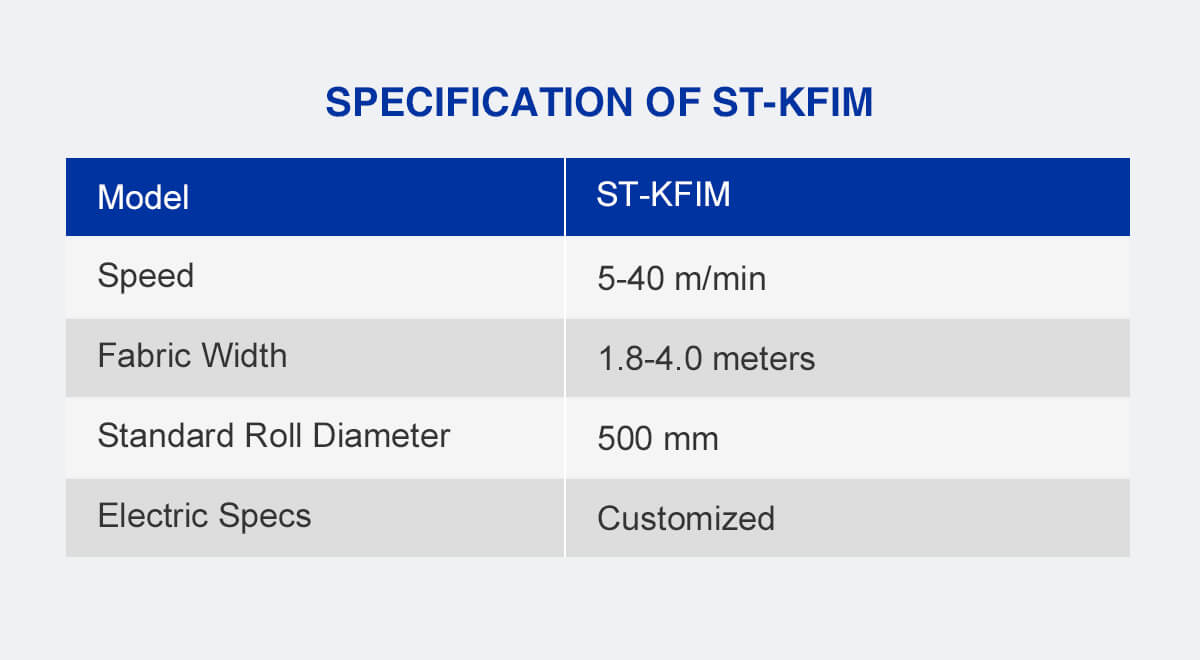

SPECIFICATIONS

Model

ST-KFIM

Speed

5 - 40m/min

Fabric Width

1.8 - 4.0 meters

Standard Roll Diameter

500mm



Dimensions(L*W*H)

4300*2700*2000mm

(for model ST-KFIM-220 only)

Weight

1350kgs

(for model ST-KFIM-220 only)

Electric Specs

3Phase - 380V; 50HZ

(can be adjusted to suit for different countries)



Remark:Variable working width is possible and can be tailor-made to your requirements of processing needs.



 ST-KFIM Knitted Fabric Inspection Machine:

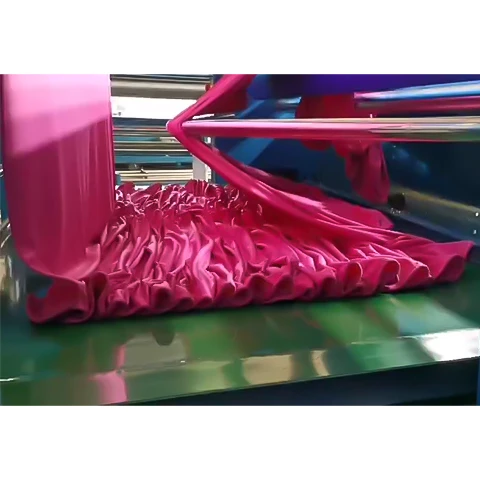

1) Auto Tensionless Checking: With unique mechanical and electrical device combination for making fabric feeding, delivery and re-winding synchronous.

2) Full Width Fabric Inspection: With 60 degree fixed angle inspection screen.

3) Curled Edges Controlling: With scroll roller system and de-curling system for perfect generation.

4) Accurate Length Counting: Counting error0.1m/km.

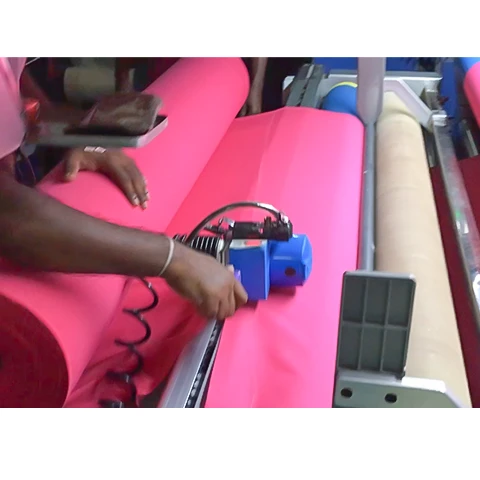

5) Accurate Fabric Edge Controlling: Edge alignment error 6mm

6) Consistent Roll Output: Roll hardness adjustable.

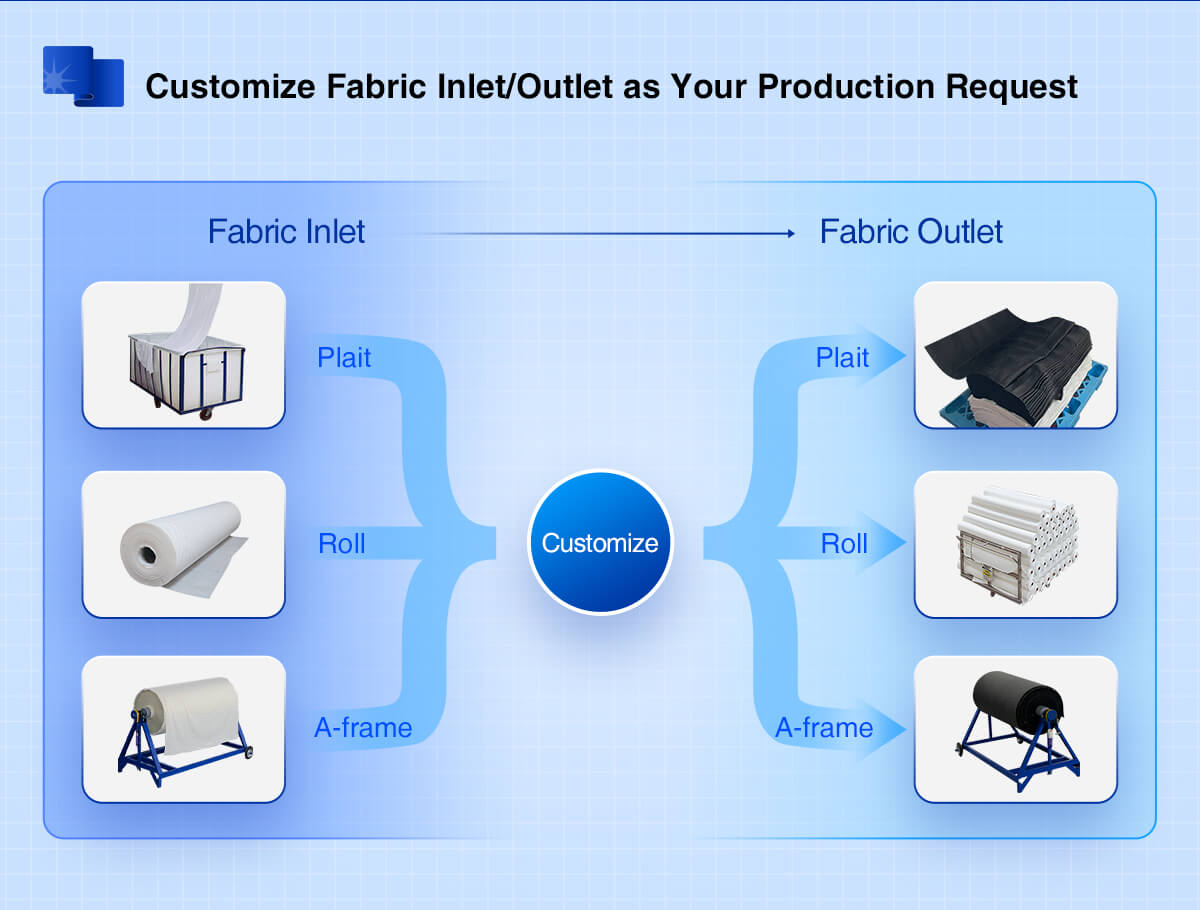

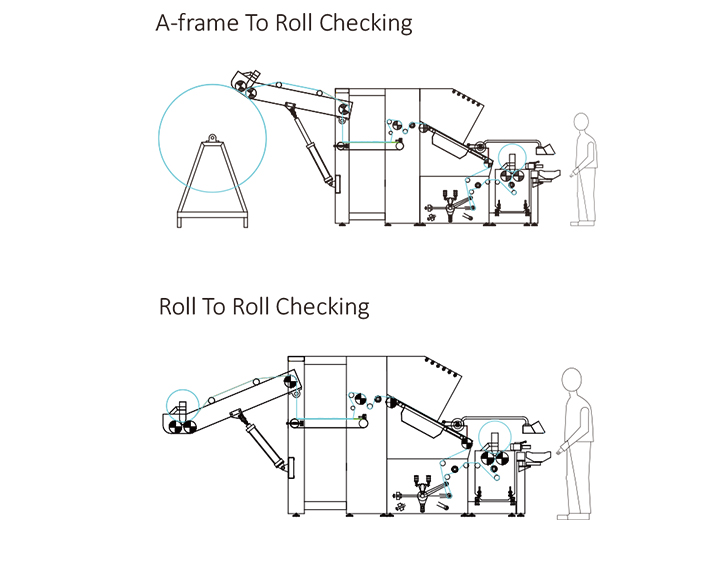

7) Available for different Fabric Input and Output Presentation, especially designed for A- frame to Roll Checking, Roll to Roll, ect. Synchronize with production operation.
