Tubular Fabric Inspection Machine

ST-TFIM

Tubular Fabric Inspection Machine

( Single Pass Checking )

3 Free Light Boxes!
One Operator Only!
Wirelessly Provide the Power!
No Crease Marks for Fabric!
Speed Controlled by Inverter!

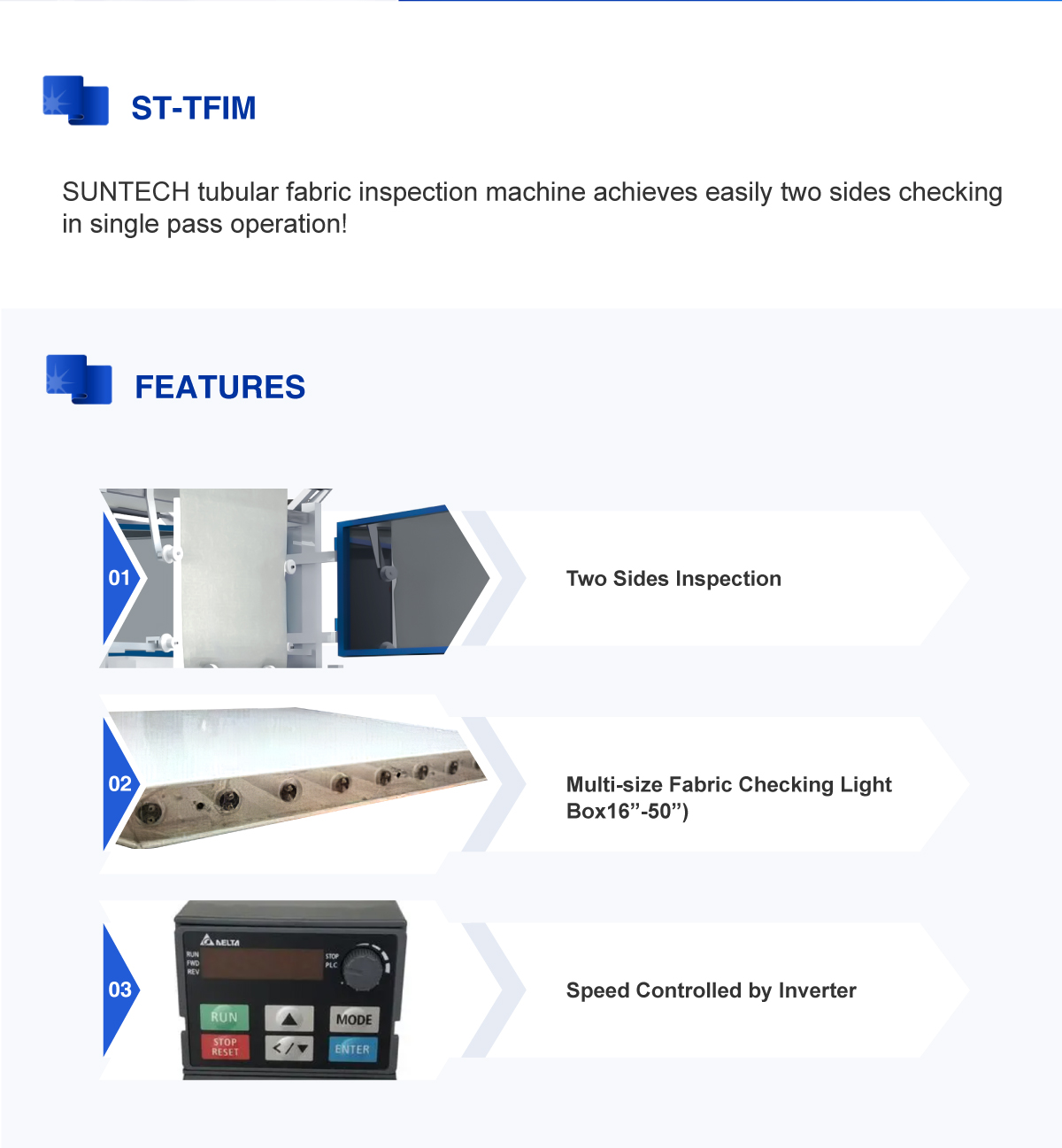

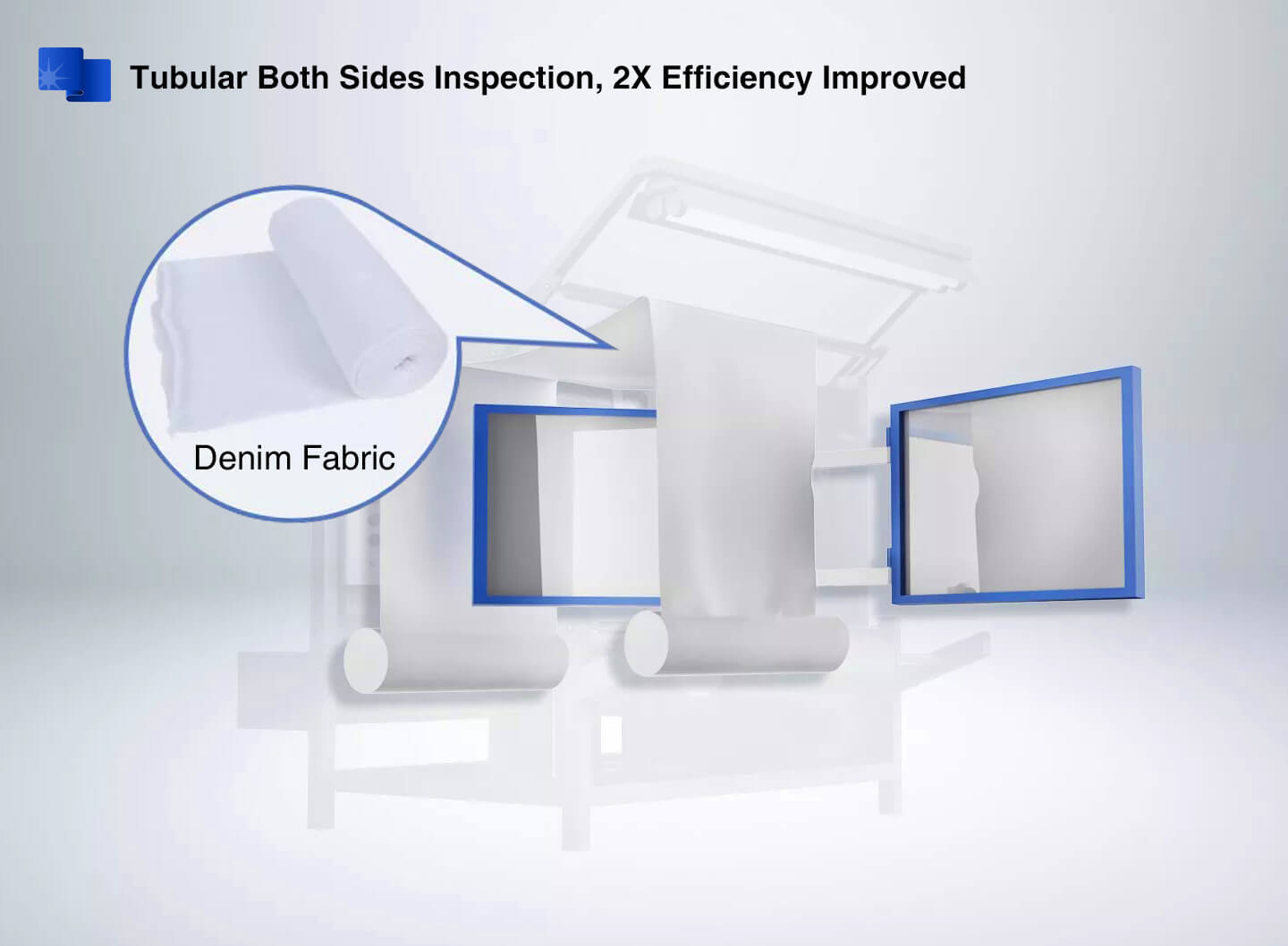

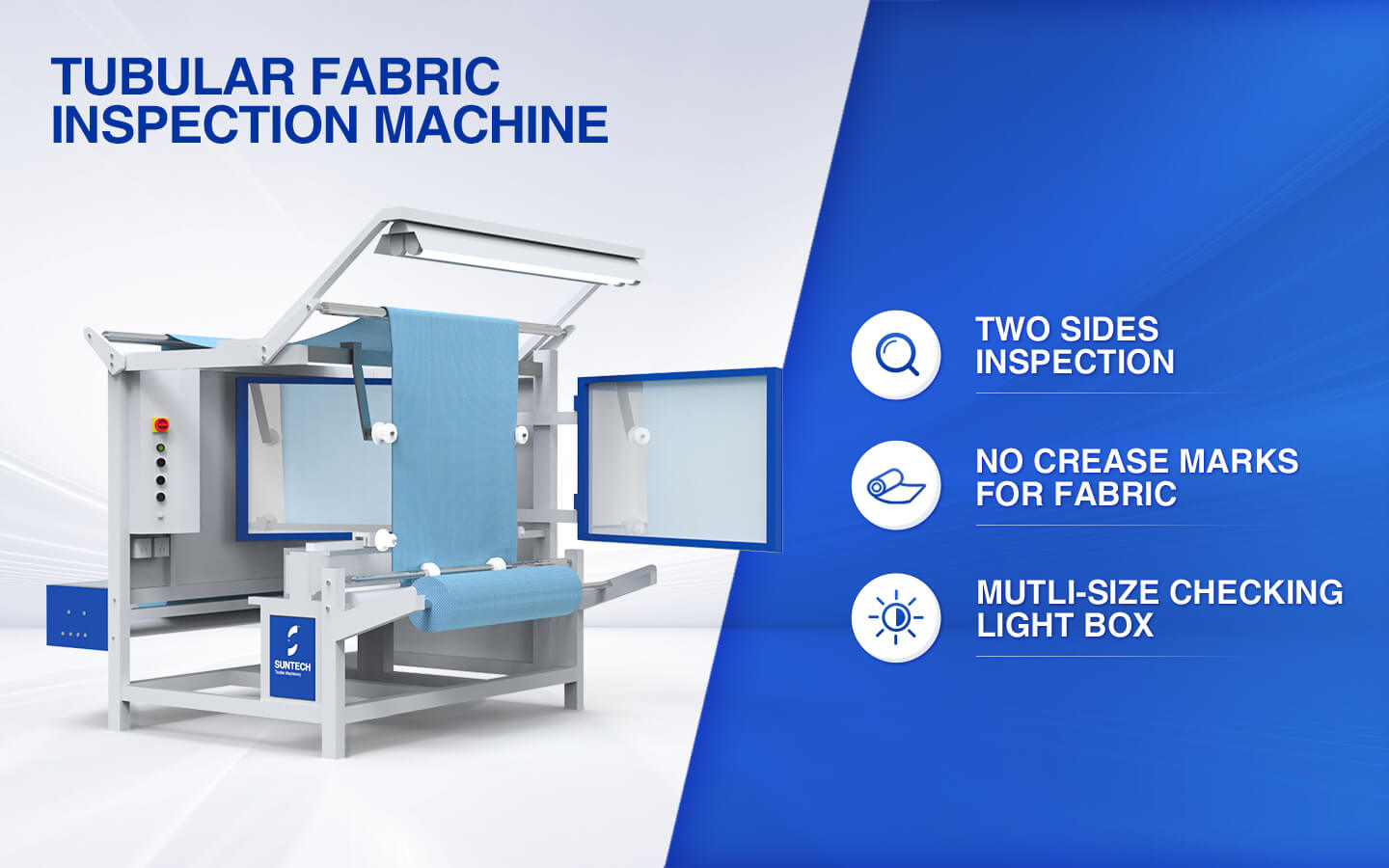

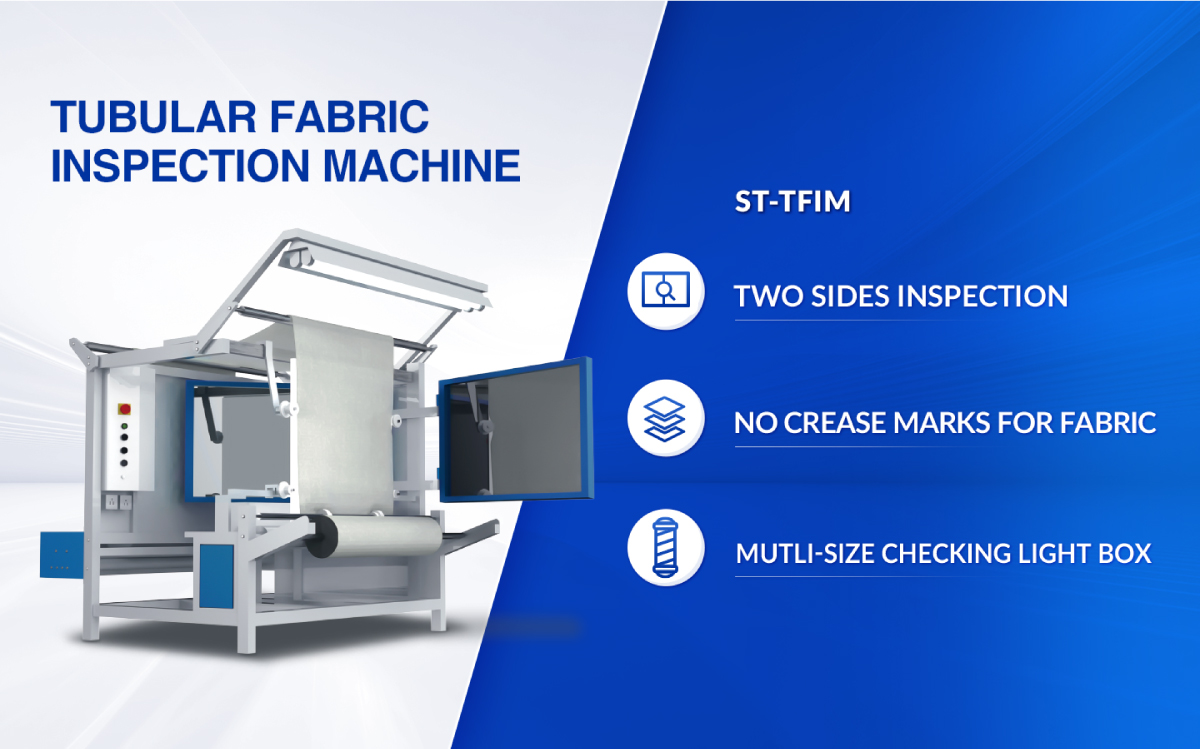

Tubular Fabric Inspection Machine featuresTubular Fabric Inspection Machine both sides inspectionTubular Fabric Inspection Machine with magnetic levitation light box design

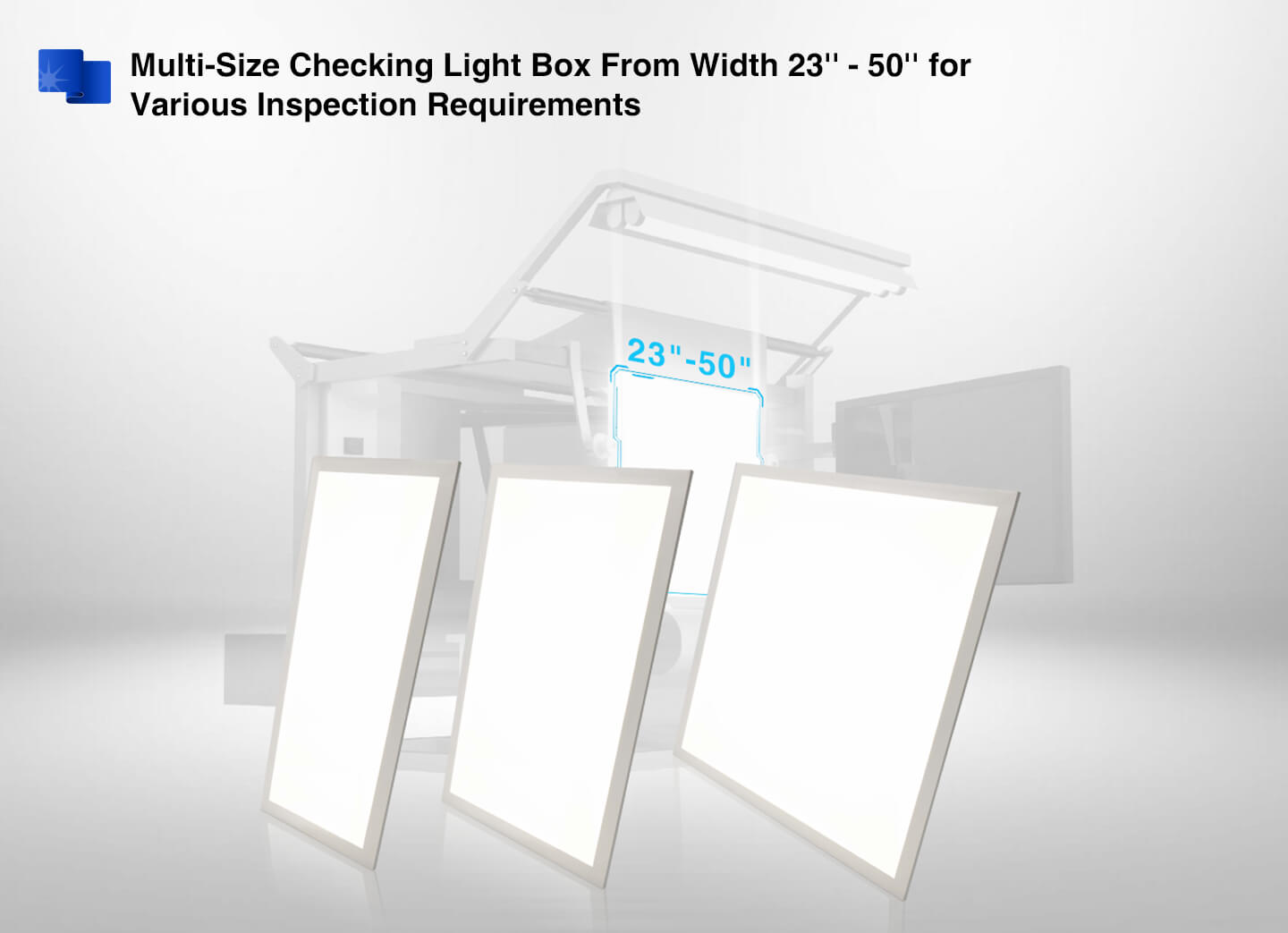

Tubular Fabric Inspection Machine have multi-size checking light box

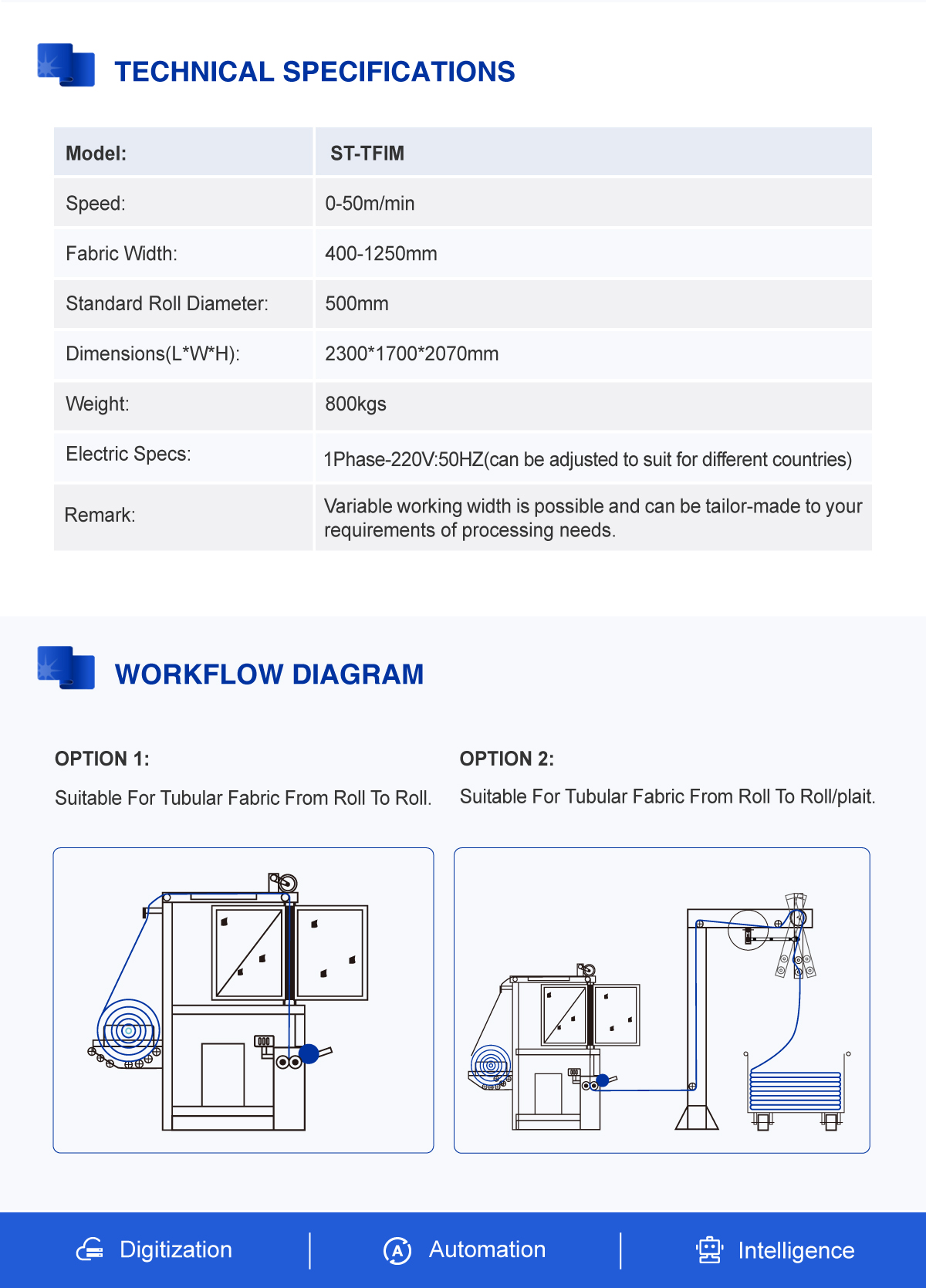

Tubular Fabric Inspection Machine specification

Warranty Extension is Available at SUNTECH Than Other Suppliers.

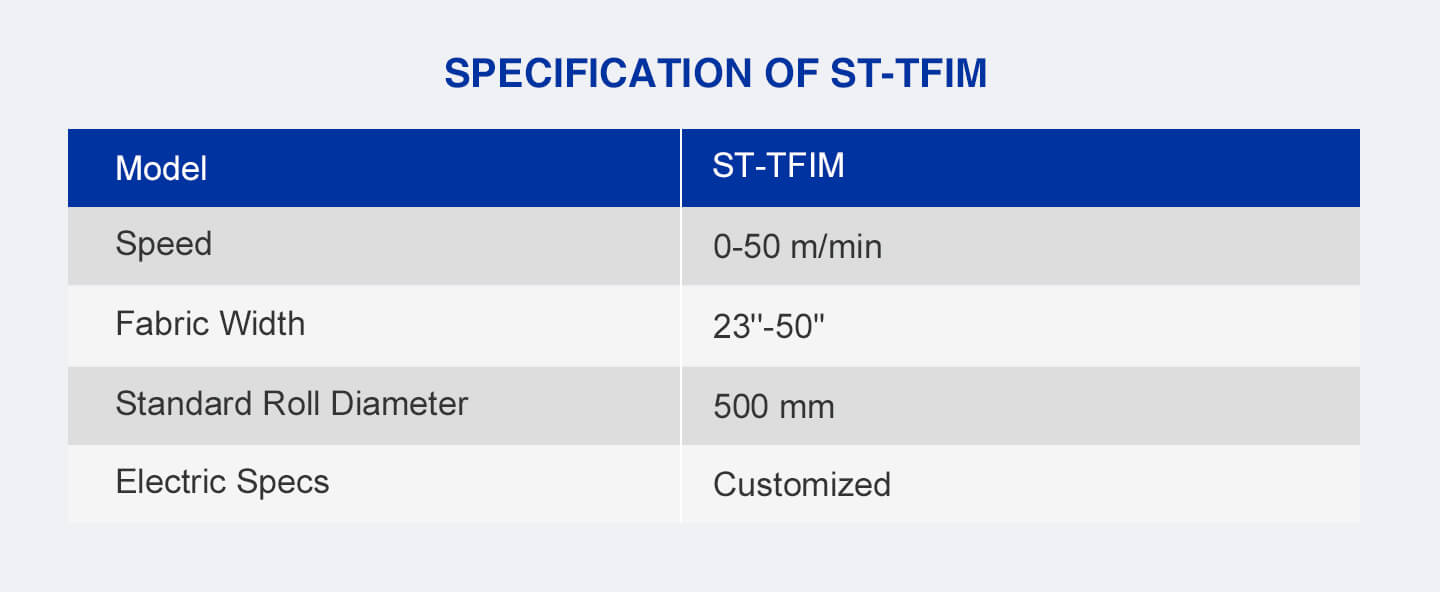

SPECIFICATIONS


Model

ST-TFIM


Speed

0 - 50m/min


Fabric Width

400 - 1250mm


Weight

800kgs


Standard Roll Diameter

500mm


Dimensions(L*W*H)

2300*1700*2070mm


Electric Specs

1Phase - 220V; 50HZ

(can be adjusted to suit for different countries)

Remark:Variable working width is possible and can be tailor-made to your requirements of processing needs.

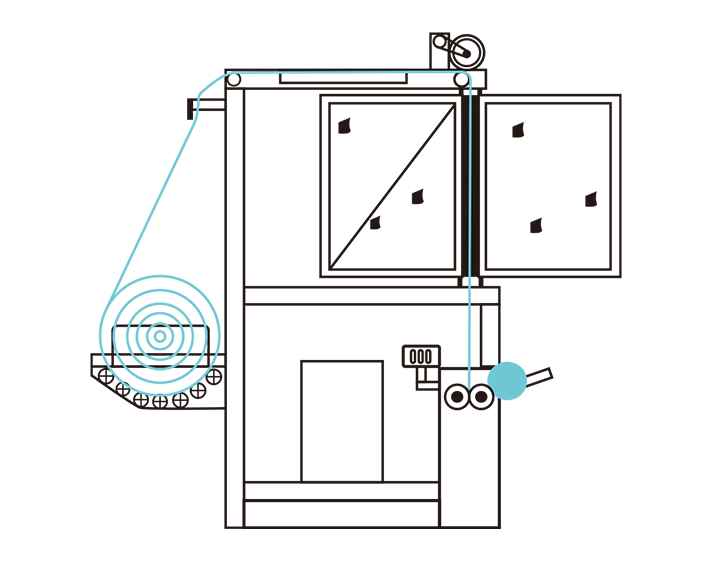

ST-TFIM Tubular Fabirc Inspection is specially designed for easy and efficiency inspect to both sides of tubular fabric in single pass operation.The fabric is loaded and pass to the fabric checking box, through two mirrors, the operator can easily check both side of fabric. This machine can be supplied to operate fabrics from roll to roll or plait. or with various other fabric inlet and outlet options.

Main Functions of ST-TFIM

1. Fabric Rolling Drawer

The Upper Delivery Mode Can Lessen Fabric Tension, Which is More Convenient for Inspection;

2. Controllable Inspecting Speed

The Inspecting Speed Can be Controlled by Inverter as Requirement;

3. High Voltage Dispenser for Lightening System
This Special Device Provides Electricity Power to the Fabric Checking Box Wireless;

4. Multi-size Inspecting Lightening Cabinets

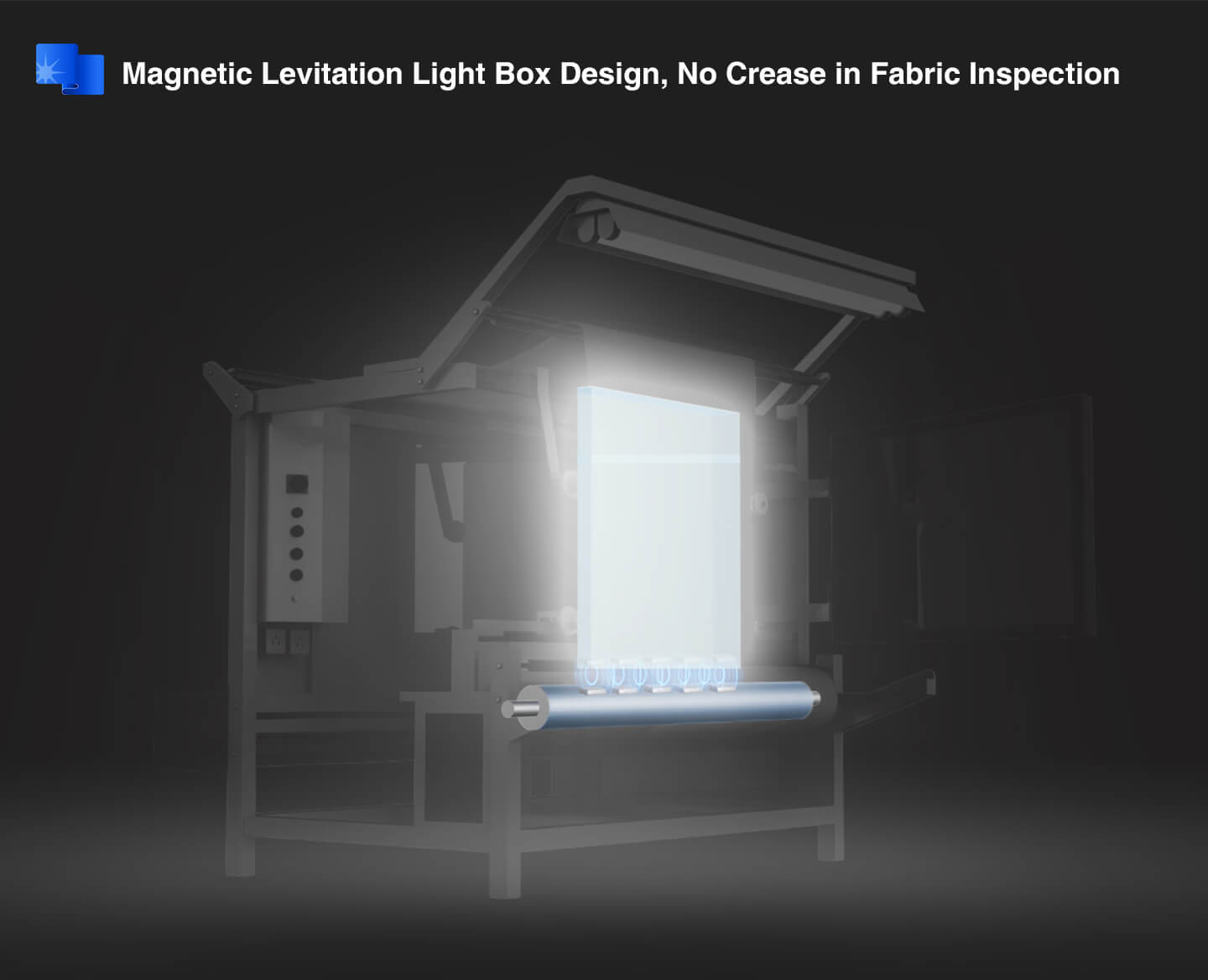

It Achieves Various Fabrics in Width from 18”~50” as Requirements of Various Fabric, and it Installed Magnetic Block in the Bottom to Suspension Automatically Against the Roller to Eliminate Crease Marks to Fabric;

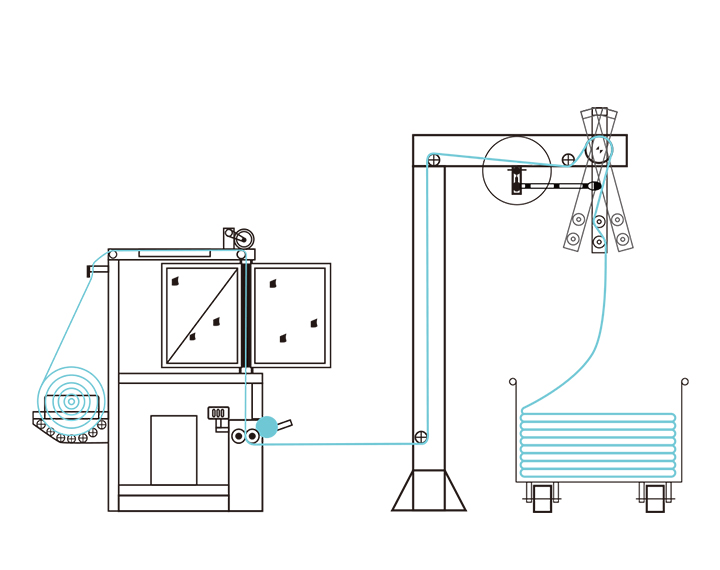

5. 2 Modes of Fabric Layout

Rolling or Plaiting for Option;

6. Easy Operation Pannel
Only Few Push Buttons to Run the Machine Smoothly;

7. Remote Foot Pedal

It is for More Convenient Operation

Tubular Fabric Inspection Machine

tubular fabric inspection machine
