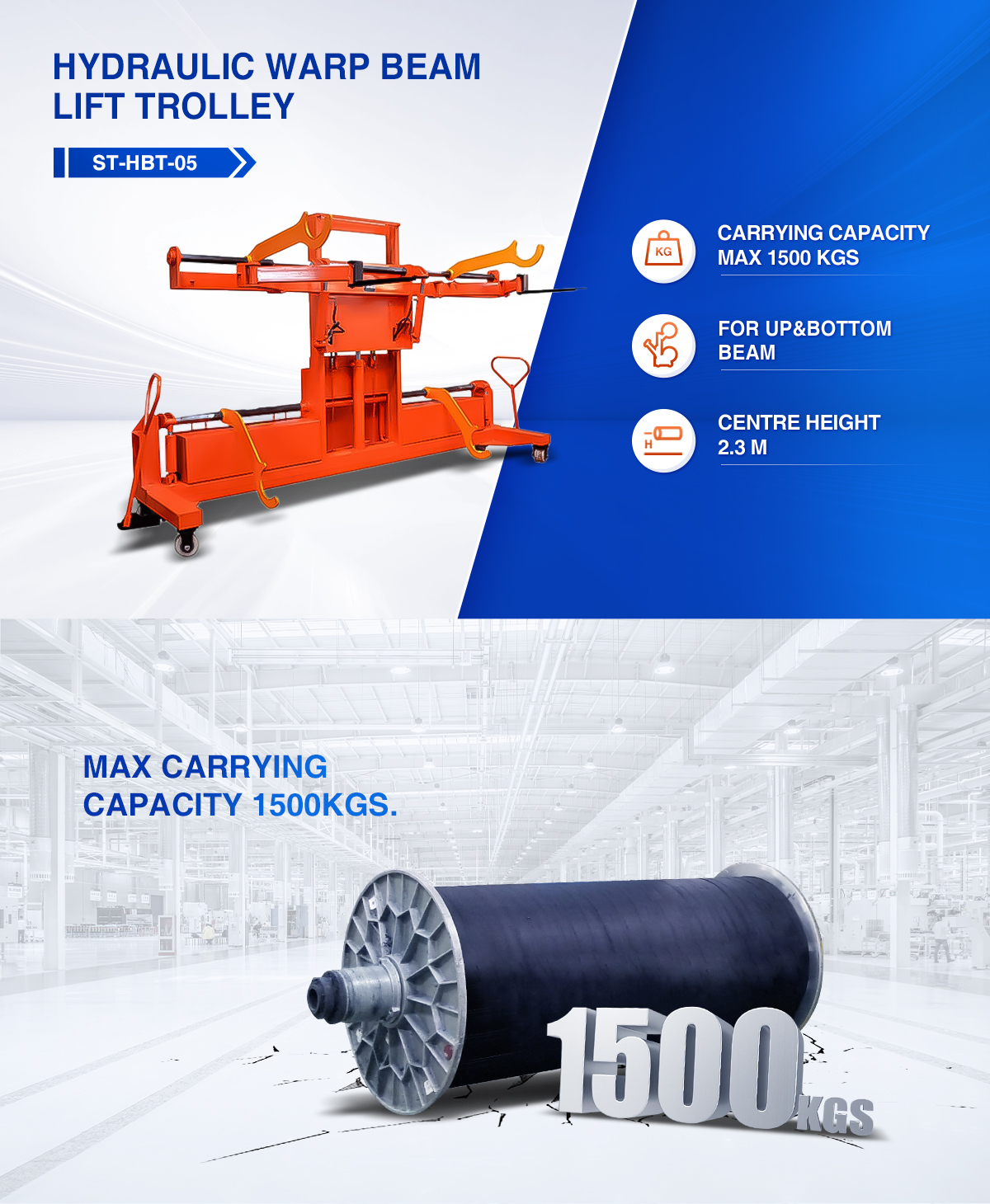

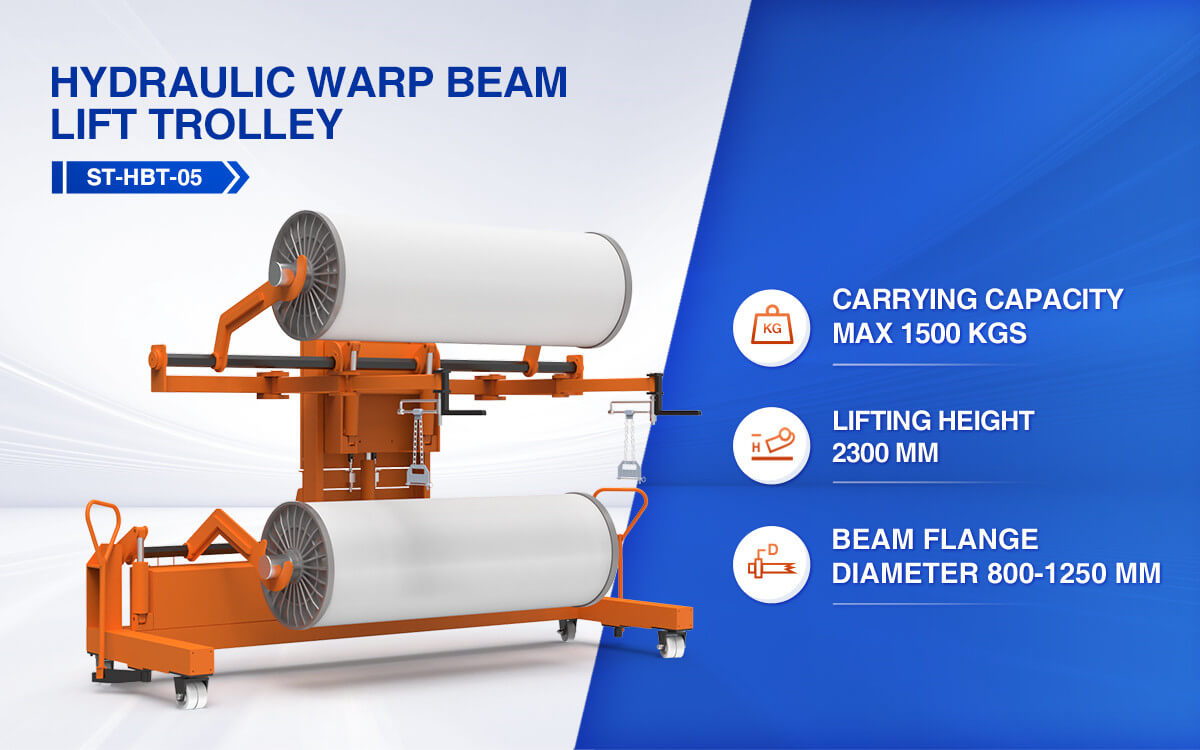

ST-HBT-05 Hydraulic Warp Beam Lift Trolley (for Upper & Bottom Warp Beam)

ST-HBT-05

Hydraulic Warp Beam Lift Trolley

( For Upper & Bottom Warp Beam )

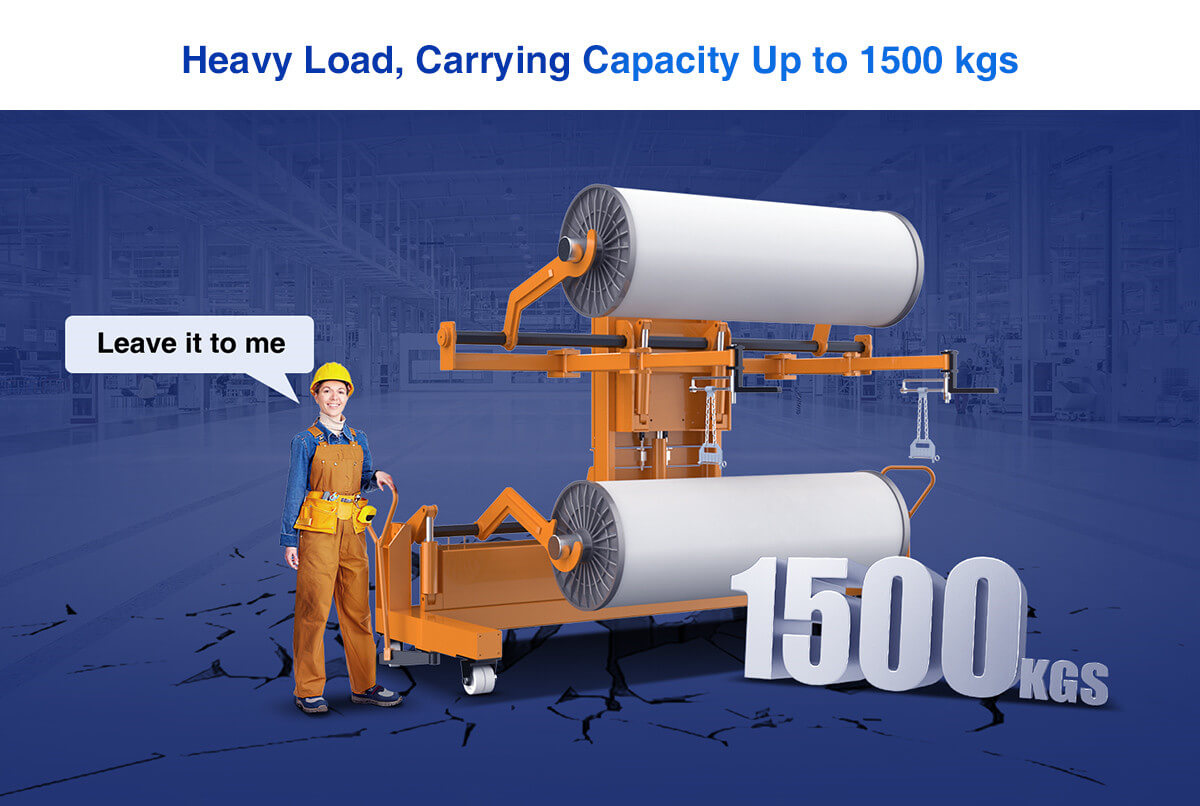

Max. Carrying Capacity 1500KG!

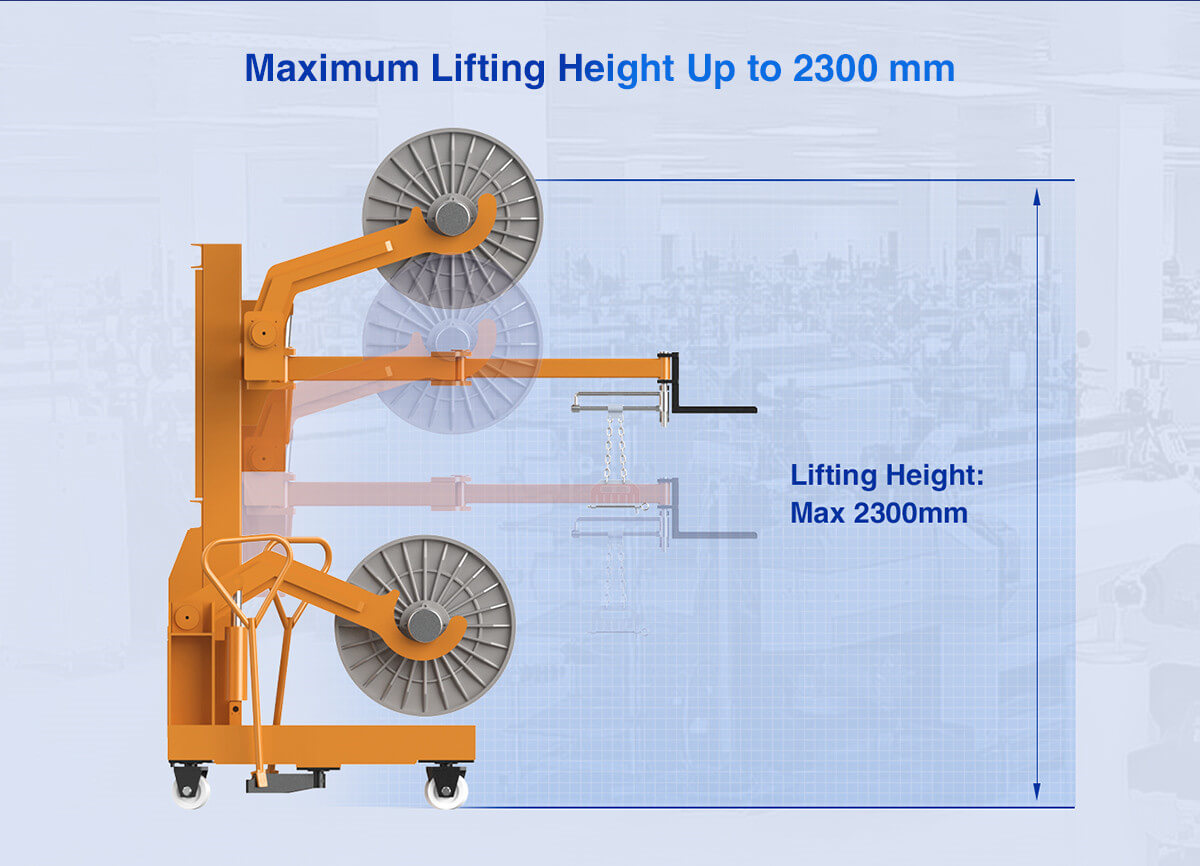

Max. Lifting Height 2.3m!
Carry Max. Roll Diameter 1000mm!
Foot Pedal Easy Operation!

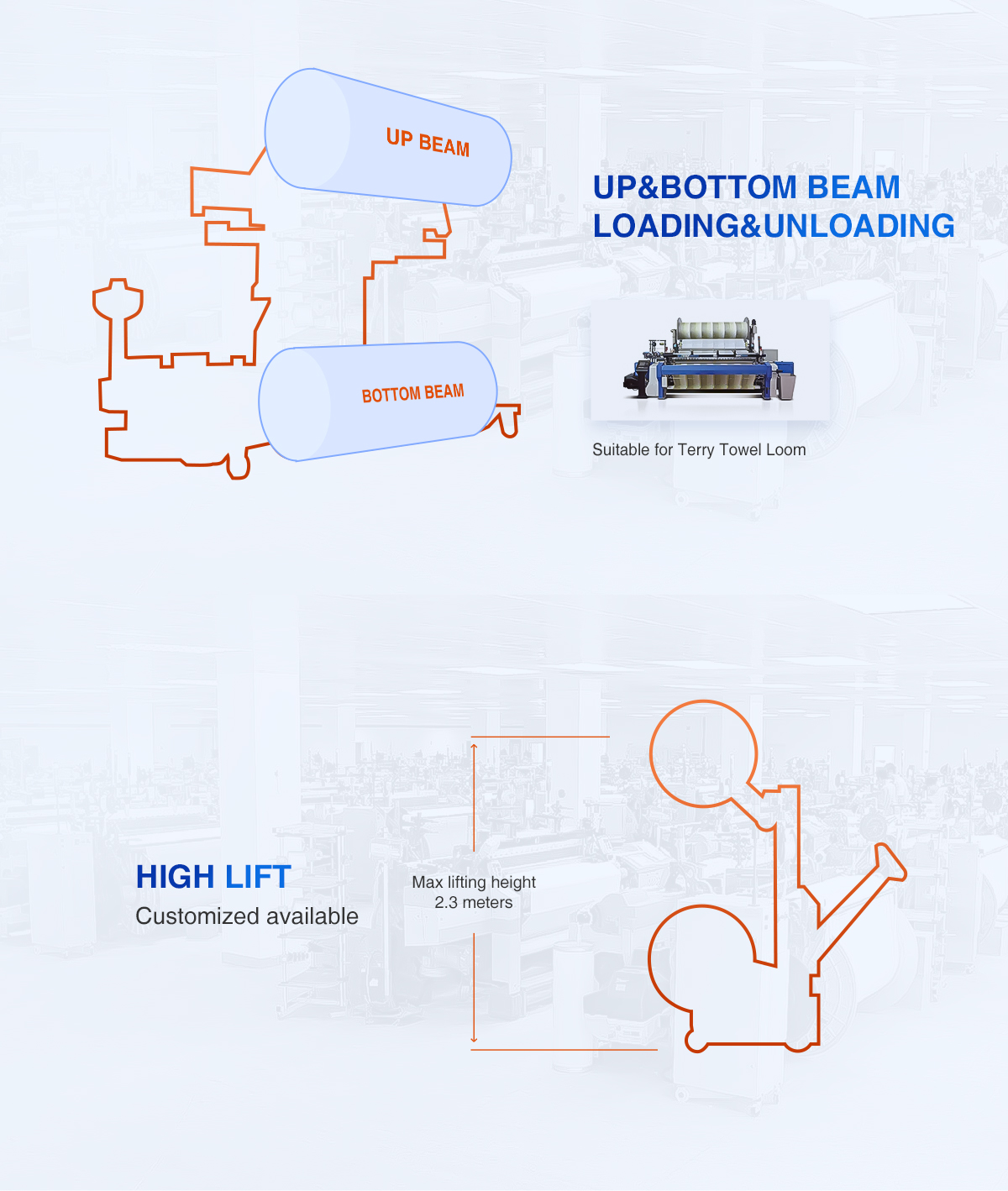

Suit for Upper & Bottom Beam!

Hydraulic Warp Beam Lift Trolley

Hydraulic Warp Beam Lift Trolley


Hydraulic Warp Beam Lift Trolley

ST-HBT-05 Hydraulic Warp Beam Lift Trolley is suitable for Upper & Bottom Beam transporting, inserting in weaving machines. The lifting movement and the lowering operation are performed by means of a mains-powered hydraulic power unit with manually operated valve.

1). Separate steering by push/pull bar at both sides.

2). Steering in travelling direction fixable on the left and right side.

3). Two steered wheels and two guided wheels.

4). Wheels with ball bearings and thread protection caps.

5). Lifting movement by hydraulic foot pedal with automatic quick lift.

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.
