ST-HBT-01 Hydraulic Warp Beam Lift Trolley

ST-HBT-01

Hydraulic Warp Beam Lift Trolley

( Hydraulic Warp Beam Carrier )

For Bottom Beam Transporting!
Gentle & No Harm to The Floor!
Weighing Capacity to 2.5 Ton!
Customize as per Beam Width!
Suitable for Uneven Ground!

hydraulic warp beam lift trolley for sale

SUNTECH hydraulic warp beam lift trucks

hydraulic warp beam lift trolley

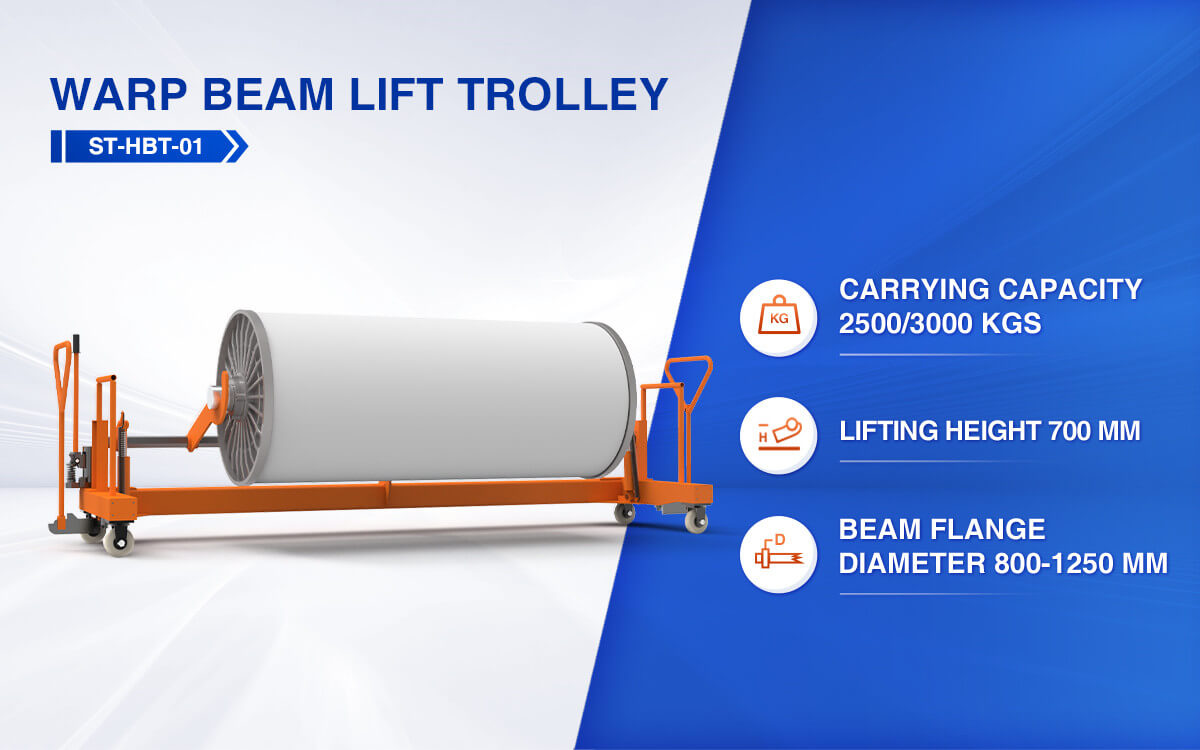

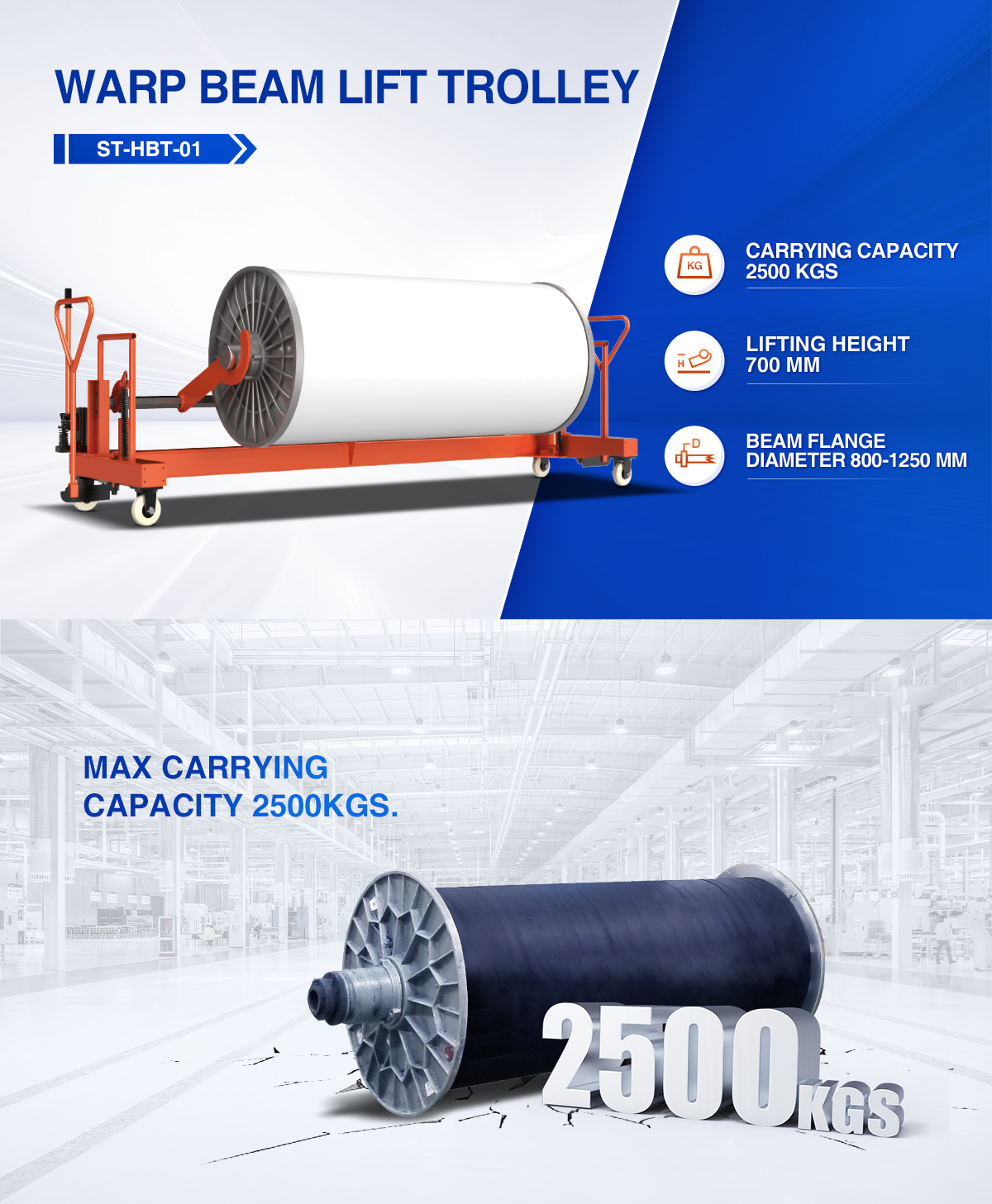

ST-HBT-01 Hydraulic Warp Beam Lift Trolley is suitable for Bottom Beam transporting, inserting in weaving machines.

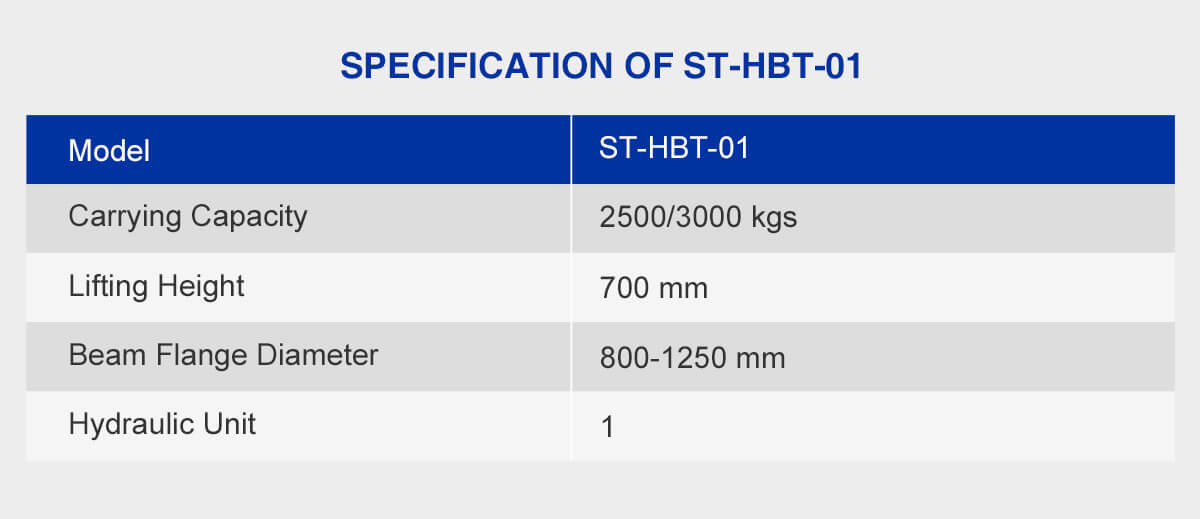

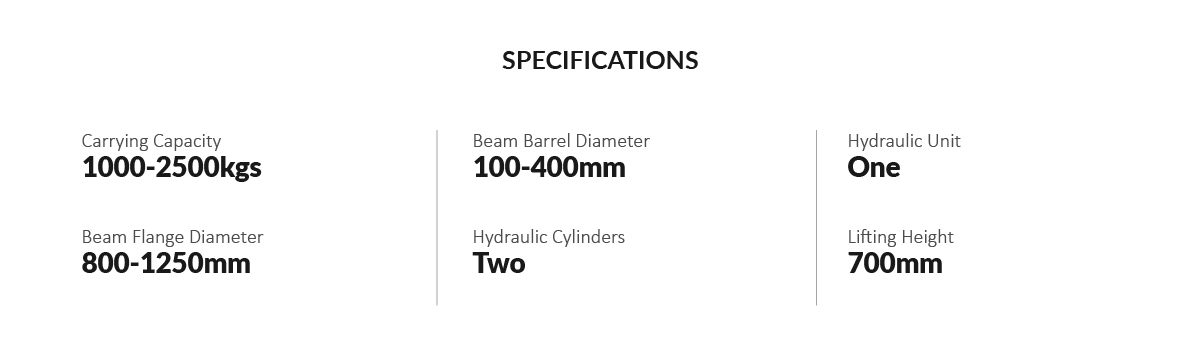

Warp beam weighing up to 2500kg and beam width as per requirement.

The carriage, which is equipped with oscillating suspended double wheels from a loading capacity of 2500kg, is very gentle to the floor, since the load is really distributed to both wheels.

Thus, the wheels are not overburdened while driving on uneven ground.

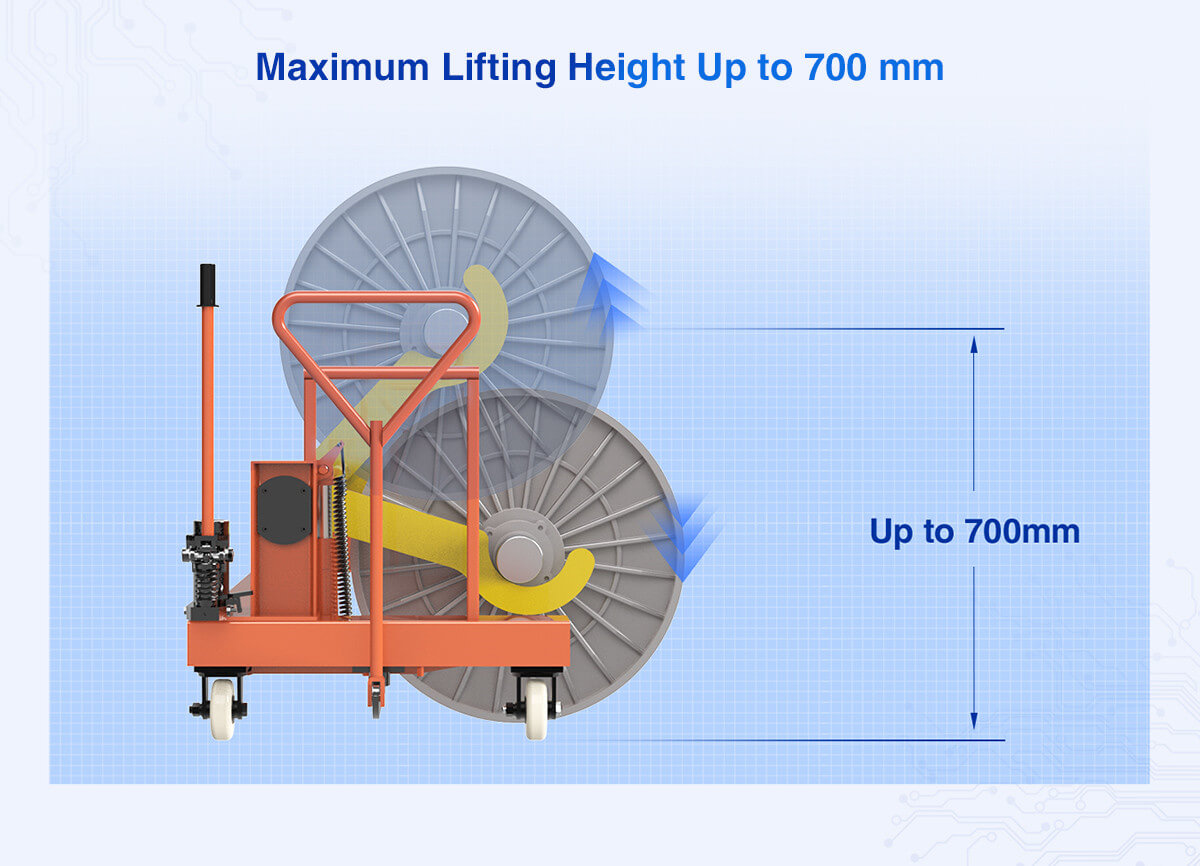

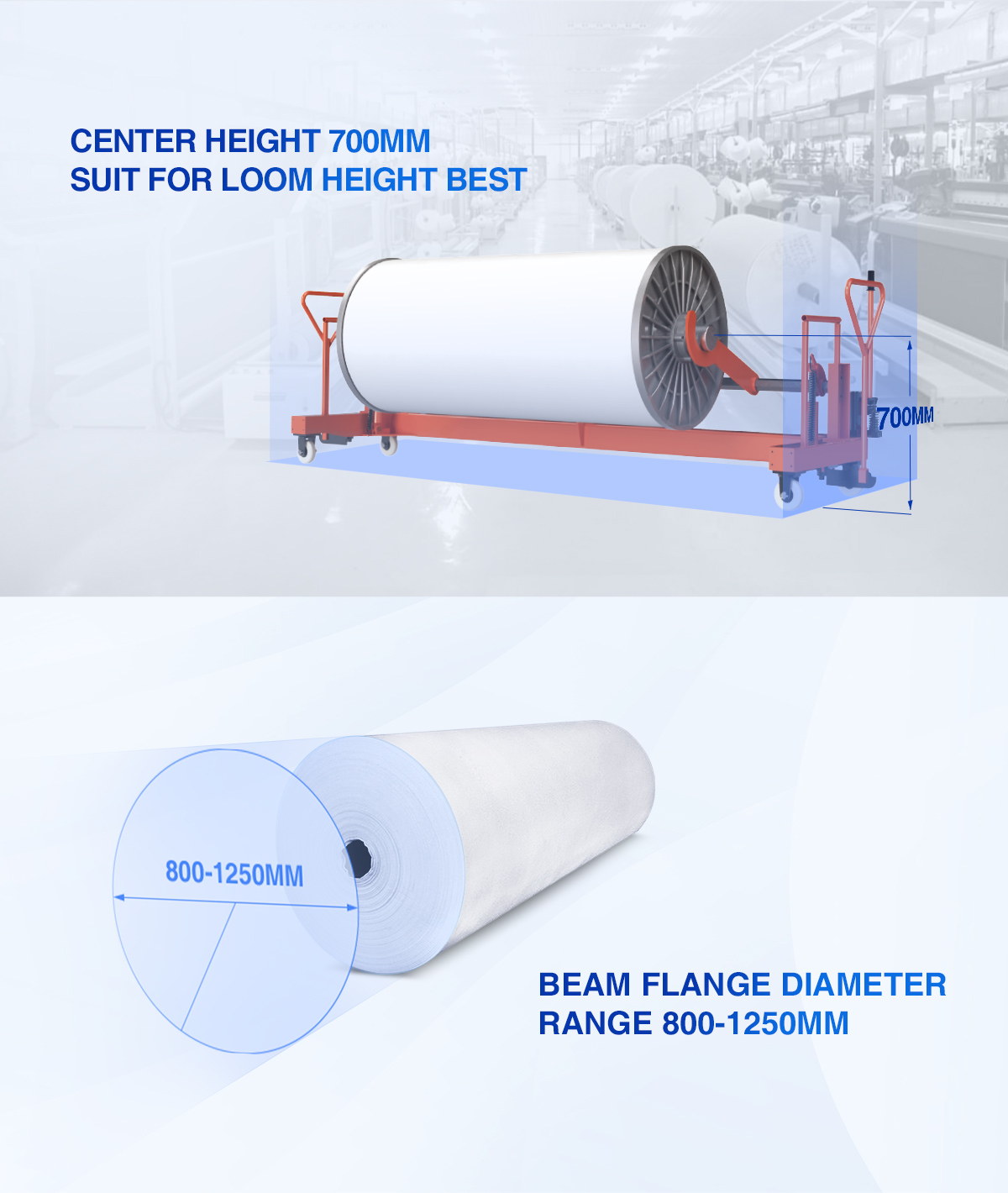

The center height 700mm is also suit for loom height best.

The beam flange diameter range 800-1250mm.


1. Separate steering by push/pull bar at both sides.
2. Steering in travelling direction fixable on the left and right side.
3. Two steered wheels and two guided wheels.
4. Wheels with ball bearings and thread protection caps.
5. Lifting movement by the hydraulic foot pedal with automatic quick lift.
WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.


hydraulic warp beam lift trolley

Contact Us Now to Get Your Custom Solution!
Call Our Expert Sales Directly 0086-571-86597552
