Electro-hydraulic Warp Beam High Lift Trolley

ST-HBT-04I

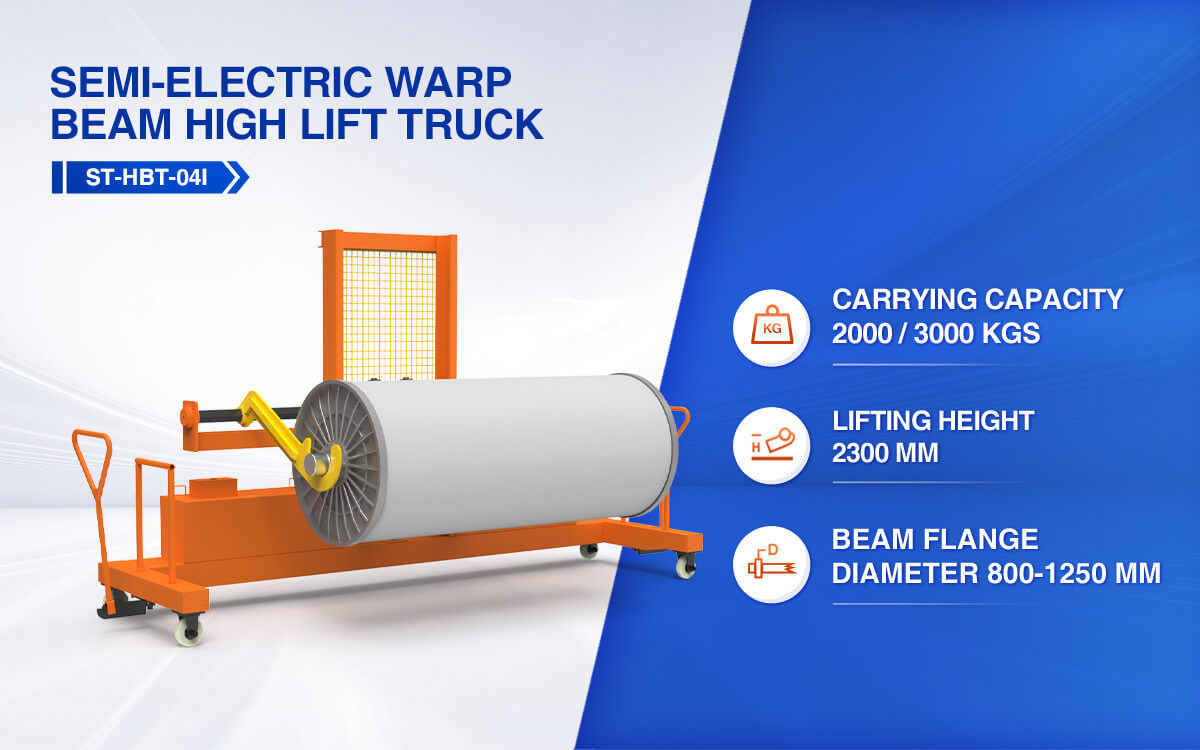

Semi-electric Warp Beam High Lift Truck

( Electro-hydraulic Type )

Suitable for Upper Beam!
Manual Transportation!
Ready to Use on Arrival!
Free of Installation!
Lifting Efficiency Improvement!

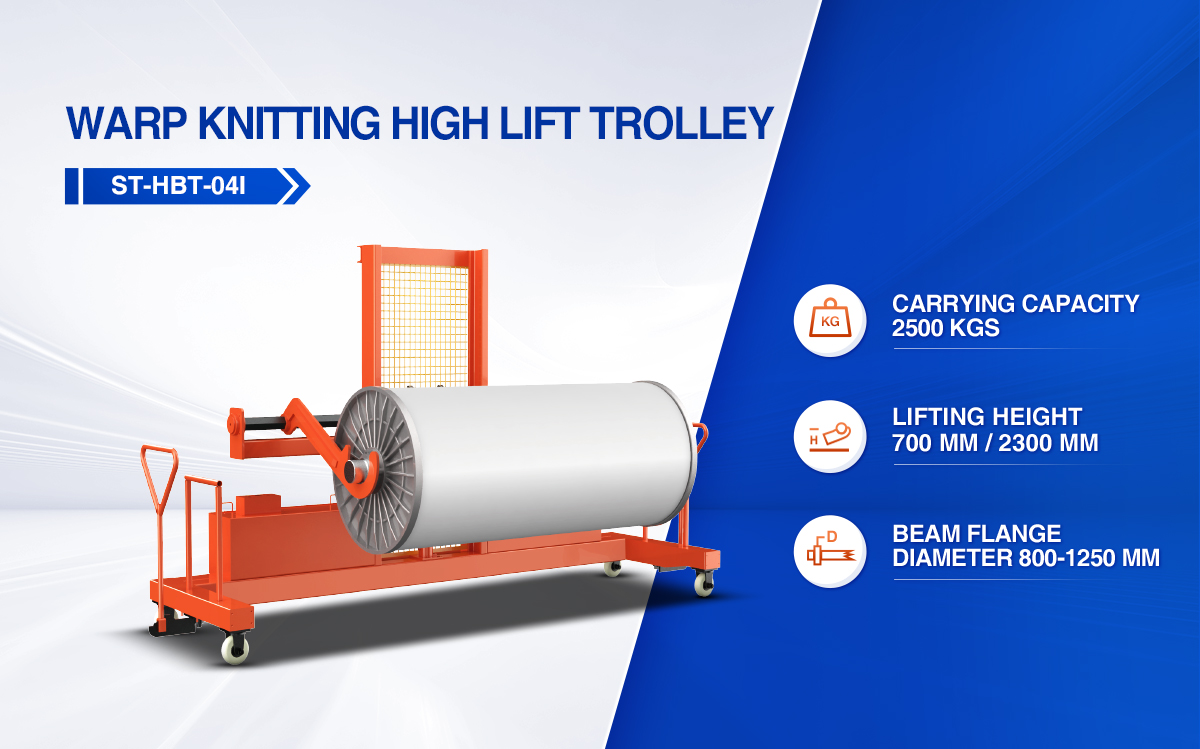

Warp Beam High Lift Trolley

Warp Beam High Lift Truck

Electro-hydraulic Warp Beam High Lift Trolley

Suitable for Upper Beam transporting, inserting in weaving machines.

The lifting movement is motorized, and the transporting is manually.

Max. carrying capacity 2500 kgs.

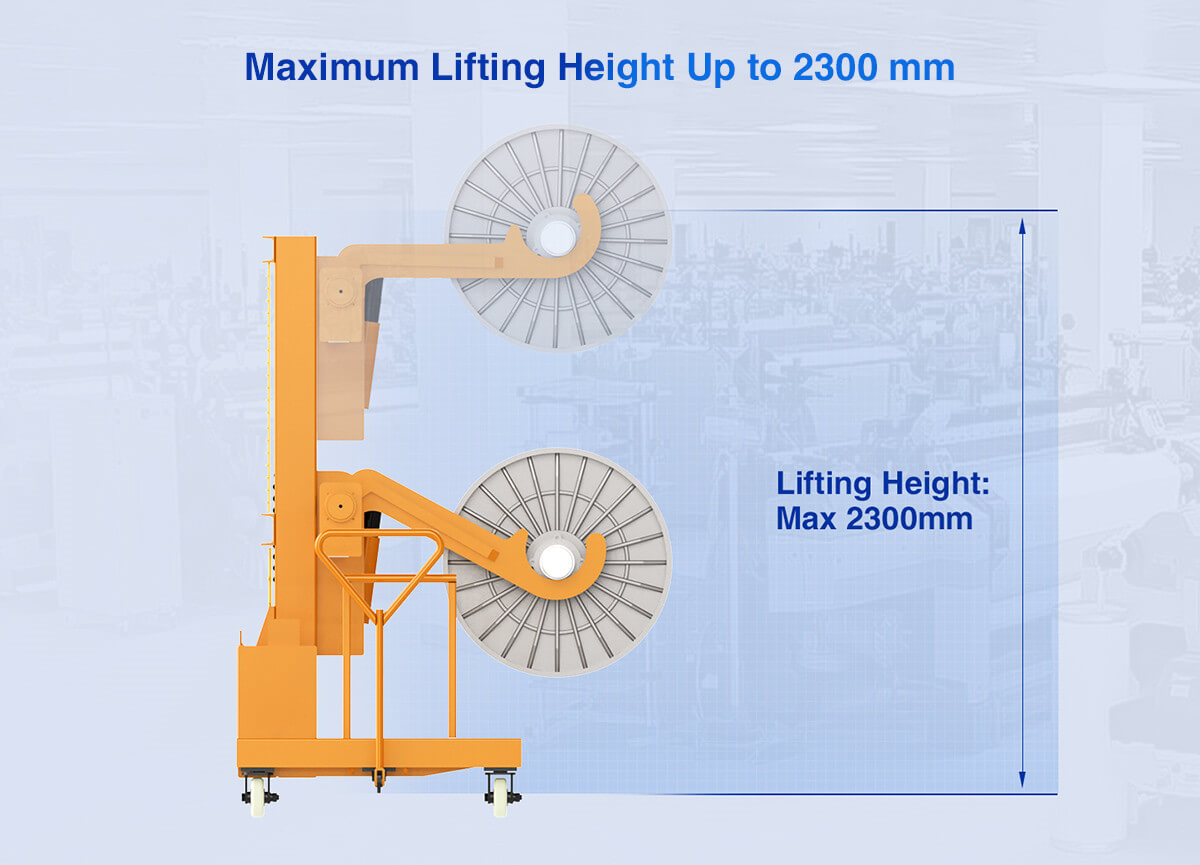

Max. lifting height 700mm/2300mm, high lift can also be customized.

Beam flange diameter 800-1250 mm.


1. Separate steering by push/pull bar at both sides.
2. Steering in travelling direction fixable on the left and right side.
3. Two steered wheels and two guided wheels.
4. Wheels with ball bearings and thread protection caps.
5. Lifting movement by the motor-driven with automatic quick lift.


electro-hydraulic warp beam high lift trolley
