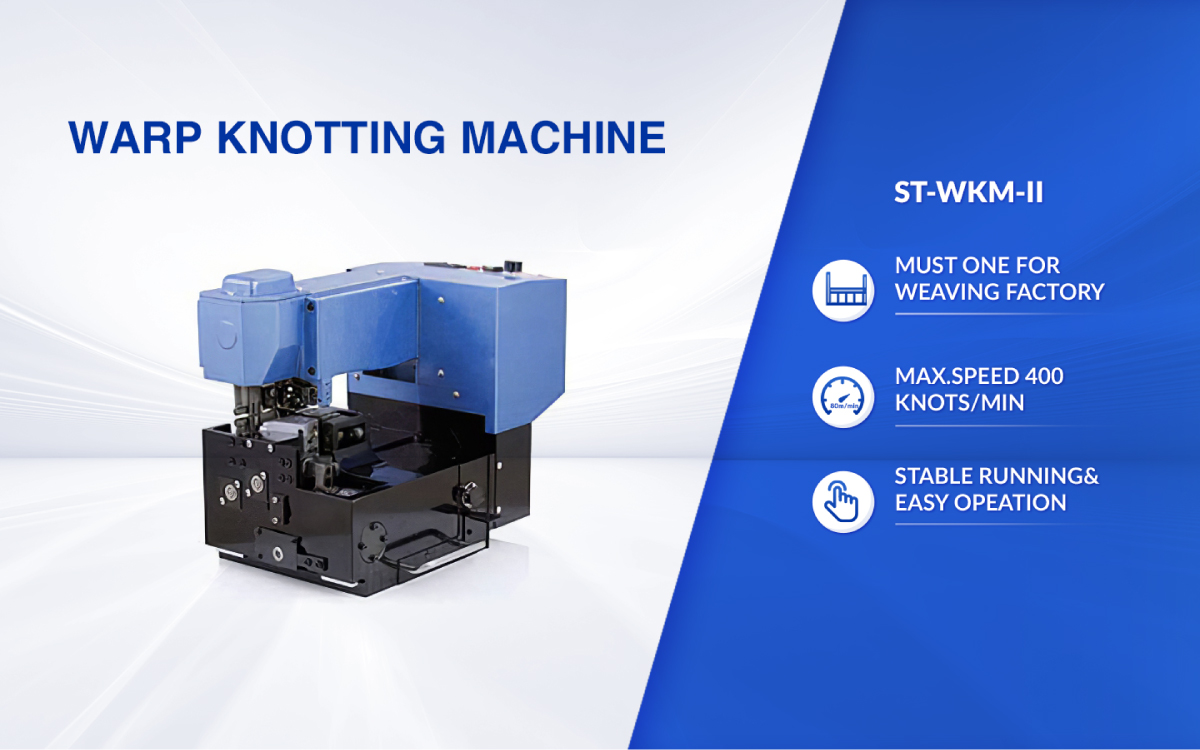

Warp Knotting Machine

ST-WKM-II

Warp Knotting Machine

( Max.Speed 400 Knots/Min )

SUNTECH ST-WKM-II Automatic Warp Tying Machine adopts world-class knotting technology, and enjoys high performance, high efficiency, high flexibility and high quality, it is the ideal knotting solution for all weaving mills, like rapier weaving, airjet weaving, waterjet weaving, and projectile weaving. Upto 400 per minute.

  1. The running speed is as high as 400 rpm, and the actual splitting speed is about 50%-100% higher than before (according to the yarn state).
  2. Split the tissue benchmark {1:1}, and can also be changed to {2:2} by switching the switch.
  3. Warp tension adjustment is operated by a single handle.
  4. A special warp separation device is used for the corresponding tell operation.
  5. The main part is actively driven by cam, which is stable and easy to adjust.
  6. The exchange of the yarn splitting needle is simple and completed in one step.

SPECIFICATIONS


Model

ST-WKM-II



Adapted to Yarn Type

Special for long fiber(chemical fiber, synthetic fiber, spun silk),special for short fiber(cotton yarn, blended yarn wool)



Effective width

75’’ 85’’ 95’’ 105’’ 110’’ 130’’ 140’’



Running speed

7-400 RPM CVT



Motor

DC100-120V,50W


Number of strands

Three
