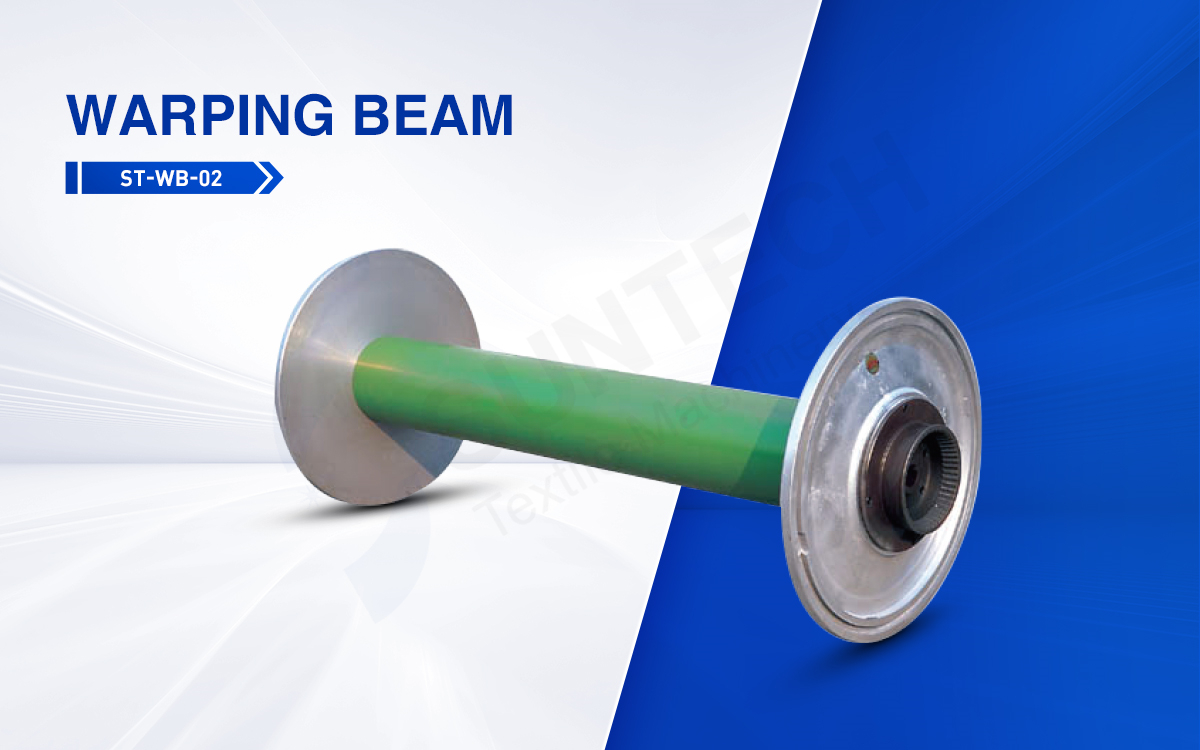

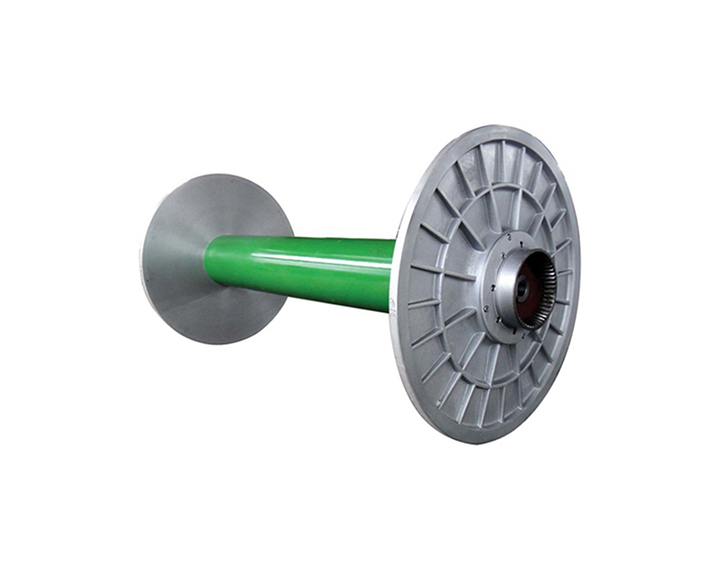

ST-WB-02 Warp Beam

ST-WB-02

Warping Beam

( (Warper Beam) )

Corrosion Protection!
Life Cycle Support!
12 Months Warranty!
Adapt to All Kinds of Loom!
Customized for Special Loom!

wrap beamWarp Beam & Weaving Beam

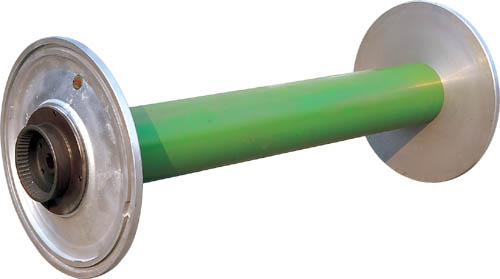

BENNINGER WARP BEAM:



weaving beam



warp beam for sale

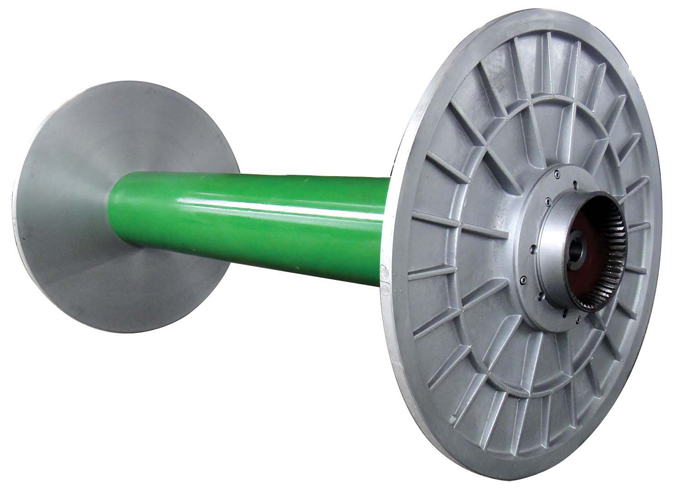

SUNTECH Warp Beam:

1. Beam Barrel: Made by 20# Seamless Steel Pipe; Tensile Strength: 470-490Mpa; Elongation: 3.6%.

2. Flange: Made by ZL105 High Strength Aluminum Alloy; Material and Mechanical Property are higher than ZL104 Standard for imported components; Surface Anodic Oxidation Treatment.

3. Break Disc: Made by QT500-7 Nodular Cast Iron.

4. Precision after Assembly:

Barrel Jump <0.25mm per 1000mm

Flange Vertical Jitter <0.35mm

Balance Correction <30g

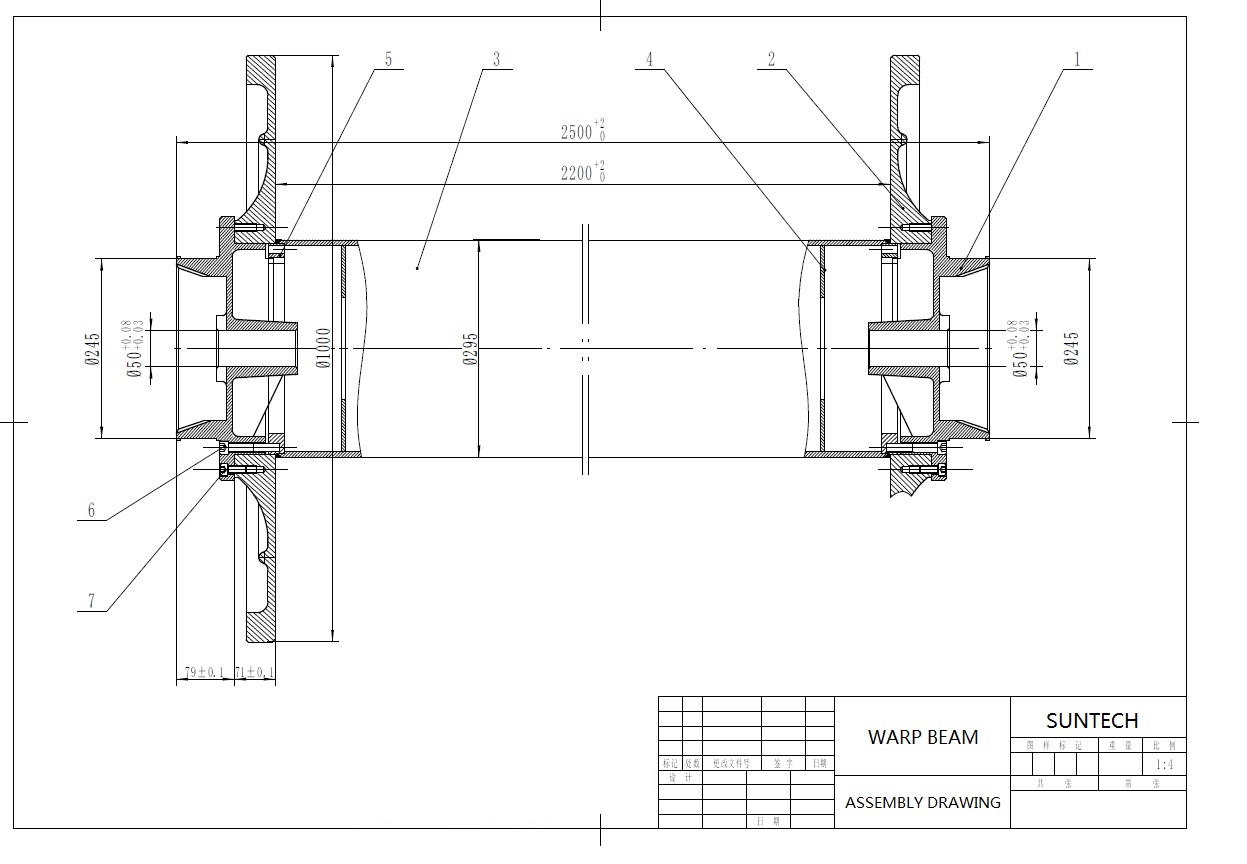

A Typical Drawing for Warp Beam:

Design details of Warp Beam

SUNTECH has the Capability to Customize for any Leading Warper Brands in the World.

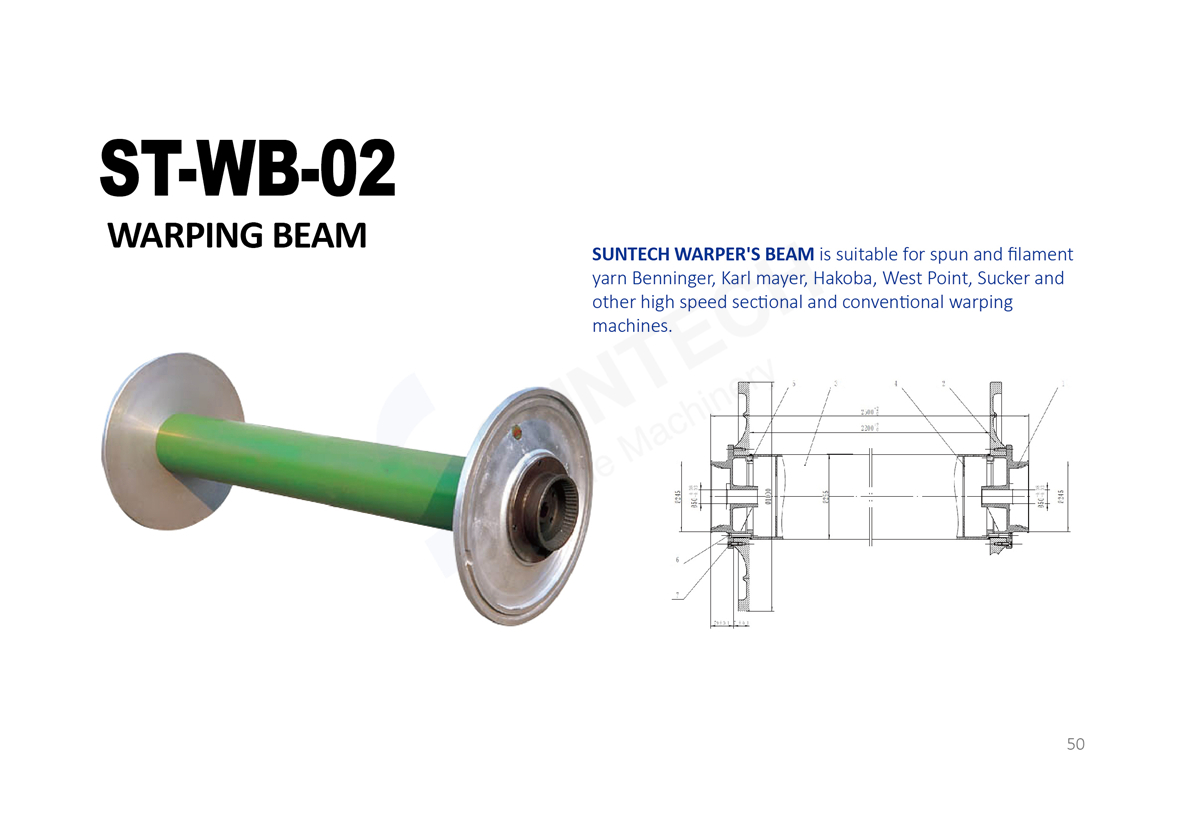

SUNTECH Warp Beam is Suitable for Spun and Filament Yarn. Benninger, Karl mayer, Hakoba, West Point, Suker and Other High Speed Sectional and Conventional Warping Machines.

Available Size: 800mm flange dia. to 1400mm dia.

Working width: 1600mm to 2800mm.

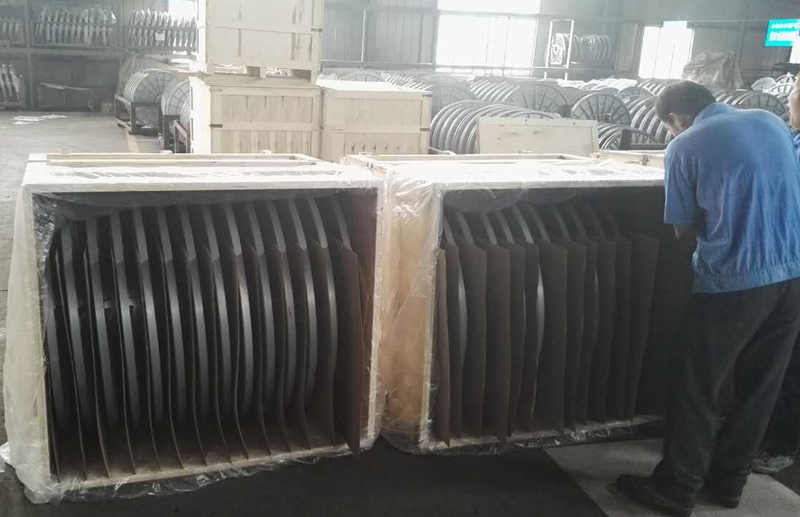

WOODEN BOX PACKING: FOR BARREL & FLANGE:

Warper's beam packing

SUNTECH warp beam packing

warp beam

Contact Us Now to Get Your Custom Solution!
Call Our Expert Sales Directly 0086-571-86597552
