ST-TFSM-01 Tubular Rope Opener (Evolution Type, for Raw and Wet Fabrics)

ST-TFSM-01

Tubular Rope Opener

( Evolution Type, for Raw and Wet Fabric )

Low Maintenance Cost!
Germany E+L 2535 Cutter!
S.S 304 Rust-Proof Material!
2 Times Efficiency Improved!
European Quality but Chinese Price!

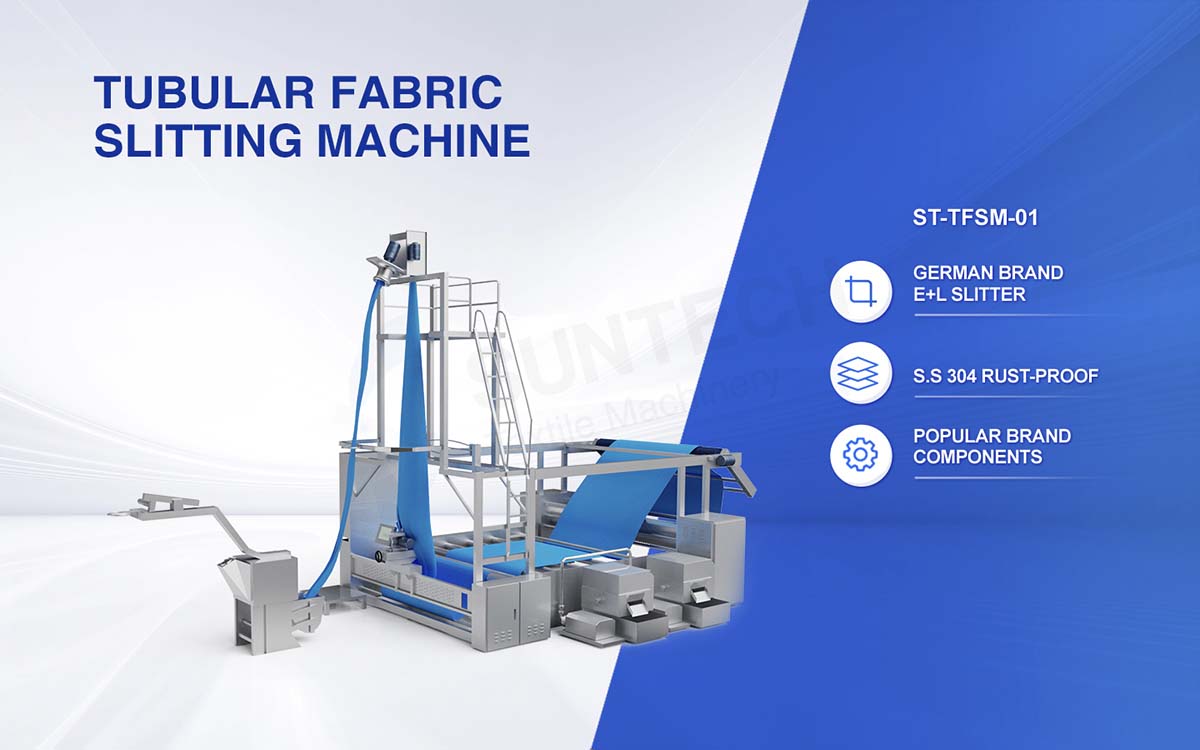

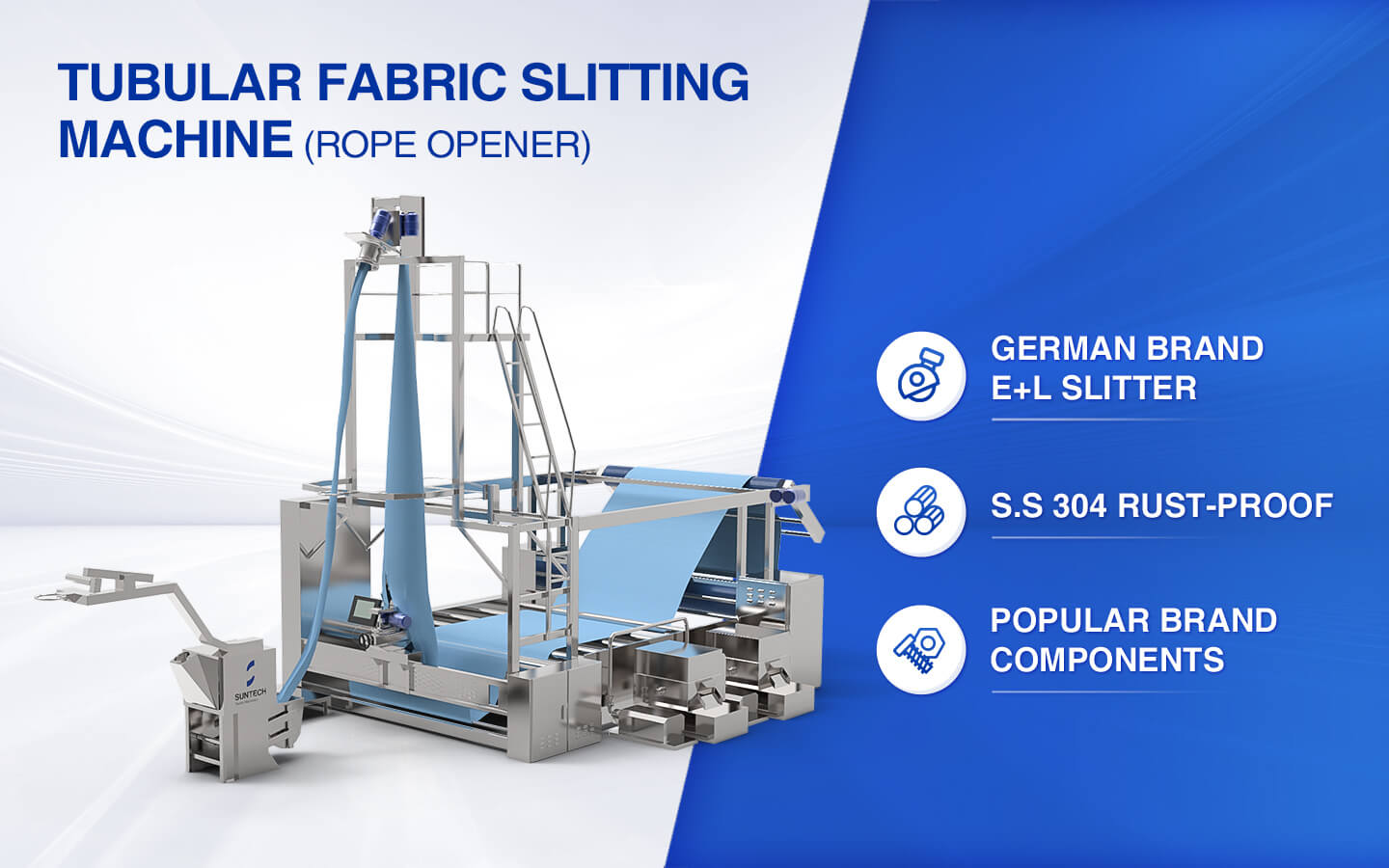

ST-TFSM-01 Tubular Rope Opener:

SUNTECH tubular rope opener

tubular rope opener for wet fabric

tubular rope opener for sale

tubular rope opener price

WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

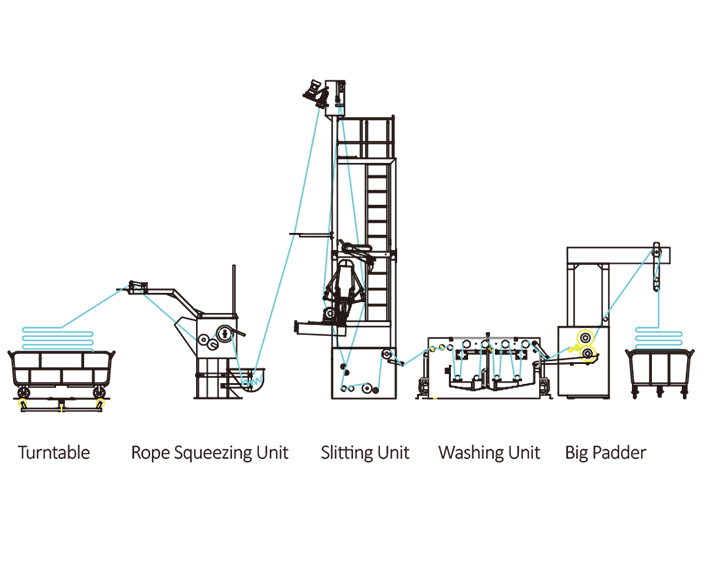

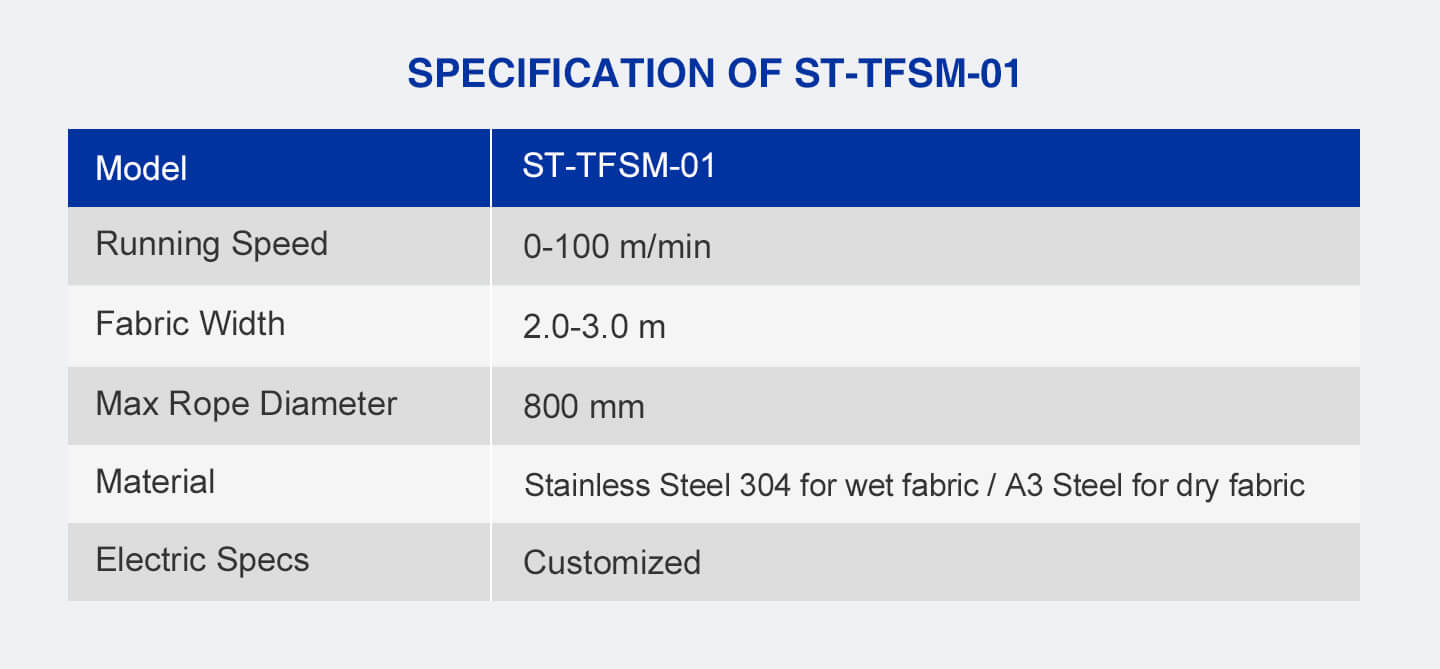

ST-TFSM-01 Tubular Rope Opener is mainly applicable after rope dyeing. It is used to slit & open roped fabric and has been specially designed for continuous high speed operation in automatic mode. The machine material could be A3 Steel or Stainless Steel, which could be suitable for both raw and wet fabrics.

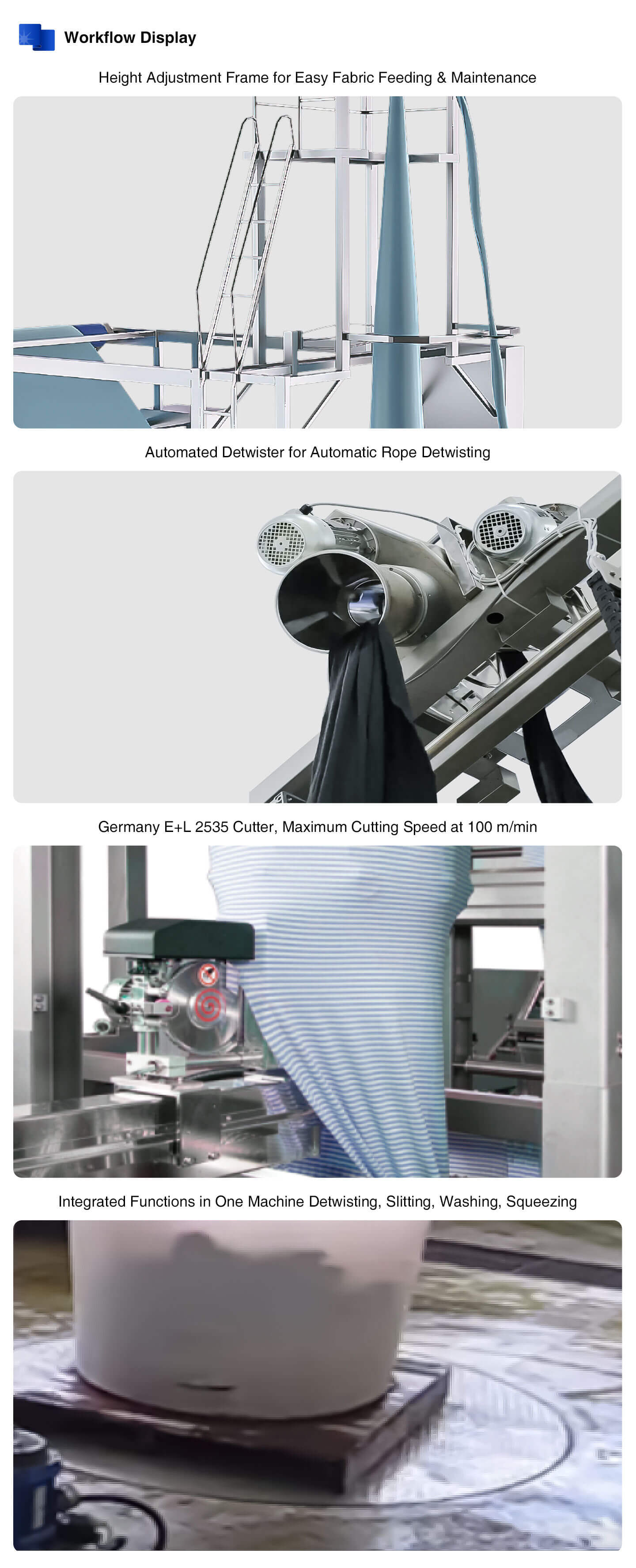

1. Raisable Frame and Automatic Detwister
Automatic detwister for fabric rope. The signal from feeler is picked up by proximity switches. Fabric rope engagement is by means of rotary opening rollers.

2. Slitting Basket
By means of a handwheel, the diameter of the round basket can be expanded from 320 to 800mm, so as to facilitate the spreading of fabric and prevent permanent weft
distortions, as may be generated by the slitting process.

3. Needle Drop Sensor
Needle drop sensor can detect the needle drop on the fabric and adjust the basket to place the fabric in proper slitting position.

4. Infrared Spreading-Centering Unit
It automatically open the fabric and then centre it, to ensure that the fabric is alignment in the centre of the machine. It is used for both slitting and rope opening function.

5. Hydraulic Turntable - Option
Controlled by fulid power, 1800mm diameter, for fabric carriage rotation in heavy duty conditions. It facilitate the operation of rope detwisting after washing or dyeing.

6. Squeezing Unit for Fabric Ropes - Option
Squeezing unit J-box with an oscillating chute for self adjustment of speed, to be installed on the entry of the line to reduce the quantity of water contained in the fabric.
