ST-FRM-S

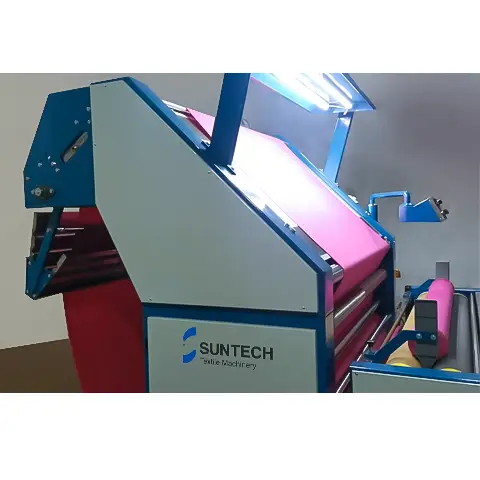

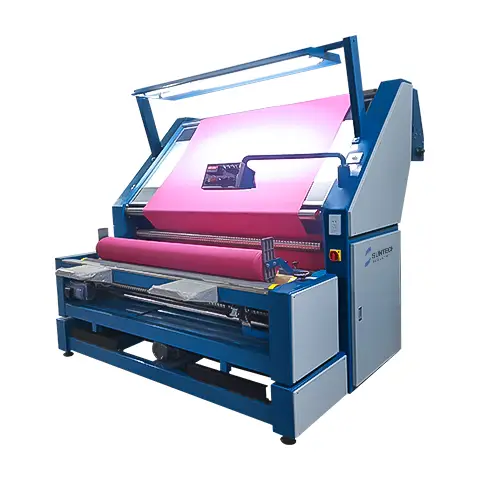

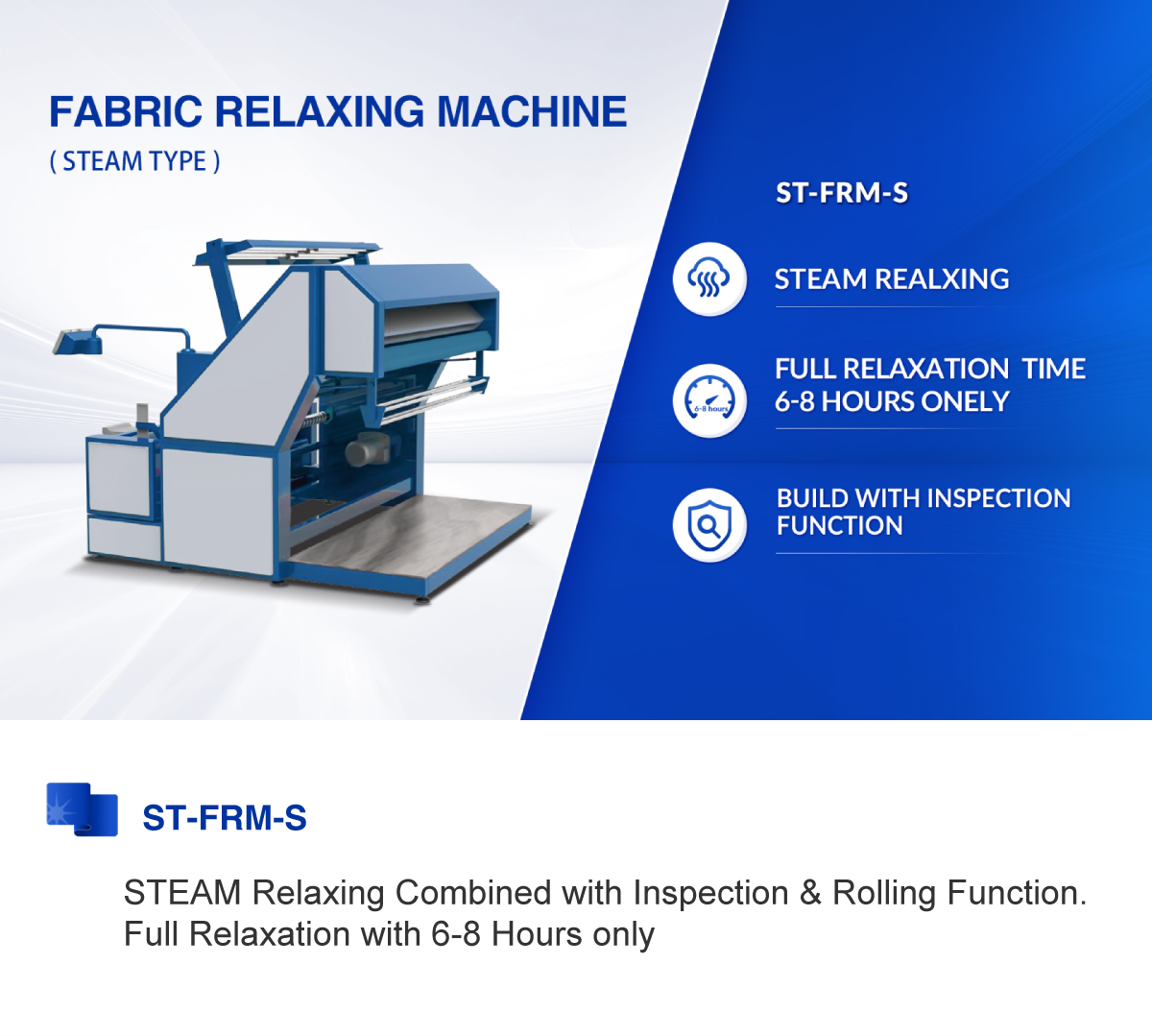

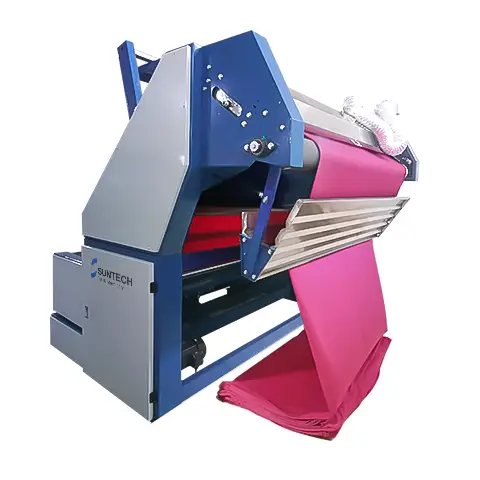

STEAM FABRIC RELAXING MACHINE
( STEAM TYPE; NEW ARRIVAL! )
ST-FRM-S is mainly used to eliminate the tension of knit fabrics; From Roll to Plaited fabric,Steam Relaxing, with 6-8 Hours Relax Time Only. Combined with Inspection & Rolling Function Too.

ST-FRM-S STEAM FABRIC RELAXING MACHINE is mainly used to eliminate the tension of knit fabrics; From Roll to Plaited fabric,Steam Relaxing, with 6-8 Hours Relax Time Only. Combined with Inspection & Rolling Function Too.



● Ergonomically designed
● Fast and easily handled, requiring for one operator only
● Improve fabric quality
● Synchronize production process
● Provide objective quality reporting
● Reduce administration

SPECIFICATIONS

Model

ST-FRM-S

Speed

0-40m/min

Fabric Width

1.8-4.0 meters

Standard Roll Diameter

500mm

Fabric Relaxing Function

Roll to Plaited Fabric

Fabric Inspection Function

Plaited Fabric to Roll

Electric Specs

3Phase - 380V; 50HZ

(can be adjusted to suit for different countries)



Remark:Variable working width is possible and can be tailor-made to your requirements of processing needs.

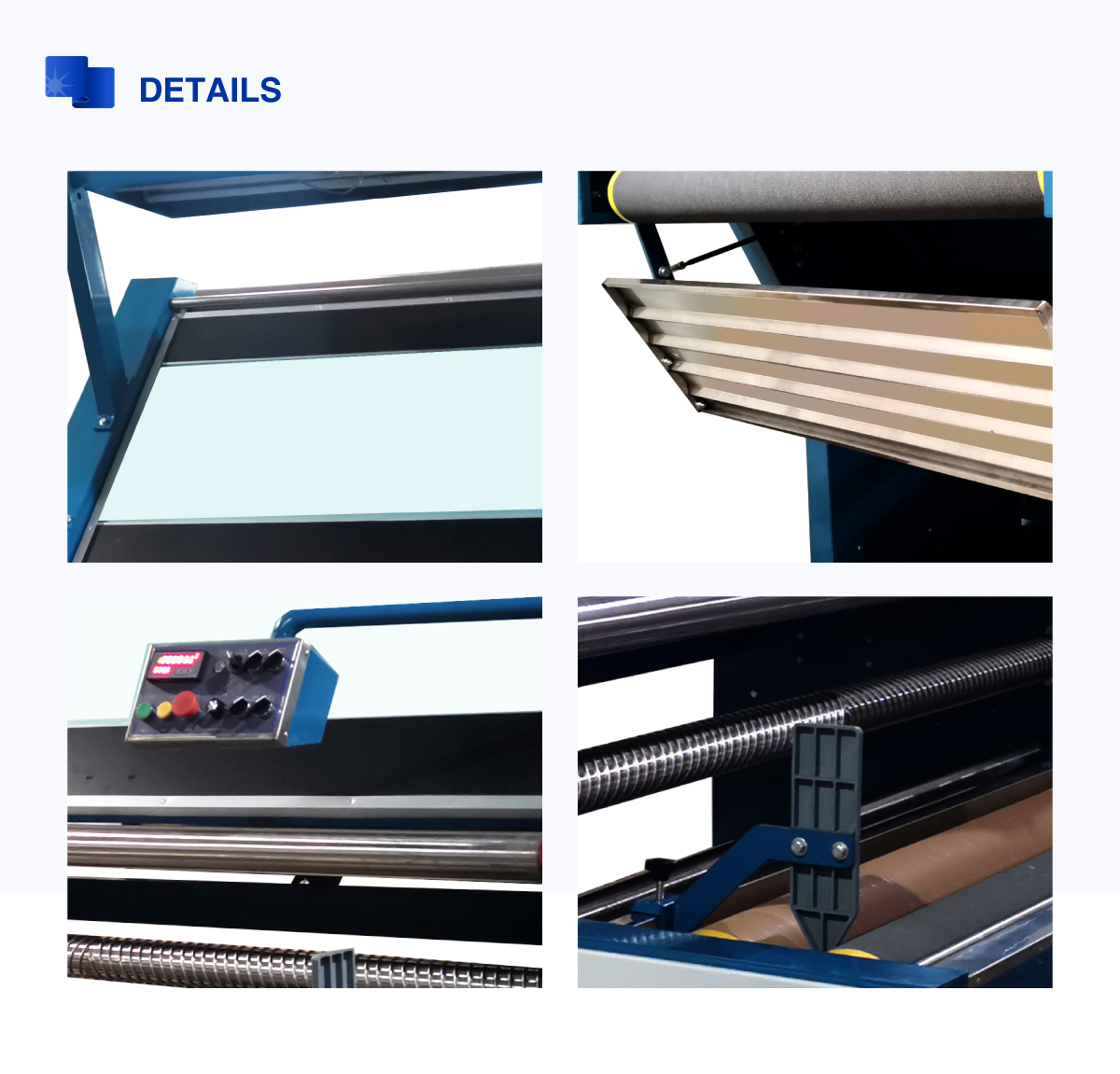

ST-FRM-S Steam Fabric Relaxing Machine:

● Steaming Generation Device as wll as Suction Device makes the full relaxation time 6-8 house only.

● Full Width Fabric Inspection: with 60 degree fixed angle inspection screen.

● Curled Edges Controlling- With scroll roller system and de-curling system for perfect roll generation.

● Accurate Fabric Edge Controlling-Edge alignment error ≤6mm

● Accurate Length Counting(Y/M)-Counting Error≤0.1m/km.

● Available for different Fabric Input and Output Presentation, like plait to roll, roll to plait etc. Synchronize with other production.

● End of roll automatic stop sensor-for next roll joining.
