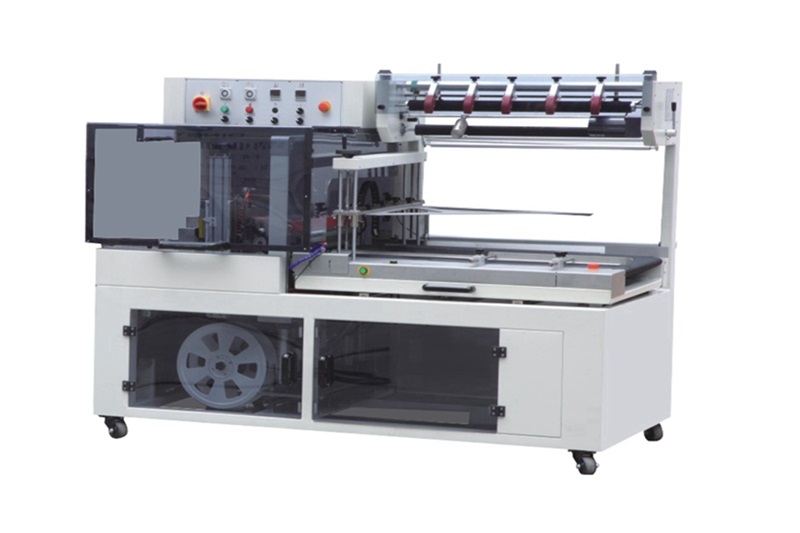

ST-CBPM

FABRIC ROLL WRAPPING MACHINE
( LINEAR FABRIC FOLDING AND PACKING LINE )
ST-CBPM Automatic Fabric Roll Wrapping Machine is used to pack cardboard bolts from the Double Folding & Lapping Machine, which is widely applicable for home textiles,suitings, etc.

ST-CBPM Fabric Roll Wrapping Machine, Fabric Bolt Packing Machine is used to pack cardboard bolts from the Double Folding & Lapping Machine, which is widely applicable for hometextiles,suitings, etc. Advantages like savings in Labour cost, in time taken for loading & unloading, clarity of goods for customs-inspection, moisture & dust proof packing etc., attract both the exporters & importers.



● Ergonomically designed
● Fast and easily handled, requiring for one operator only
● Labour and Material cost saving
● Synchronize production process
● Reduce administration



WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.

ST-CBPM Fabric Roll Wrapping Machine, Fabric Bolt Packing Machine:



Standard Packing Size: 1100X450X150mm (LXWXH)
Packing Material: POF, Film Width: 800mm; Thickness: 13-30 microns
Packing Capacity: 5-20pcs/min
Machine Dimensions(LXWXH): 2600X1050X1500mm (for standard model)
Compressed Air Pressure: 5-7bar
Electric Specs: Single Phase - 220V; 50HZ (can be adjusted to suit for different countries)
Remark: Variable working width is possible and can be tailor-made to your requirements of processing needs.

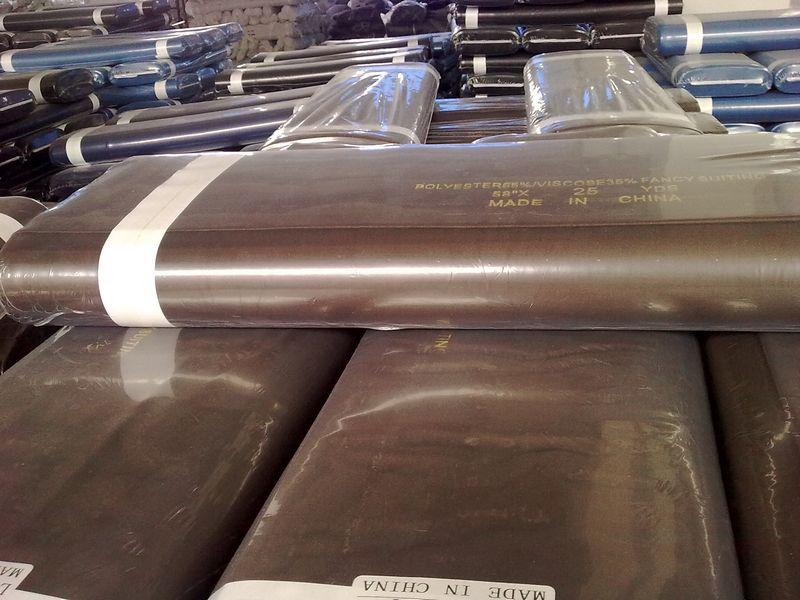

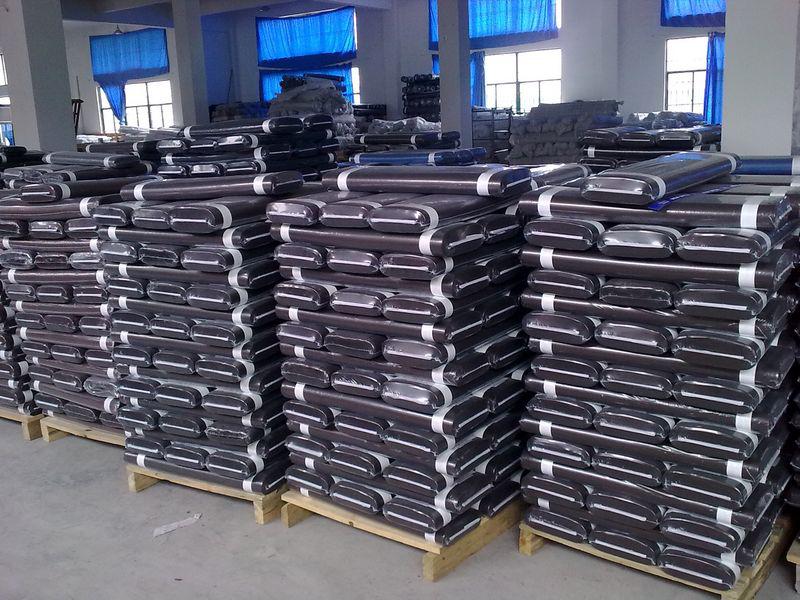

PACKED FABRIC BOLT:





ST-CBPM Fabric Roll Wrapping Machine, Fabric Bolt Packing Machine:

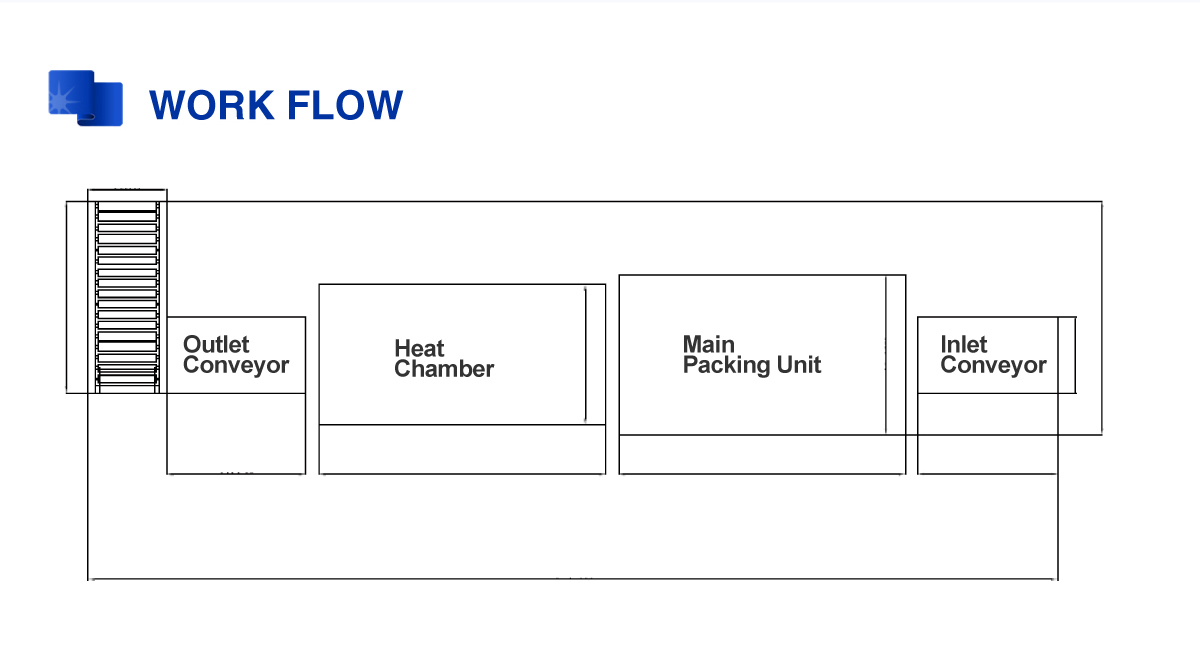

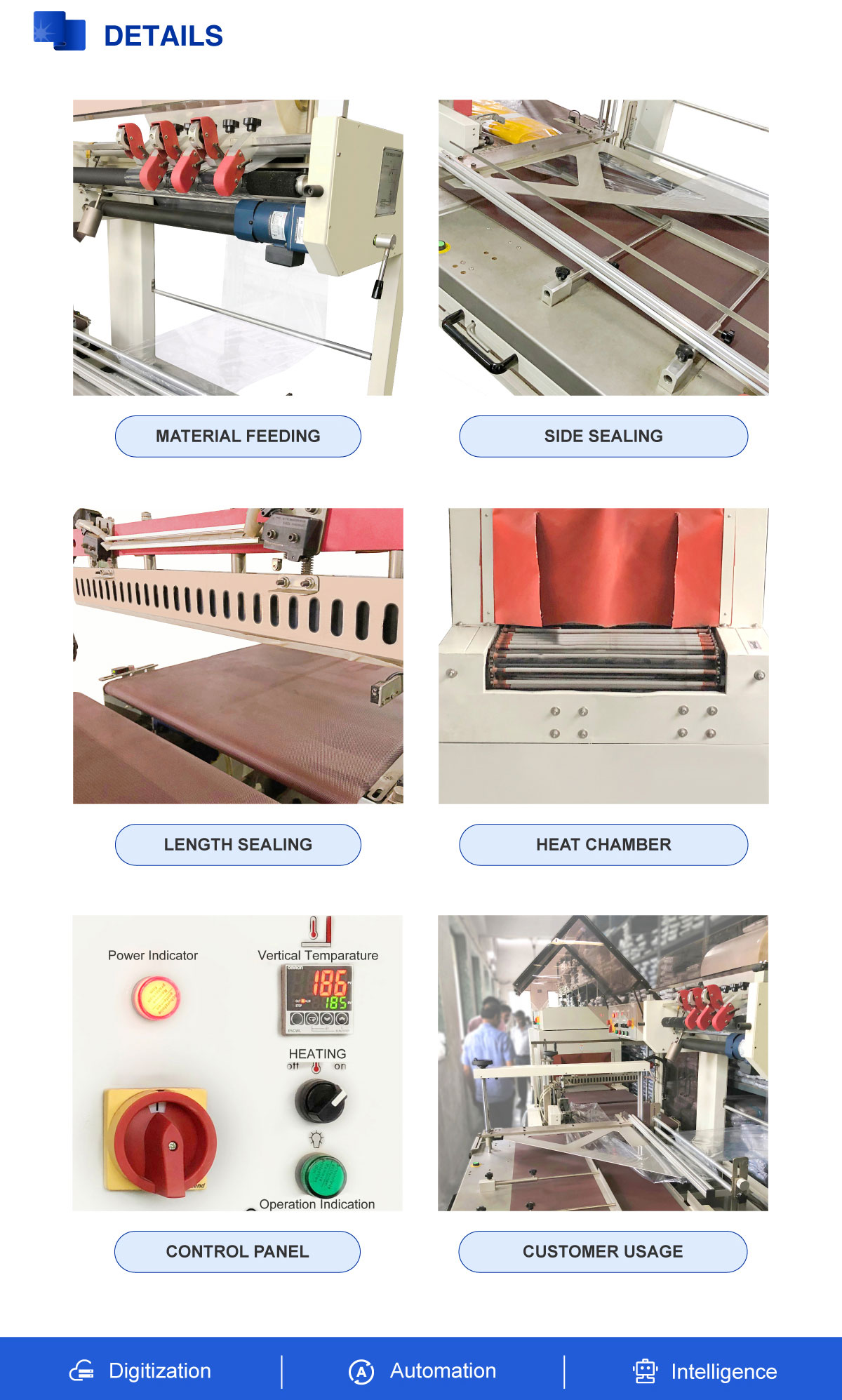

1). The cardboard bolts could be transported by the Inlet Conveyor or manually to the Main Packing Unit for both width and side sealing through polythene film.



2). The length of the coming cardboard bolts are detected by the intelligent photoelectric sensors; while the width and height could be adjusted by handle so as to ensure there will be no polythene film wastage during packing.



3). On the completion of side sealing, the packed cardboard bolts could be transferred to the Heat Chamber so as to crimp the polythene tightly over the cardboard bolts, which ensures a vacuum packing effect.



4). The complete system is PLC controlled; Easy for Operation.



5). Protective Device and Safety Controls are bulit in the machine; Safe and Reliable.



6). Option: Inlet Conveyor; Heat-shrink Machine; Roller Conveyor and Fabric Stage
