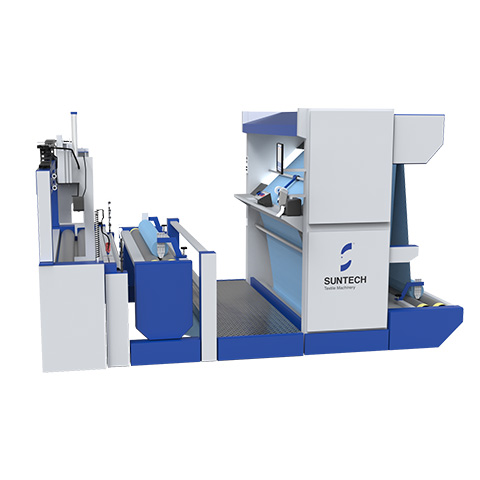

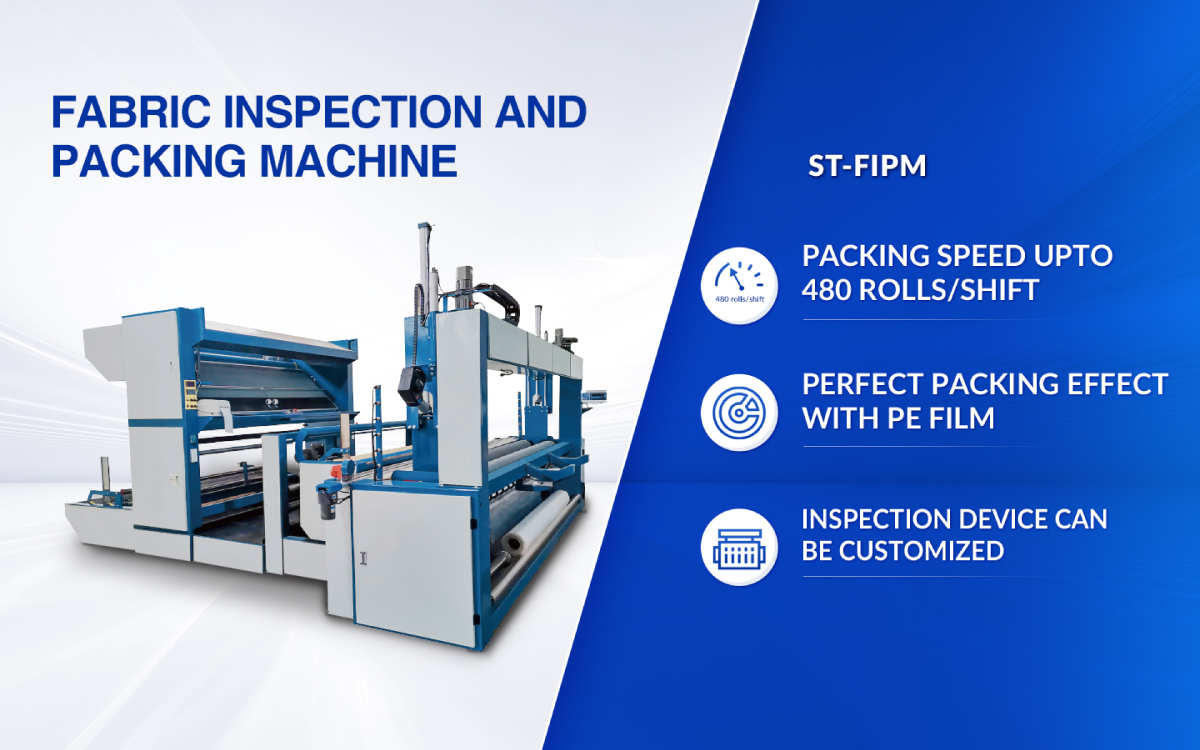

Fabric Inspection and Packing Machine

ST-FIPM

Fabric Inspection and Packing Machine

( Fabric Inspection Machine+Semi-Automatic Fabric Roll Packing Machine )

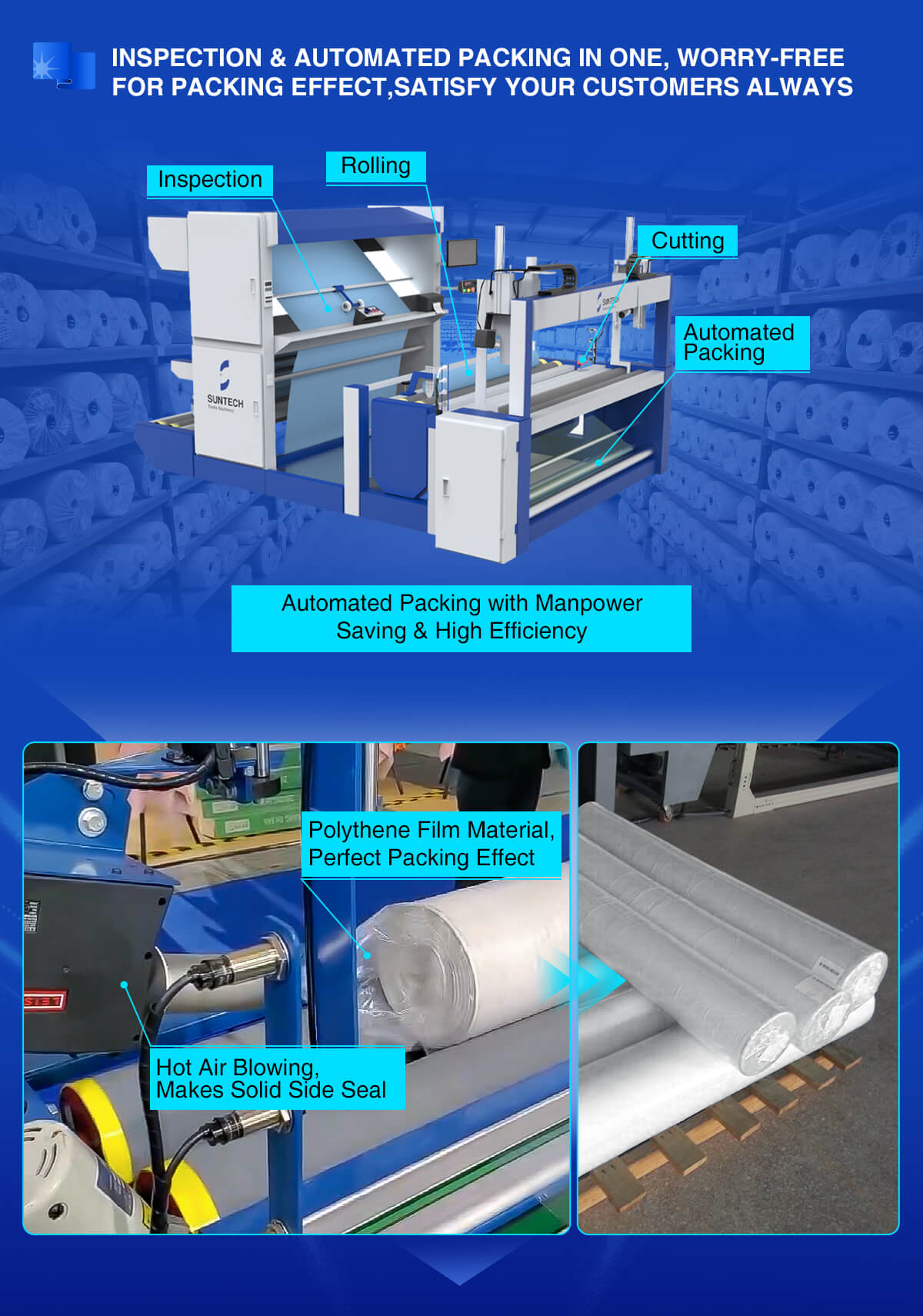

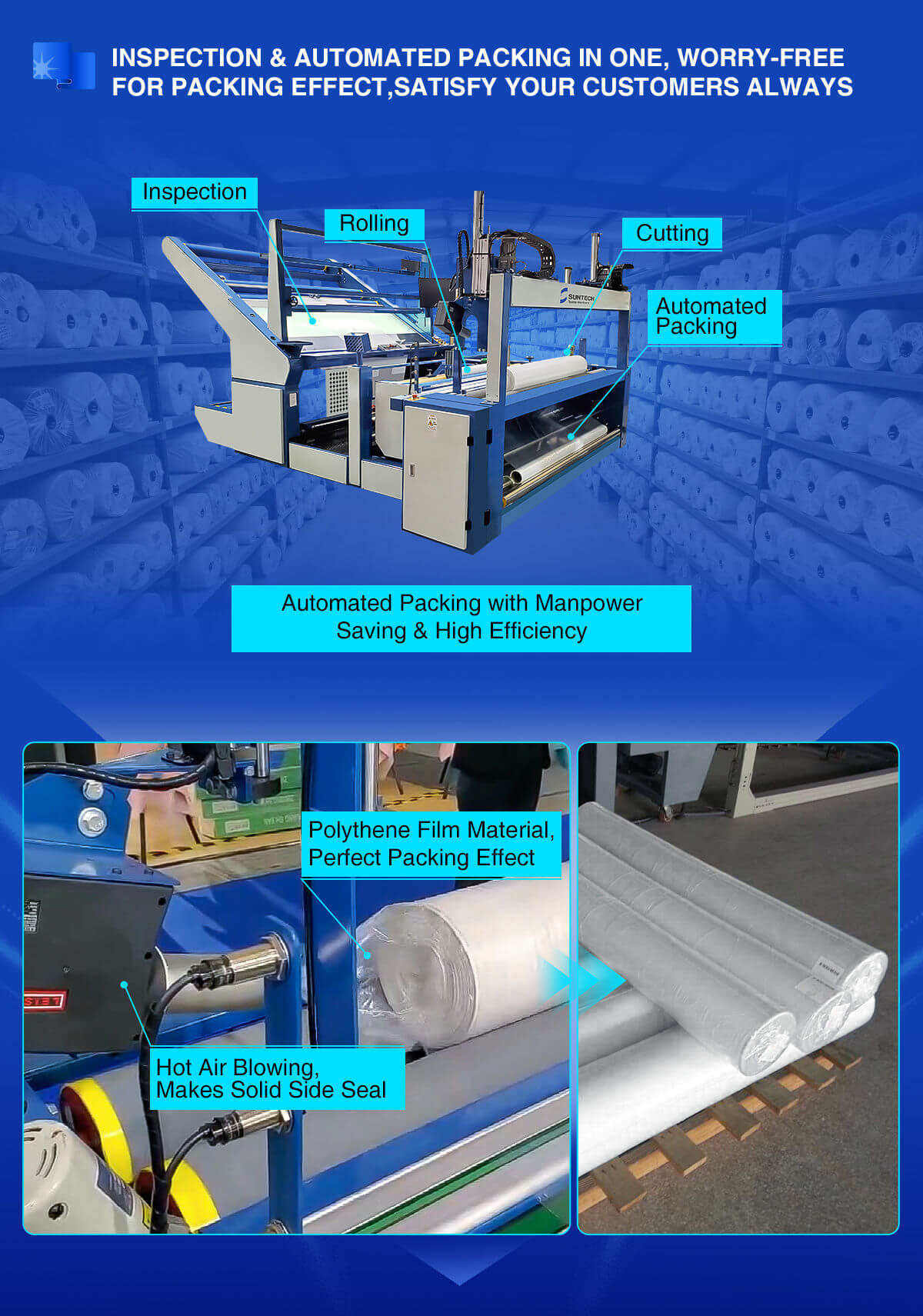

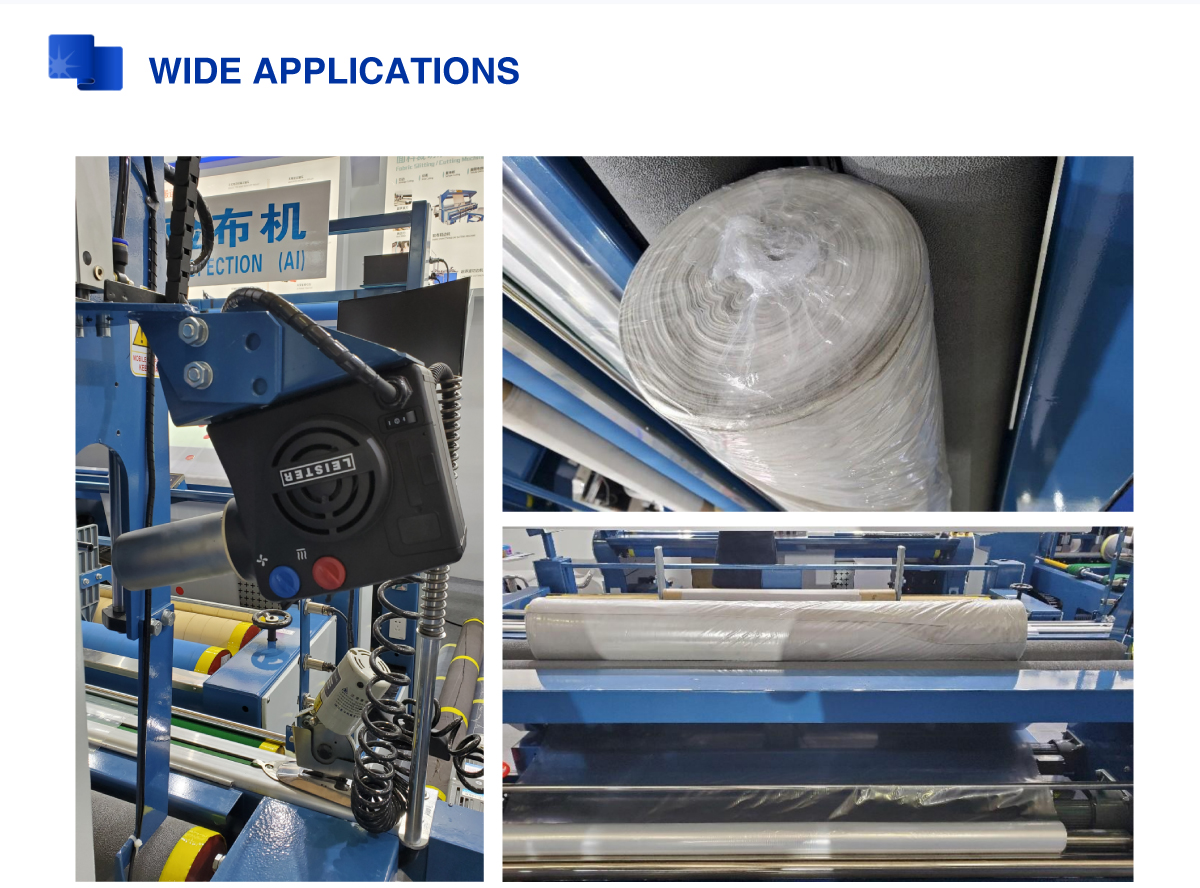

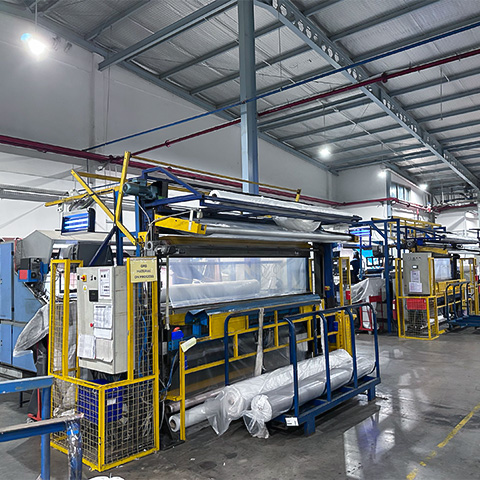

SUNTECH Fabric Inspection and Packing Machine suitable for inspecting a wide range of fabrics, including woven fabric, knitted fabric and other kinds of fabric. Besides, it is suitable for different fabric forms from roll/plaited/A-frame to roll. The roll will be pushed to the packing machine for online PE film wrapping and side punching.

  1. Auto Tensionless checking-With unique mechanical and electrical device combination for making fabric feeding, delivery and rewinding synchronous.
  2. Full width Fabric Inspection-with 45 degree fixed angle inspection screen.
  3. Curled Edges Controlling-with scroll roller system and de-curling system for perfect roll generation.
  4. Accurate length counting(Y/M)- counting error <o.1m/km.
  5. Accurate Fabric Edge Controlling-Edge alignment error <6mm.
  6. consistent Roll Output-Roll hardness adjustable.

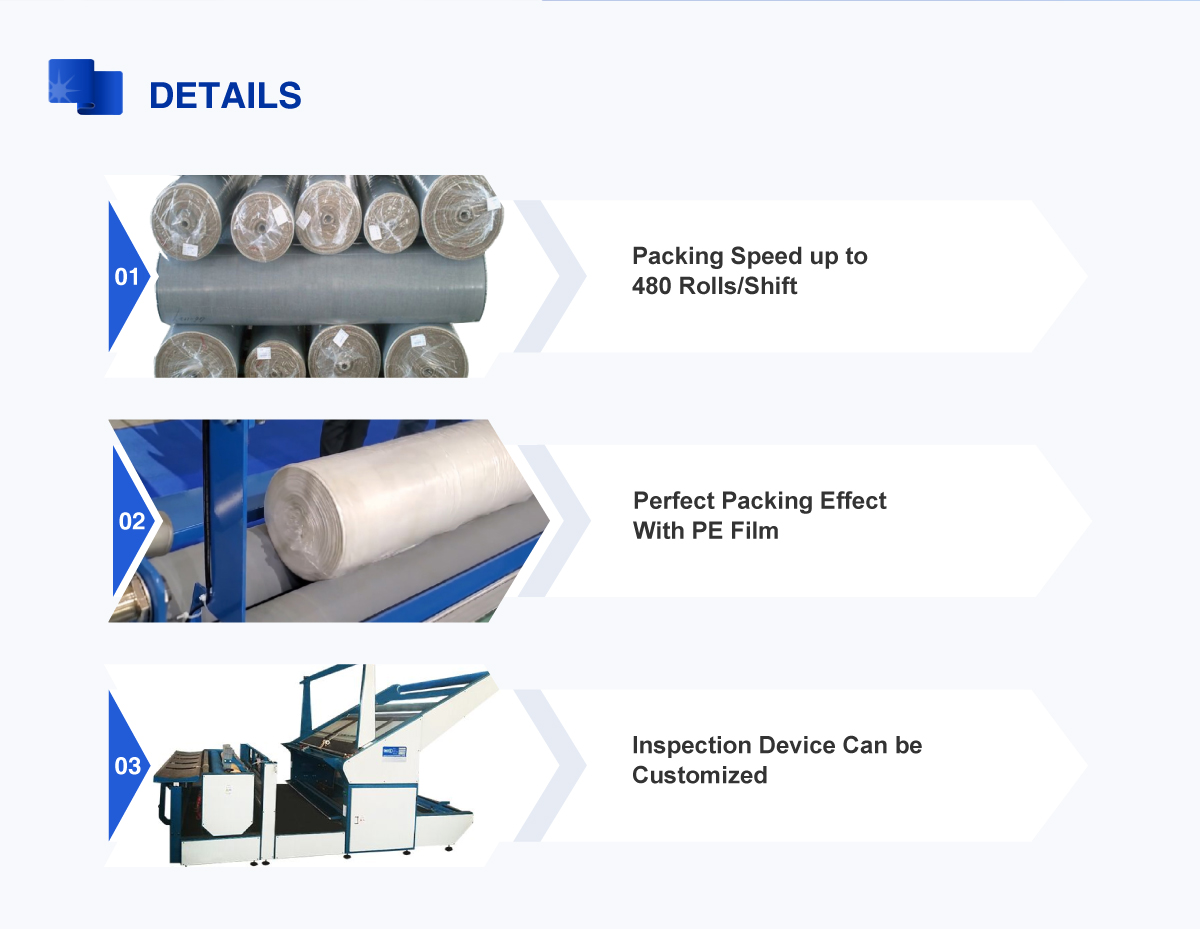

  7. Synchronize with Fabric Roll Packing Machine for online PE film packing.

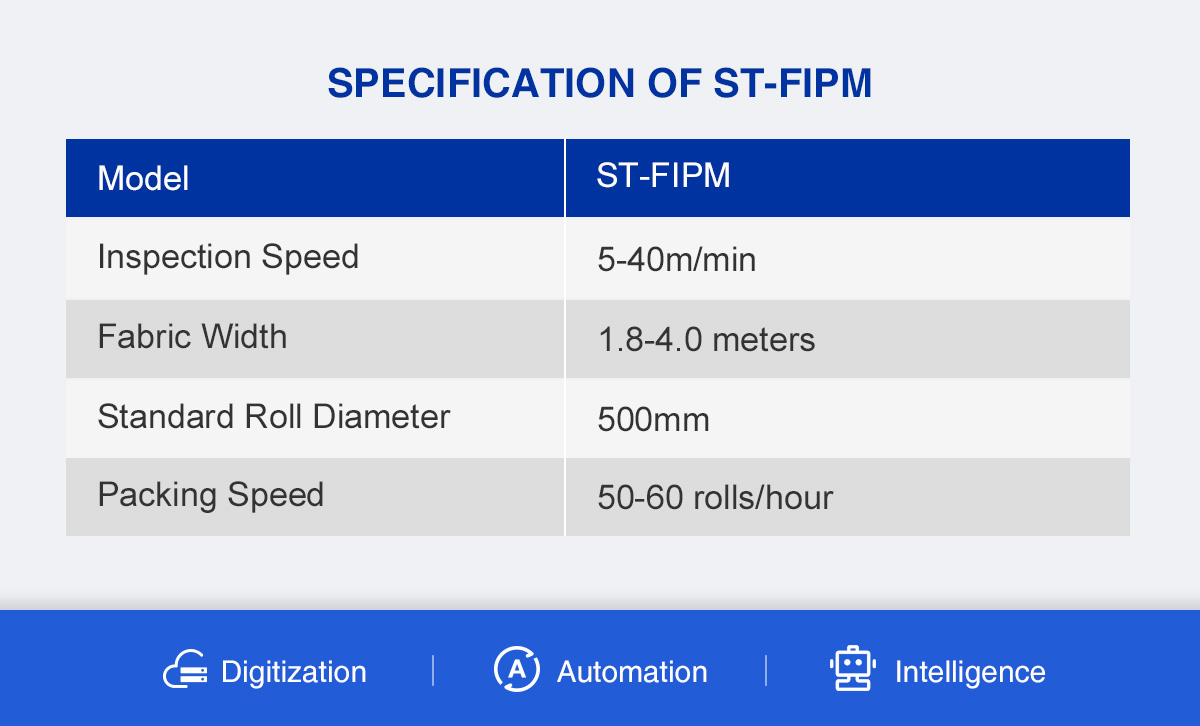

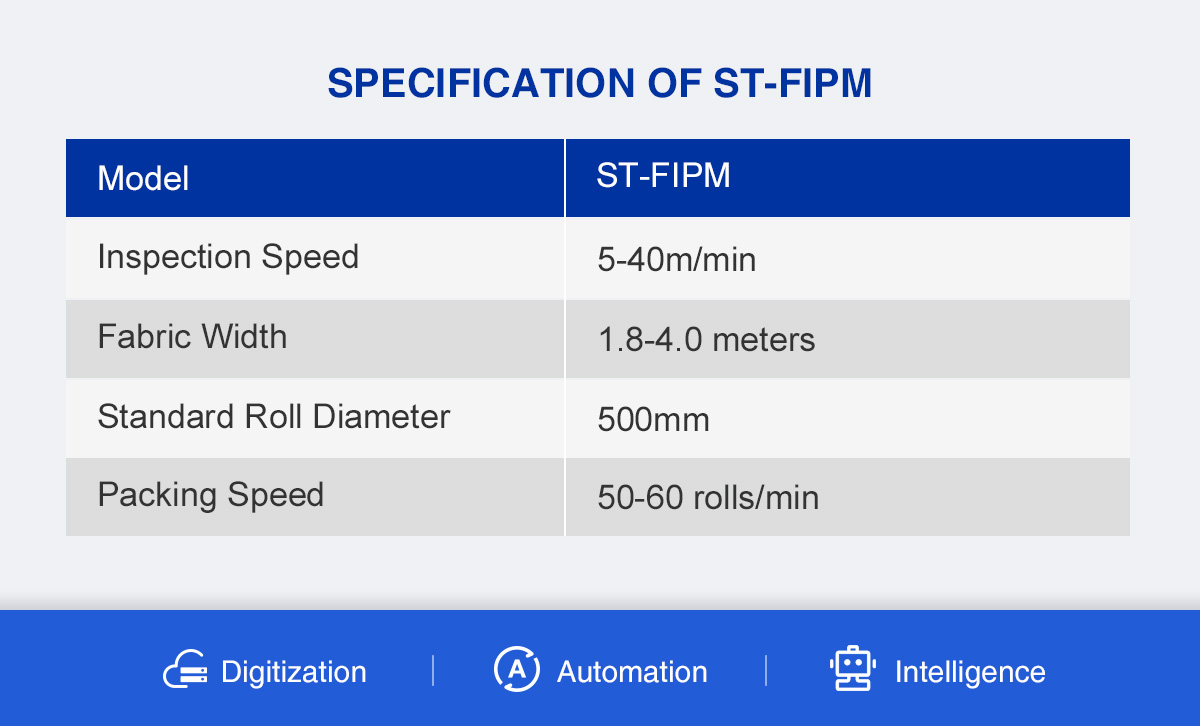

SPECIFICATIONS

Model

ST-FIPM


Fabric Width

1.8-4.0meter


Standard Roll Diameter

500mm


Electric Specs

3Phase-380V,50HZ
