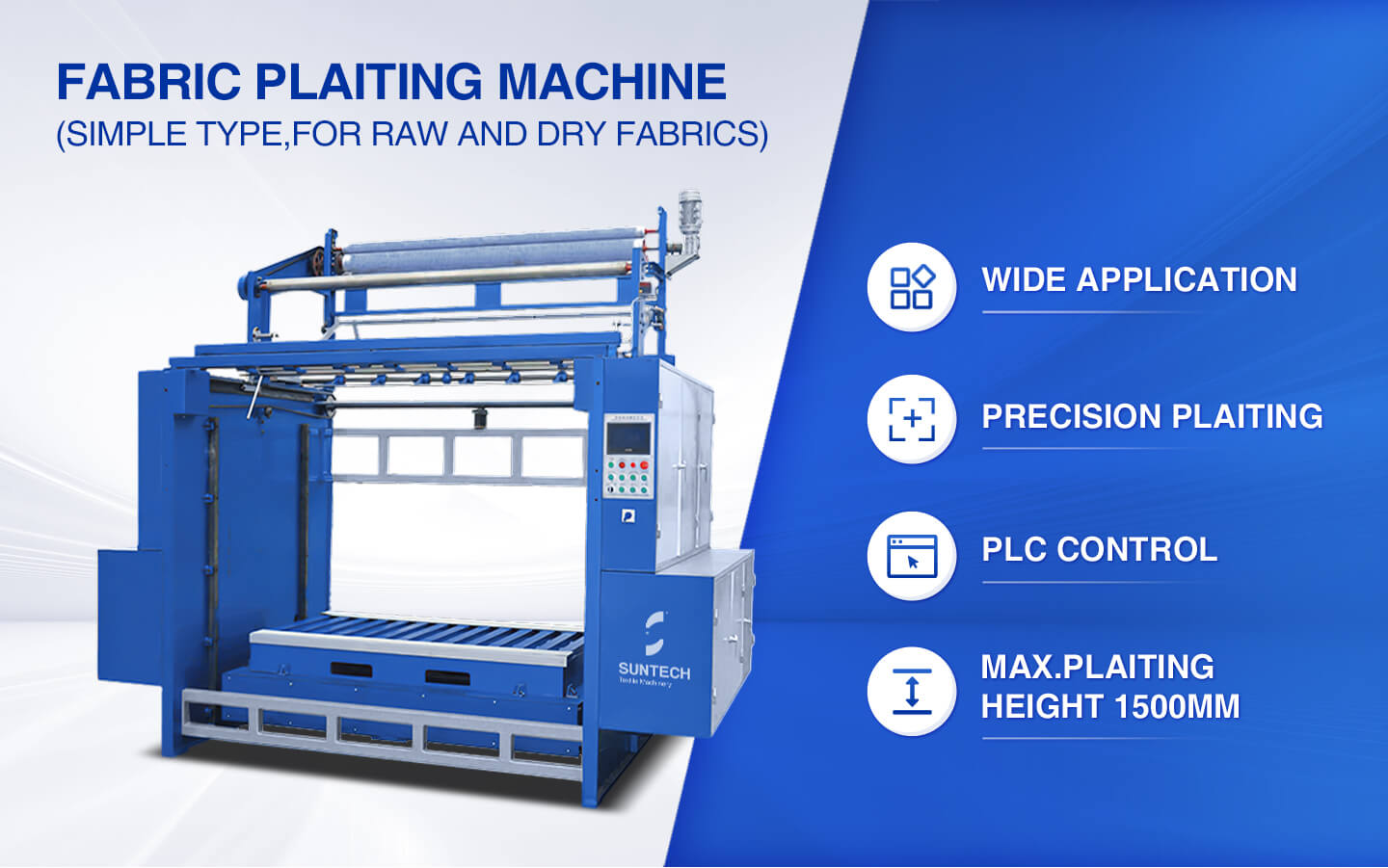

Fabric Plaiting Machine

ST-FPM-I

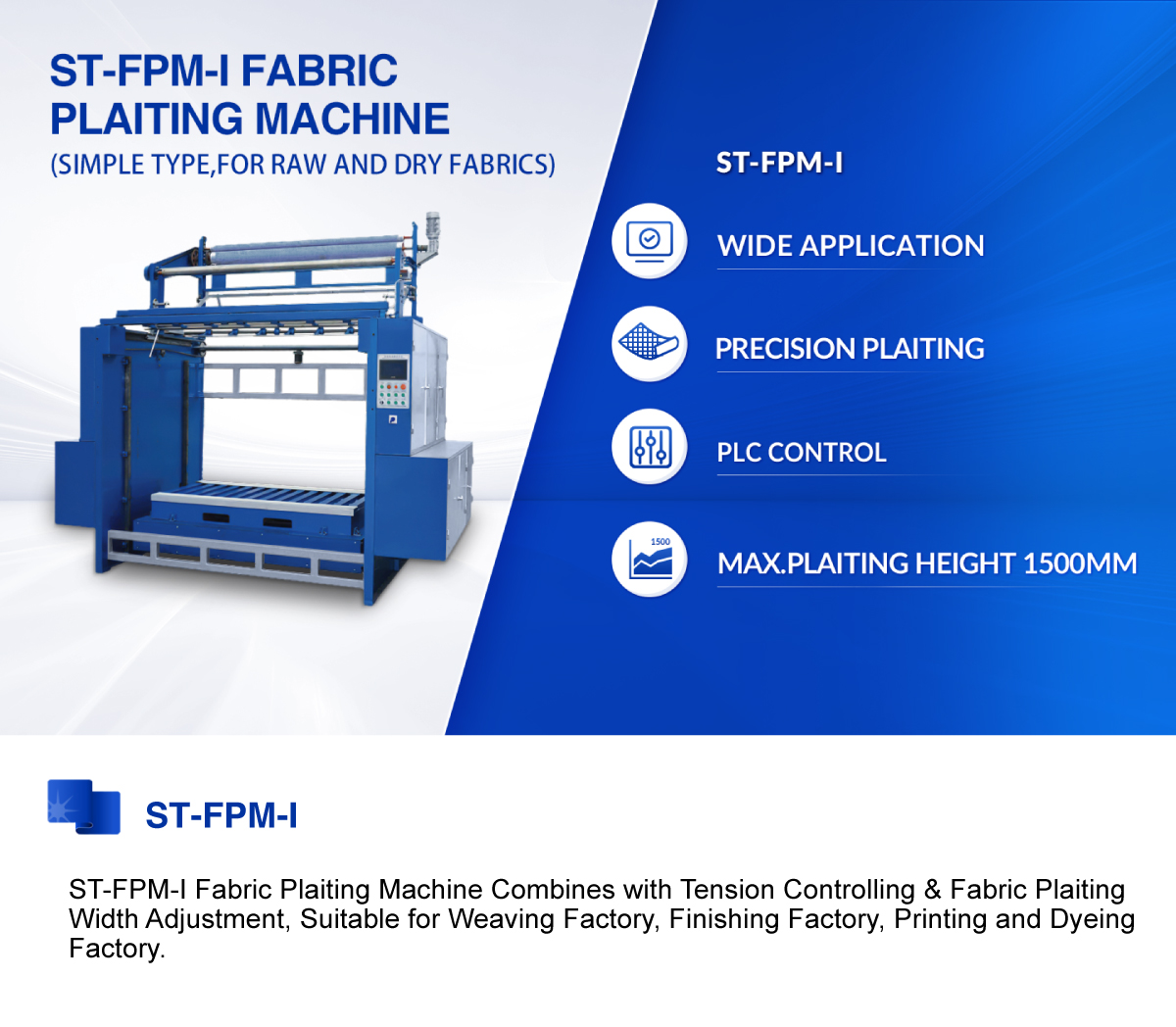

Fabric Plaiting Machine

( Max.Plaiting Height 1500mm )

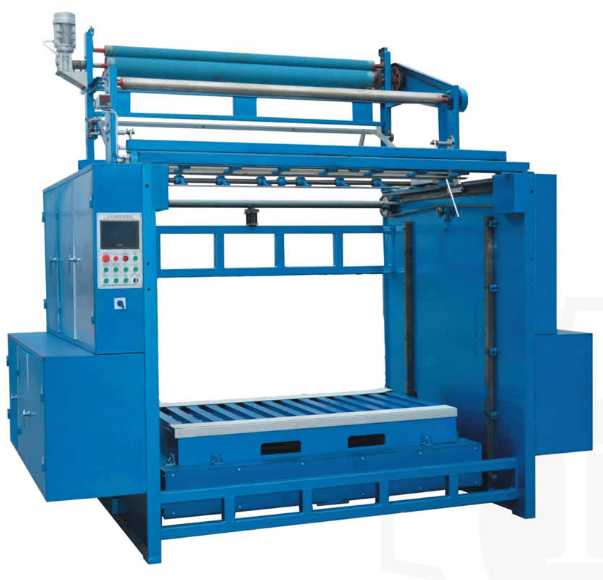

ST-FPM Fabric Plaiting Machine is equipped with PLC controlling system and hydraulic system to achieve fabric tension controlling and automatic digital fabric plaiting width adjustment, applicable for weaving factory, finishing factory, printing and dyeing factory, folding fabric into piece and counting length.

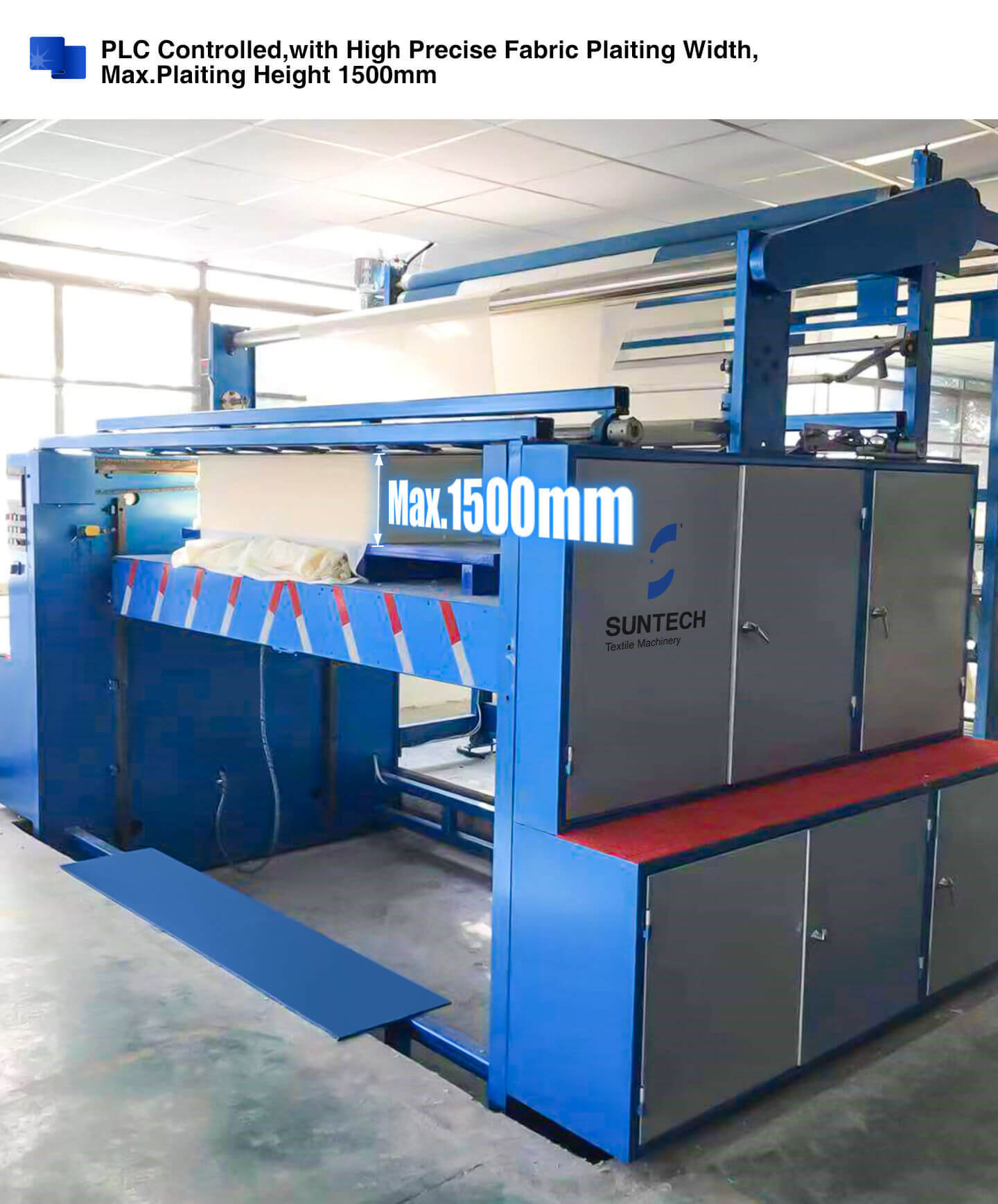

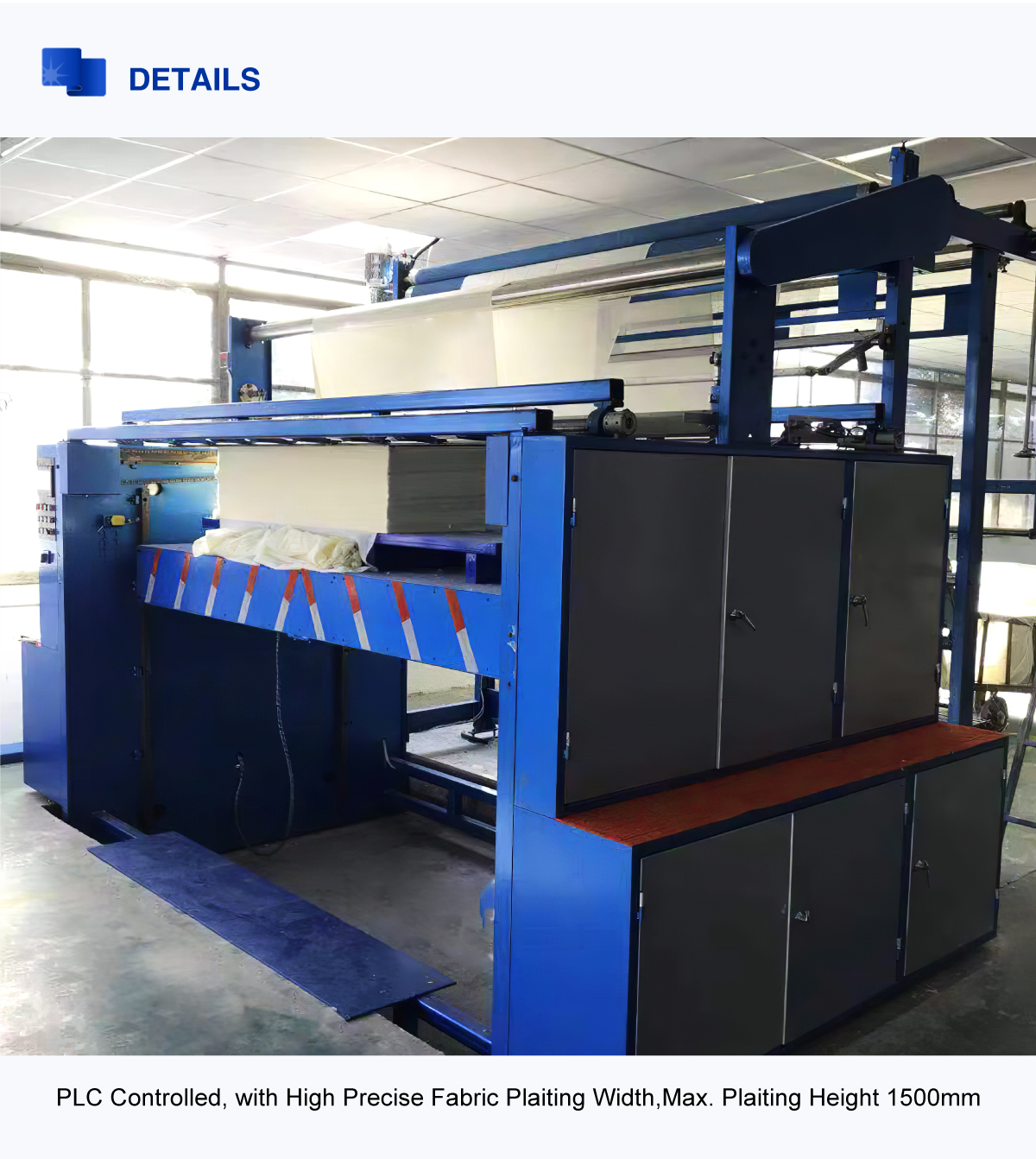

  1. Fabric reciprocating movement is controlled by PLC integrated circuit and driven by servo motor, less wearing on mechanical parts and high precise fabric plaiting width, error ≤±3mm
  2. Hydraulic fabric pressure system gives the constant pressure and achieves automatic and digital fabric plaiting width adjustment.
  3. Hydraulic lifting working table can acive max.1500mm plaiting height.
  4. Accurate fabric edge controlling, error ≤±5mm

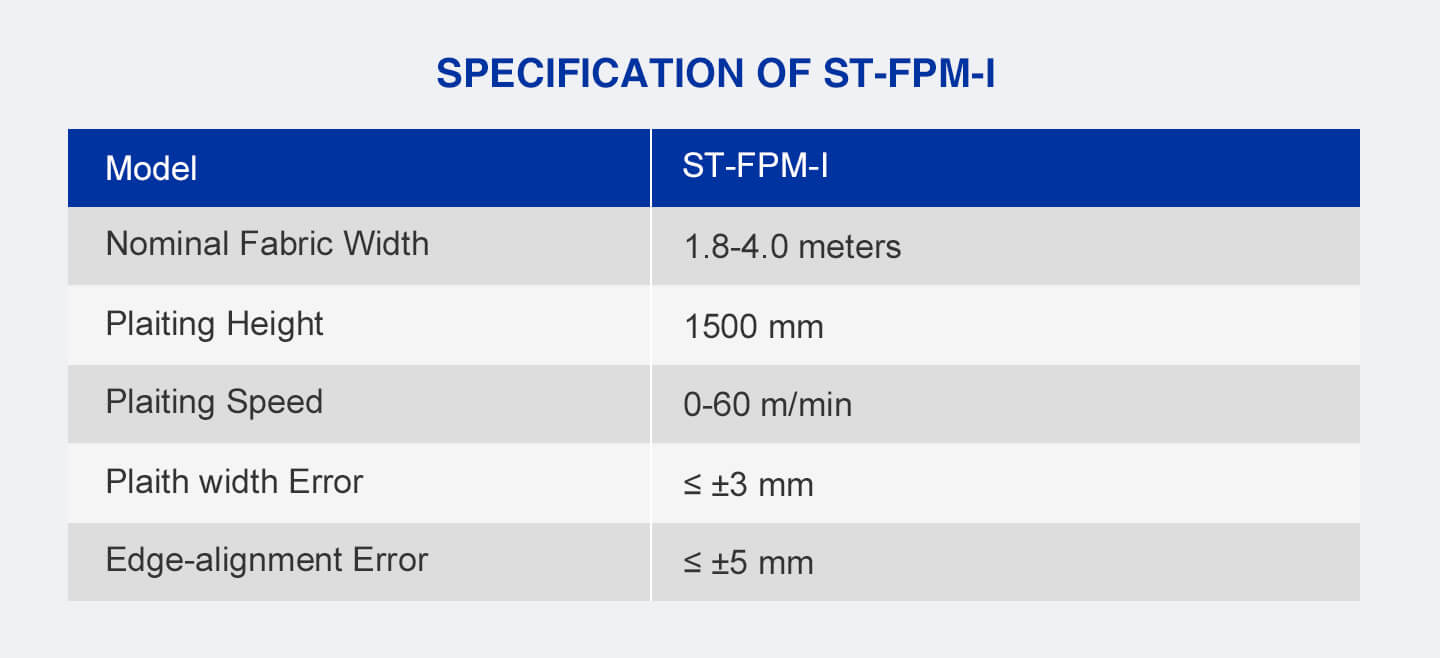

TECHNICAL SPECIFICATIONS


Model


ST-FPM-I


Nominal Fabric Width

1.8-4m

Plaiting Height

1500mm


Plaiting Speed

0-60m/min



Plaith width Error

≤±3mm

Edge-alignment Error

≤±5mm



Electric Specs

3Phase-380V,50hz(can be adjusted to suit for different countries)

Remark

Variable working width is possible and can be tailor-made to your requirements of processing needs
