As a reputable distributor of fabrics, we often have to demonstrate to our clients the wide range of textiles that are available via our business. Because of this, having a professional fabric sample display book is of the utmost importance. In addition to this, depending on the requirements of the clients, we may have to cut the fabric samples into a variety of sizes. When you have certain cutting demands for a huge volume, what is the best way for us to handle them? In this essay, I will provide a comprehensive overview of the features that can be found on SUNTECH's fully autonomous fabric cutting machine/fabric strip cutting machine. I have no doubt that this equipment can cater to your pressing requirements.
I.What does it mean for a fabric cutting machine to be totally automatic?

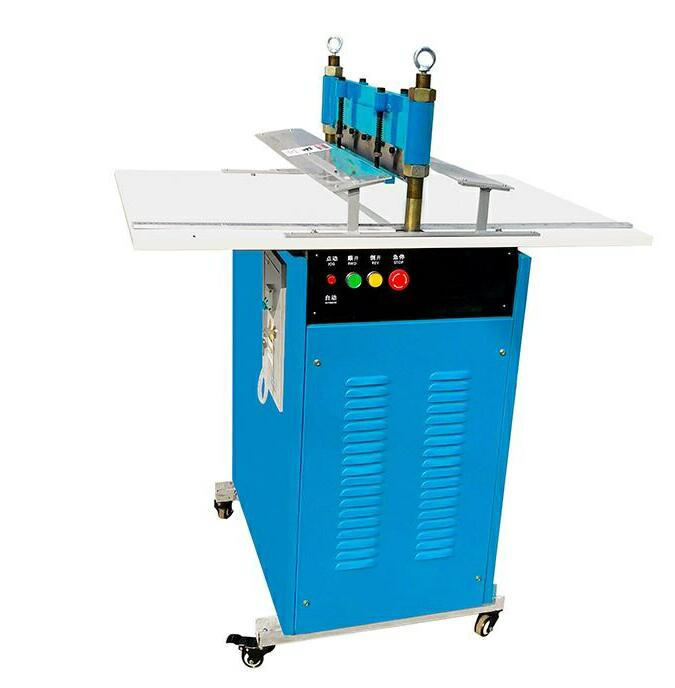

ST-ASCM is used in the process of cutting cloth samples for mass production to provide either appealing zig-zag edges or flat edges. It works well with natural and fake leather, felt, carpet, and other kinds of materials, in addition to leather and artificial leather. It is controlled by a PLC, and after the cutting size (both length and width) has been set on the Touching Screen, the machine will cut the cloth in accordance with the parameters you've specified.
II. How to operate an automated machine for cutting fabric?
The first step is to make sure the cabinet switch is turned on in the clockwise direction. Once this is done, the PLC system and the touching screen will be ready to go.
Step 2: To return the iron frame to its initial position, you will need to press the "Reset" button.
Note that in the event that the iron frame is not in its initial position, the machine will not operate when the "start" button is pressed.
Step 3: Setting the Parameters To specify the cutting size and the number of cuts for both the A side and the B side, press the "set" button.
Step 4: To let the iron frame to move into the ready cutting position, press the "Start" button.
Step 5: To light up the laser, press the "Laser" button. This laser is used to ensure the precision of the cutting.
Step 6: To move the cloth into the initial cutting position that the operator anticipates, press either "Forward" or "reverse" or "inching."
Step 7: To allow the machine perform its initial cut at the operator's predicted first cutting position, press the "Single cut" button on the machine's control panel.
Step 8: Once you press the "Auto cutting" button, the machine will cut automatically depending on the cutting size and number that have been pre-set.
When the cutting on the A side is complete, the iron frame will move into the top position on its own. (When you touch the screen's display, the image will automatically flip from the A side to the B side.)
Step 9: With a clockwise motion, depress the turntable handle and do a minor manual rotation of the turntable to complete the 90 degree turn.
(The cutting should begin automatically on its B side.)
Step 10: The cutting process for the B side will need you to repeat the steps from the previous section (Steps 4 to 8), and after the B side has been cut, the iron frame will be returned to its starting position.
III.What attracted you to the fully automated cloth cutting machine offered by SUNTECH?
1)PLC CONTROL - The automated fabric cutting machine is able to function in a more steady manner. According to the fundamental idea of the PLC system, it shouldn't be a problem to trim the size down to 10mm by 10mm.
2)TOUCHING SCREEN OPERATION makes the operation more simpler and easier to use.
When it comes to the design of machines, SUNTECH places a significant emphasis on the protection of the people who will be using them. SUNTECH has installed four pieces of hand protection safety light curtains to ensure that the user of the machine does not sustain an injury while operating the device. When the sensor is blocked by any object or by a person's hand, the machine will immediately stop.
4) The motor power of the SUNTECH is 5.5 kilowatts, and the cutting height is 80 millimeters. The motor power of other vendors is just 2.2 kilowatts, and the cutting height is only 50 millimeters.
5)SUNTECH machine components use well-known brand components, such as the Schneider contactor, air switch, and overload protector from France, amongst other examples...
The SUNTECH automated fabric cutting machine is your best option if you often struggle with challenges related to cutting big batches of cloth. Suntech is a business that operates on a global scale and has decades of history in addition to its extensive expertise. Suntech's success and expansion in the home market have not been hindered by the company's worldwide vision and ambition. With over 4,500 satisfied clients and 15,000 successful installations in countries all around the globe. Please get in touch with us at sales@suntech-machine.com if you are thinking about purchasing this machine.
