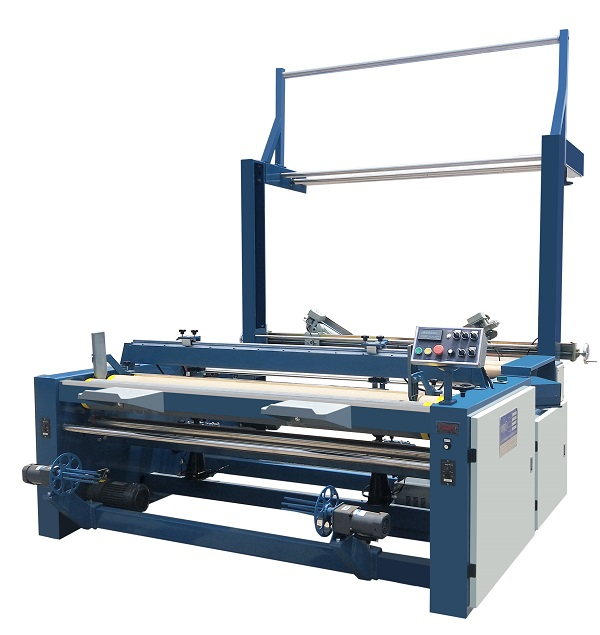

In the dyeing and finishing factory, when the customer encounters a vacuum or burr on the selvedge of the dyed and finished fabric, it is usually necessary to cut the selvedge during winding. Or when making some final products that only require narrow-width fabrics, customers usually need to cut wide-width fabrics into narrow-width fabrics. At this time, our fabric strip cutting machine can perfectly meet the needs of customers and provide production efficiency. We highly recommend SUNTECH's fabric strip cutting machine ST-USCM
I. Function
1. Selvedge cutting function
We can add a cutting device to each end of the machine, so that the edge can be trimmed during the winding process of the fabric.
2. Strip cutting function
We can add the cutting device in the middle of the machine according to the customer's demand for the number of trimmings, then the strips can be cut during the fabric winding process.
II. Cutting Type
1. Ultrasonic cutter
The ultrasonic cutting machine uses the energy of the ultrasonic wave to heat and melt the part of the material to be cut, so as to achieve the purpose of cutting the material. Ultrasonic cutting does not require a sharp blade, does not require a lot of pressure, and will not chip or damage the cutting material.
At the same time , the cutting part has a fusion effect. The cutting area is perfectly edged to prevent the loosening of the material being cut (eg, flashing of textile materials). The use of ultrasonic cutting machine can also be extended, such as digging holes, shovel digging, scraping paint, carving, slitting and so on. The cutting blade is vibrating ultrasonically, and the frictional resistance is very small, and the material to be cut is not easy to stick to the blade. It has obvious cutting effect on frozen, viscous and elastic materials. It is particularly effective for cutting objects such as food, rubber or inconvenient pressure.
We use the cutting board type cutting method to load the ultrasonic vibration on the cutting bottom mold. This bottom mold is like the cutting board used in life, which makes the cutting board produce ultrasonic vibration, which can also have the effect of cutting, and the cutting tool does not need to be cut. To make any changes, just use normal cutter.
2. Heat cutter
The cutting blade could do electrical heating before cutting fabric edge.
3. Dry cutter
Dry cutter is a cutting method that uses technical means or methods that do not generate high temperature during the cutting process, so that the material to be cut maintains the original material characteristics, and the temperature during the cutting process does not change drastically, usually the temperature rise does not exceed 40 degrees Celsius. The cutting effect is similar to cutting with scissors, and some fabrics may have burrs.
4. Laser cutter
Laser cutting is an advanced and widely used cutting process in material processing. It is a processing method that uses a high-energy-density laser beam as a "cutting tool" to thermally cut materials. Laser cutting has the advantages of being silent, edge-sealing, and pollution-free, but the price is relatively high.
III. Machine advantage
1. Have four kinds of cutter which can suitable for various kinds of fabric
2. Pneumatic centering roller and cloth guide make sure the fabric in the center of machine, avoid fabric deflected.
3. Deviation correction roller makes sure the fabric edge aligned before prefect cutting
4. Popular brand components makes sure the stable running.
SUNTECH is a professional worldwide enterprise with decades of experience and research. We are committed to providing customers with excellent products and customized service. Our experienced experts will offer customers timely and effective integrated services in pre-sales consultation, sales, maintenance, and comprehensive after-sales support, giving customers the ultimate and comprehensive service experience. If you are interested in the fabric strip cutting machine/cloth cutting machine, please contact us freely. We will provide a complete solution according to your needs.
