As a professional fabric distributor, we often need to show our customers the variety of fabrics we can sell. Therefore, a professional fabric sample display book is very important. And we may have to cut into different sizes of fabric samples according to the needs of customers. When you have these high-volume cutting needs, how should we deal with them? In this article, I will introduce the functions of SUNTECH's fully automatic fabric cutting machine in detail. I am sure this machine can meet your urgent needs.
I. What is fully automatic fabric cutting machine?
ST-ASCM is used to cut fabric samples with attractive zig-zag edges or flat edges for mass production. It is suitable for all types of fabrics as well as for leather artificial leather, felt, carpet, etc.It is controlled by PLC, Setting up the cutting size(Length & Width) on the Touching Screen and machine will cut the fabric accordingly.
II. How to use automatic fabric cutting machine?
Step 1: Turn on cabinet switch in clockwise direction, then PLC system and touching screen will be ready for work.
Step 2: Press “Reset” to let the iron frame back to its original position.
Note: when iron frame is not in original position, machine will not operation when press “start”.

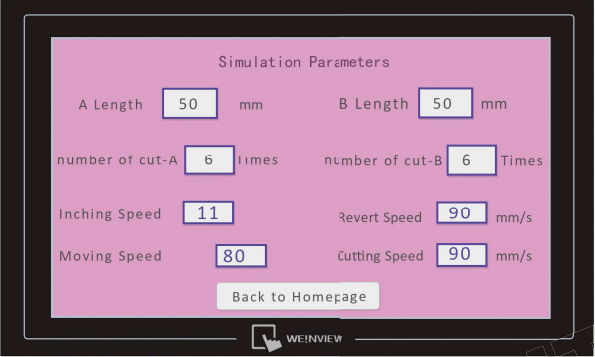

Step 3: Parameter setting: Press “set” to set the cutting size and no. of cut for A side and B side.
Step 4: Press “Start” to let the iron frame step into ready cutting position.
Step 5: Press “Laser” to lighten the laser, this laser is used for cutting accuracy.
Step 6: Press “Forward” or “reverse’” or “inching” to let the fabric in operator’s expected first cutting position.
Step 7: Press “Single cut” to let the machine make its first cutting in operator’s expected first cutting position.
Step 8:Press “Auto cutting”, then machine will cut automatically based on pre-set cutting size and cutting Number.
When the cutting is over in A side, the iron frame will step into the top position automatically. (Then touching screen’s display will switch from A side to B side automatically)
Step 9: Press down the turntable handle in clockwise direction, and turn the turntable 90 degree slightly by hand
(Start its B side cutting automatically)
Step 10: The B side cutting need will repeat above step (Step 4 to 8), after cutting B side finished iron frame will go to original position.
III. Why you choose SUNTECH fully automatic fabric cutting machine?
1) PLC CONTROL - the automatic fabric cutting machine has more stable operation. According to the principle of PLC system, it is no problem to cut the size even 10*10mm
2) TOUCHING SCREEN OPERATION make the operation more easily.
3) HIGH SECURITY- SUNTECH attaches great importance to the safety of operators when designing machines. In order to avoid injury to the operator while using the machine, SUNTECH has added 4 pcs of hand protection safety light curtains. When any goods or hands block the sensor, the machine will stop automatically.
4) SUNTECH motor power is 5.5kw, cutting height is 80mm. While other suppliers motor power is only 2.2kw, cutting height is only 50mm.
5) SUNTECH machine components adopt famous brand components, like French "Schneider" contactor, air switch and overload protector etc...
If you are troubled by large batch cutting problems, SUNTECH fabric strip cutting machine is your best choice. Suntech is a world-wide acting enterprise with decades of tradition and experience. Suntech’s global vision and ambition has not limited its success and growth in the domestic market. With more than 4,500 customers and 15,000 installations around the world. If you are interested in this machine, please contact us by sales@suntech-machine.com
