In the post-epidemic era, China's industry has recovered rapidly, and its economic aggregate has achieved positive growth. The demand for textile machinery abroad is gradually picking up, SUNTECH provides textile machinery to customers stably, and now tubular fabric strip cutting machines are also very popular!
Fabric Slitting Machines is widely used in knitting mills. And the tubular fabric automatically slitting machine is a fabric slitting machine applied to tubular knitted fabrics. It includes the functions of fabric slitting, opening, washing, softening and water pressing.
The above briefly introduces the relevant information of the tubular fabric slitting machine. According to the dryness and wetness of the applicable fabric, SUNTECH's tubular fabric slitting machine also has corresponding models.

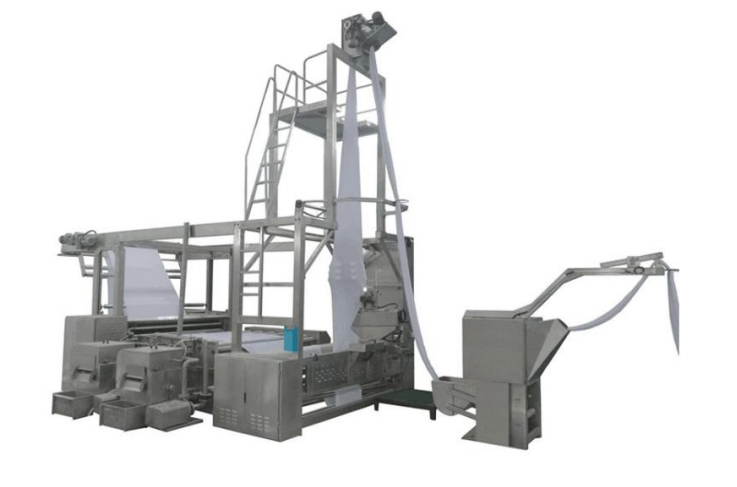

For the evolution type and for raw and wet fabric, the ST-TFSM-01 will be suitable. ST-TFSM-01 Is mainly applicable after rope dyeing. It is used to slit&open roped fabric and has been specially designed for continuous high speed operation in automatic mode.The machine material could be A3 Steel or Stainless Steel,which could be suitable for both raw and wet fabrics.

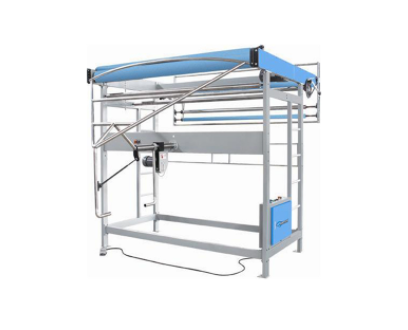

For simple type and for raw and dry fabric, the ST-TFSM-02 will be recommended. ST-TFSM-02 allows the cutting and the opening of the tubular raw fabric from roll. The cut on the fold of the fabric is made by a disk cutter whose position is adjustable in width depending on the size of the roll. The machine uses a motor with variable speed from 0-60 m/min.
Here I want to introduce the advantages of ST-TFSM-01:
1. Raisable Frame and Automatic Detwister: Automatic detwiser for fabric rope. The signal from feeler is picked up by proximity switches. Fabric rope engagement is by means of rotary opening rollers.
2. Slitting Basket: By means of a handwheel, the diameter of the round basket can be expanded from 320 to 800mm, so as to facilitate the spreading of fabric and prevent permanent weft distortions, as may be generated by the slitting process.
3. Needle Drop Sensor: Needle drop sensor can detect the needle drop on the fabric and adjust the basket to place the fabric in proper slitting position. Both slitting and rope opening function.
4. Spreading-Centering Unit: It automatically open the fabric and then center it, to ensure that the fabric is alignment in the center of the machine.
5. Hydraulic turntable-option: Controlled by fluid power,1800mm diameter, for fabric carriage rotation in heavy duty conditions. It facilitate the operation of rope detwisting after washing or dyeing. The hydraulic is a extra option and if you need it, we can add such device.
6. Squeezing Unit for Fabric Ropes - Option: Squeezing unit J-box with an oscillating chute for self adjustment of speed, to be installed on the entry of the line to reduce the quantity of water contained in the fabric.
And for the ST-TFSM-02, there are two points can be paid attention. One is simple fabric input control, the fabric input from free sunning or motor driven rollers for simple and effective control. And another is end of roll automatic stop sensor. When the sensor senses that there is no fabric, it will automatically stop and allow the next roll joining.
As for a reliable manufacture, SUNTECH choose stainless steel for wet tubular Slitting Machines,extend slitting machine life. German brand E+L slitting cutter photo sensor can detect the needle drop on the fabrics accurately,slitting and opening the fabrics. SUNTECH keeps learning frontier technology,focus on technical details, to provide effective after-sales services and onsite services so as to ensure customers' satisfactory level is high.
If you are interested in SUNTECH's tubular fabric slitting machine/non woven fabric slitting machine, come and learn about it!
