Are you working in a textile factory or in a textile-related industry? Do you need to rewind the fabric into card board or fabric roll? If yes, then you must will be interested in our double folding and sewing machine, ST-DFLM Textile Folding Machine is for woven, tulle, jacquard ... fabrics. This machine can be supplied to operate fabrics from plait/loose form to fabrics on slab/card board, or with various other fabric inlet options.

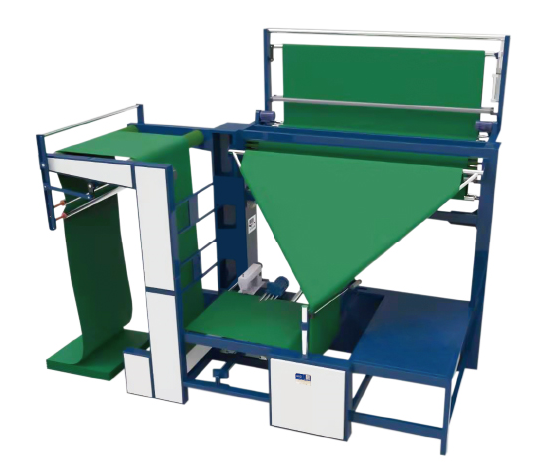

double folding and sewing machine

First, let's take a look at double folding and sewing machine features:

1). Doubling, lapping, measuring any type of fabrics with inlet from plait/loose fabrics, rolls or batchers and with outlet on slabs/card board.

2). For proper folding, special systems for thin and sensitive fabrics.

3). Automatic alignment of selvedge on the doubling triangle with very sensitive and precise photo-electric guide.

4). Reliable measuring with electronic calibrated counter meter system.

5). Hard or loose folding feature, due to torque controlled, from inlet of fabric to end of fabrics on slab/card board.

6). Foot switch is used to withdraw the finished fabrics and send the empty sword plate.

7). Automatic printing on selvedge, checking table, printing of measuring - Optional

According to above features, the double folding and sewing machine will do have many advantages as below:

1. Ergonomically designed

2. Fast and easily handled, requiring for one operator only

3. Improve fabric quality

4. Synchronize production process

5. Reduce administration

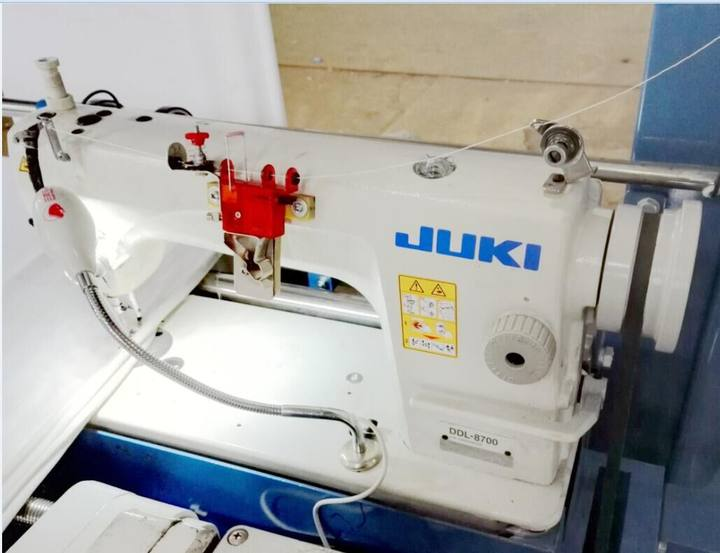

double folding and sewing machine

Folding machine is a kind of finishing equipment in industrial washing machinery. It has been used in my country since the early 1980s, mainly in five-star hotels and some large professional laundry factories, and almost all of them were imported equipment at that time. Some Chinese manufacturers began to produce folding machines in the 1990s, mainly imitating foreign bed sheet folding machines. Until around 2008, there were no manufacturers in my country that produced towel folding machines. By this time, there were many manufacturers producing bed sheet folding machines. 2010 was the most prosperous year for my country's folding machine production and sales. Large and small washing machine manufacturers have invested in research and development or mass production. This is because in recent years, due to the increase in labor costs, many laundry factories have deeply felt the superiority of using folding machines. Especially in some large laundry factories, there are thousands of towels and bath towels that need to be folded every day, which is very labor-intensive. The market opportunity for towel folding machines is thus created, but the high price of imported towel folding machines discourages many laundry factories. This gave birth to the enthusiasm of some manufacturers in my country to develop and produce towel folding machines. Maybe this is the reason why the production and sales of folding machines have been booming in recent years.

ST-DFLM: How does this machine align the edges? What is the edge-alignment error?

At fabric entry, there would be one pair of cloth guider to make fabric in middle of machine.

During folding the fabrics, there would be a pair of edge-alignment raster which will detect these two edges of folded fabrics, when these two edges is not in aligned position, the edge-alignment raster will move left or right to align these two edges. The edge-alignment error is less than 6mm.

ST-DFLM: what should i do to make sure the edge-alignment well before running the machine?

(1) The cloth guider at the inlet position will make the fabric in the center of the machine. Once it runs deviation, the cloth guider will correct it immediately.

(2) Adjust the Triangle Frame as per the actual situation.

(3) Adjust the Edge-alignment Photo Sensor along with the Fabric Limited Bar, make sure the photo sensor could detect the fabric edges.

(4) When feeding the fabric manually, make sure the two edges of fabric has been double folded very well.

The edge-alignment error is less than 6mm.

If you are interested in our double folding and sewing machine, please feel free to contact us. And you can also view our official website: https://www.suntech-machine.com/, we will have our professional service team to service you. Looking forward to hear from you.
