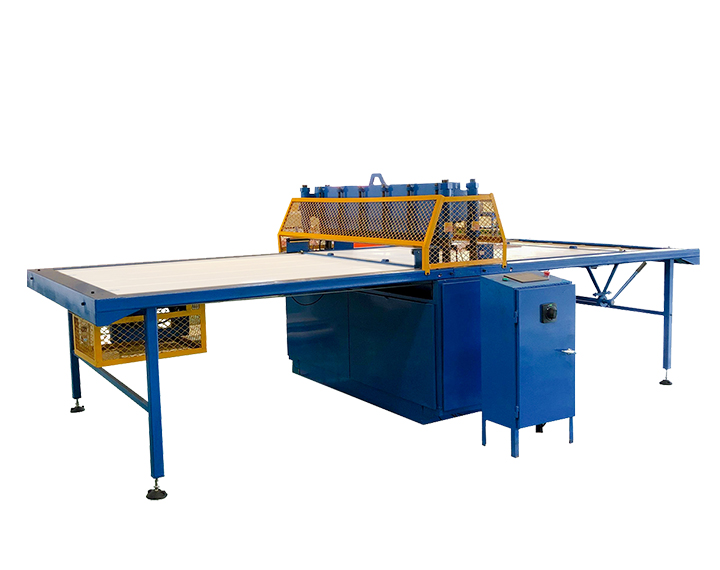

ST-ASCM Automatic Fabric Sample Cutting Machine is used to cut textile swatches for mass production. It is suitable for all types of fabrics as well as for leather, artificial leather, felt, carpet, etc.
● Effortless cutting of any fabric quality- far superior to hand operated machines.
● Precise and accurate thanks to right angle guide with milimeter graduation.
● Easy to operate, fast and powerful.
● Safe, computerized operated.
● Reliable and maintenance-free.
WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.
ST-ASCM Automatic Fabric Sample Cutting Machine:
|
Model |
ST-ASCM-1600 |
|
Cutting Blade Length |
1600mm |
|
Cutting Height |
80mm |
|
Max. Fabric Cutting Size |
1600mmx1600mm |
|
Min. Fabric Cutting Size |
25mmx25mm |
|
Cutting Blade Hardness |
HRC 63-65 |
|
Cutting Accuracy Error |
Less than 0.5mm |
|
Drive |
Electro-Mechanic |
|
Power Consumption |
5.5KW |
|
Machine Size |
4120mm(L)x1960mm(W)x1480mm(H) |
|
Electric Specs |
3 Phase-380V;50HZ(can be adjustable to suit for different countries) |
|
Remark |
Max. Cutting Size can be tailor-made to your requirements. |

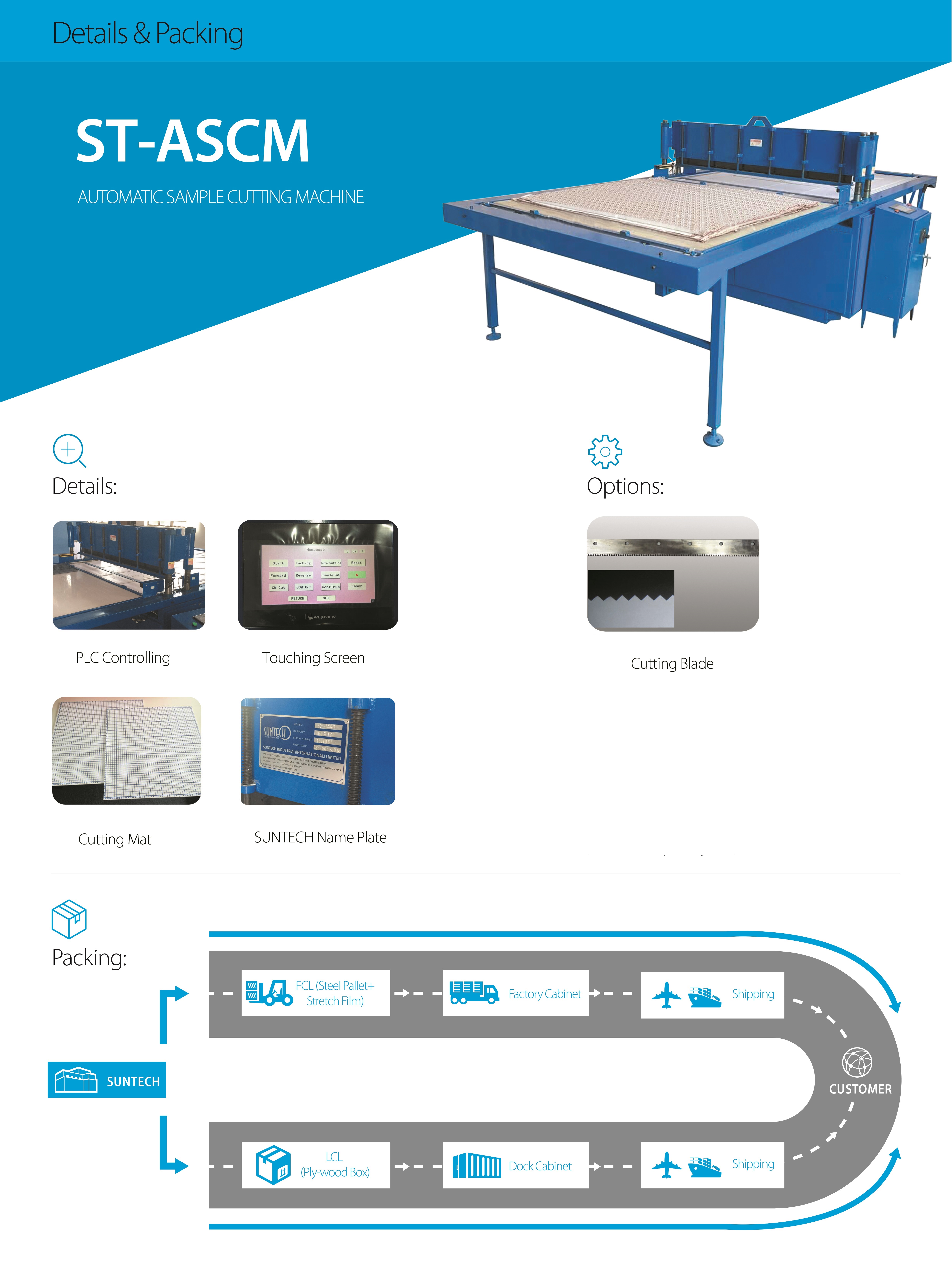

ST-ASCM Automatic Fabric Sample Cutting Machine:
1) PLC System & Touching Screen: Automatic Cutting and Easy Operation
2) High Cutting Accuracy: less than 0.5mm
3) Durable Cutting Blade: Made by Japanese imported alloy steel, by zig-zag or flat shape
4) Long Life Cutting Mat: A cutting mat is included for preventing the blade from damage during cutting operation
5) The modular built up construction permits a specific choice of equipment features such as infrared ray cut-line indicator, photoelectric safety device, hand lever double-feed-mechanism or fully automatic table feed.
