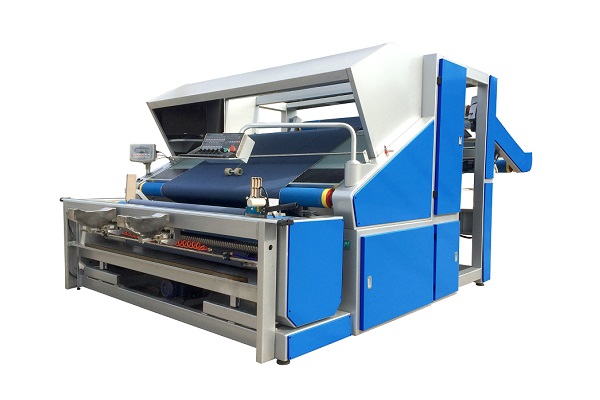

ST-KFIM Knitted Fabric Inspection Machine is suitable for a wide range of fabrics, from tension-sensitive elastomeric and lycra fabrics to stable woven,technical and upholstery materials; especially designed for A-frame entry with Conveyor Belt System.
● Fast and easily handled, requiring for one operator only
● Improve fabric quality
● Synchronize production process
● Provide objective quality reporting
● Reduce administration
WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.
AUTOMATED CAMERA INSPECTION SYSTEM COULD BE INSTALLED ON FABRIC INSPECTION MACHINES.
|
Model |
ST-KFIM |
|
Speed: |
5-40m/min |
|
Fabric Width: |
1.8m-4.0meters |
|
Standard Roll Diameter: |
500mm |
|
Dimensions(LXWXH) |
4300*2700*2000mm (for model ST-KFIM-220 only) |
|
Weight: |
1350kgs (for model ST-KFIM-220 only) |
|
Electric Specs: |
3Phase-380V;50HZ (can be adjusted to suit for different countries) |
|
Remark: |
Variable working width is possible and can be tailor-made to your requirement of processing needs. |
WARRANTY EXTENSION IS AVAILABLE AT SUNTECH THAN OTHER SUPPLIERS.
1) Auto Tensionless Checking: With unique mechanical and electrical device combination for making fabric feeding, delivery and re-winding synchronous.
2) Full Width Fabric Inspection: With 60 degree fixed angle inspection screen.
3) Curled Edges Controlling: With scroll roller system and de-curling system for perfect generation.
4) Accurate Length Counting: Counting error0.1m/km.
5) Accurate Fabric Edge Controlling: Edge alignment error 6mm
6) Consistent Roll Output: Roll hardness adjustable.
7) Available for different Fabric Input and Output Presentation, especially designed for A-
frame to Roll Checking, Roll to Roll, ect. Synchronize with production operation.
