Upright Double Folding Fabric Measuring Machine

20150519

OVERVIEW:

This is an upright fabric measuring machine used for double folding fabric. 72″ machine will double fold the fabric into 36″ boards. A 60″ machine will double fold fabric into 30″ boards. This is also a tube to tube, and inspection machine. One of the most popular machines on the market, reliable and efficient. This machine is refurbished in a “like-new” condition.
This article comes from Rick’s Measuring Machine Services, Inc. edit released



Konsan Fabric Inspection Machine

1The KONSAN Lap-Operating Fabric Inspection and Measurement Machines have been designed and produced in order to prevent problems and cost increases that may arise in sewing departments of apparel industry due to production faults in the fabric.

This fabric measuring and inspection machine is suited for tubular fabrics and lapping. It can handle rolls up to 300 lbs with a maximum roll diameter of 16″. It has multi-mode operation including roll-to-roll, roll-to-lap, lap-to-roll, & lap-to-lap.

When required the KONSAN Lap-Operating Type Fabric Inspection Machine is produced with edge following aligning photcells for obtaining the maximum use of fabric.

Illuminated bottom screen and illumination from above provides an easy control of fabric.

Operating Mode 1 : Roll to Roll (for the side-inside rolls)

Setting Point Choose
Loading Fabric Shown Below (Figure 1.0)
Operating Mode Selector Switch Normal Mode
Lapping Mode Arm Normal Mode
Feeding Rollers Direction Selector
Switch
Side-inside mode
Tension Adjustment Knob Between 2-5
Edge Alignment Photocells On the front group

2

Figure 1.0: Roll to Roll (for the side-inside rolls)

Operating Mode 2 : Roll to Roll (for the side-outside rolls)

Setting Point Choose
Loading Fabric Shown Below (Figure 1.1)
Operating Mode Selector Switch Normal Mode
Lapping Mode Arm Normal Mode
Feeding Rollers Direction Selector
Switch
Side-outside mode
Tension Adjustment Knob Between 2-5
Edge Alignment Photocells On the front group

3

Figure 1.1: Roll to Roll (for the side-outside rolls)

Operating Mode 3: Lap to Roll

Setting Point Choose
Loading Fabric Shown Below (Figure 1.2)
Operating Mode Selector Switch Normal Mode
Lapping Mode Arm Normal Mode
Feeding Rollers Direction Selector
Switch
**********
Tension Adjustment Knob Between 2-5
Edge Alignment Photocells On the front group

4

Figure 1.2: Lap to Roll

Operating Mode 4: Roll to Lap

Setting Point Choose
Loading Fabric Shown Below (Figure 1.3)
Operating Mode Selector Switch Lap Mode
Lapping Mode Arm Lap Mode
Feeding Rollers Direction Selector
Switch
**********
Tension Adjustment Knob Between 6-9
Edge Alignment Photocells On the Main Body

5

Figure 1.3: Roll to Lap

Operating Mode 5: Lap to Lap

Setting Point Choose
Loading Fabric Shown Below (Figure 1.4)
Operating Mode Selector Switch Lap Mode
Lapping Mode Arm Lap Mode
Feeding Rollers Direction Selector
Switch
**********
Tension Adjustment Knob Between 6-9
Edge Alignment Photocells On the Main Body

6

Figure 1.4: Lap to Lap

This article comes from JESSE J. HEAP & SON edit released

Fabric Inspection Machines

1 2
Check Master – Pile to Pile Check Master – Finish
3 4
Check Master- I Check Master -B

Efficient inspection of fabric defects in grey and finish fabrics.

Suitable for woven, Knits and lycra fabrics.

Tensionless movement of fabric on inspection table.

Full forward & reserve run of fabric.

Speed variable from 0 – 50 mtrs/ min.

Compact & uniform roll winding on tubes.

Straight & uniform roll winding through efficient selvedge guider.

Length measurement by reputed counter meter.

Available for different width of fabric.

Multiple input and output option possible.

Operator friendly, improves productivity, reduces labour.

This article comes from GAYATRI edit released

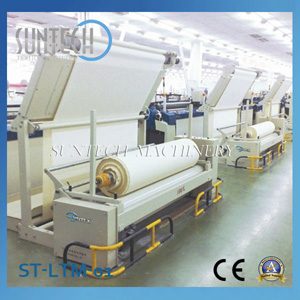

Loom Take-up Machine Batcher Winder (ST-LTM-01)

20150513

Product Description

Loom Take-up Machine(Batching Motion) is designed to attach all types of weaving machines to take up any type of woven, non-woven or knitted fabrics on the machine. It is also designed to give tight and compact rolls in the most elastic to heaviest fabrics such as industrial textiles.

* Ergonomically designed

* Fast and easily handled, requiring for one operator only

* Less fabric waste and increase efficiency

* Synchronize production process

* Reduce administration

FEATURES:

1). Various models available allow Batching of Fabric as well as with on-loom inspection

2). Automatic synchronization with the weaving machine

3). Positive tension adjustment allows precise selection for any fabric on any loom

4). Forward & Reverse(not full) movement of fabric

5). Operator’s platform with anti-fatigue material and toe-guards

6). Crease free winding of fabric

7). Compact rolls due to differential ratio of the batcher rolls

8). Option-Accurate Length Measuring Giving Accuracy of ± 0.01%

9). Option-Semi-automatic doffing device( Pneumatic Roll Ejection Device)

10). Option-Automatic Fabric & Selvedge Shifter for Thick Selvedges

Speed: Synchronized with Weaving Machines-Standard0-1.15m/min
Fabric Width: 1.8-4.0m
Batching Diameter Max.: 1500mm(Standard:1200mm)
Edge-alignment Error: ≤5mm
Electric Specs: 3 phase-380V;50HZ(can be adjusted to suit for different countries)
Remark: Variable working width is possible and can be tailor made to your requirements of processing needs.

This article comes from made-in-china edit released
